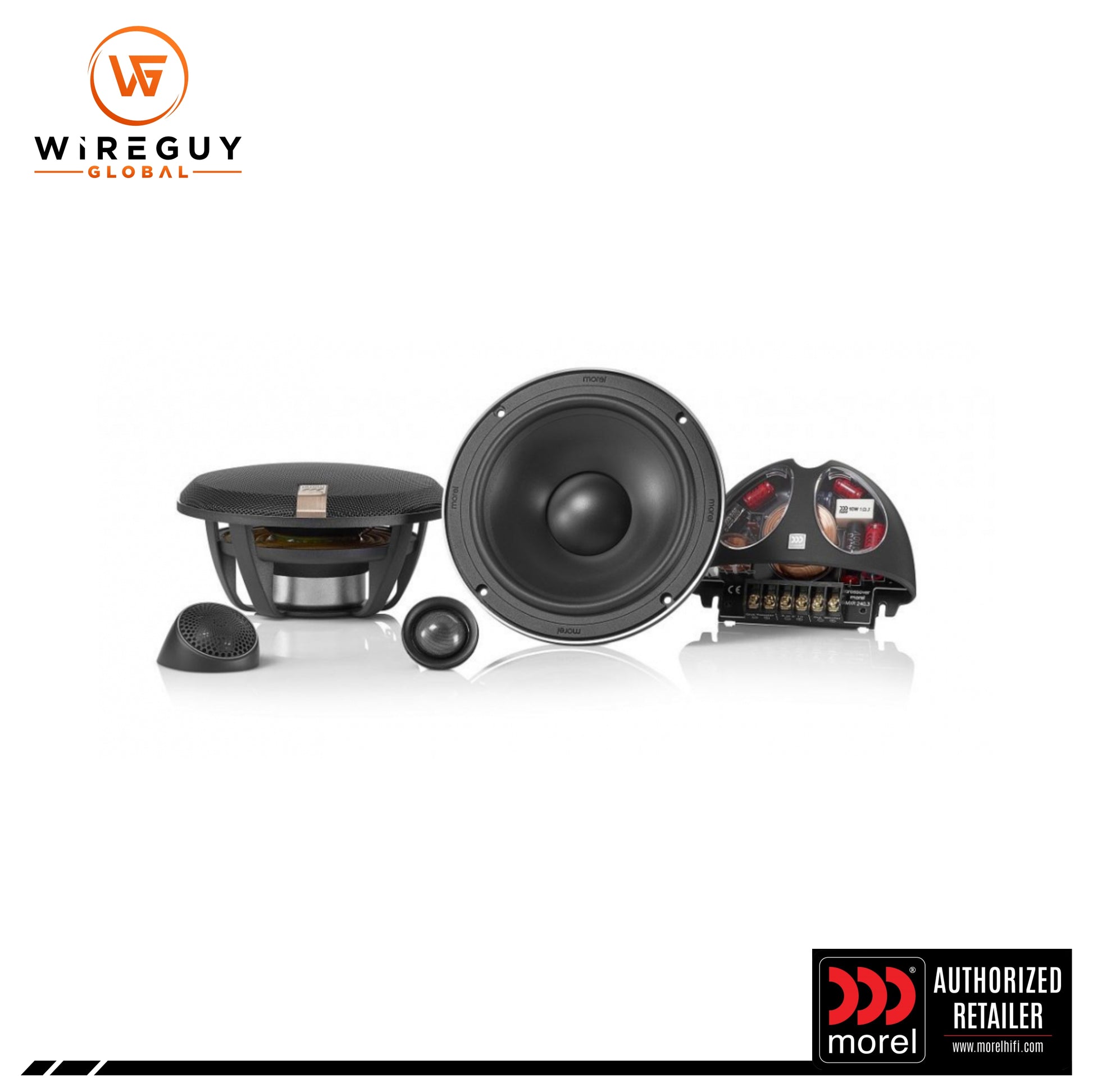

Morel Hybrid 6.5" 2-Way Component Split System

FREE SHIPPING available for this item with any payment method!

Morel Hybrid 6.5" 2-Way Component Split System: High-Fidelity Sound Performance

The Morel Hybrid 6.5" 2-Way Component Split System is a perfect blend of Morel’s legendary craftsmanship, engineering, and innovation. Designed to deliver an exceptional high-fidelity listening experience, this system captures the raw emotion of live music, offering a refined balance of resolution, power, and efficiency for any music genre.

Key Features:

Next-Generation Hybrid Design: Now in its fifth generation, the Hybrid system pushes the boundaries of high-fidelity speaker design, with improved resolution, power, and efficiency. It includes both 2-way and 3-way system options, along with Integra point source (coaxial) solutions to meet virtually any installation requirement.

Controlled Acoustic Resistance (C.A.R. Filter™): The C.A.R. Filter™ optimizes acoustic loading by controlling airflow within the driver, improving power handling by 30%. This results in better control over cone movement, enhancing bass dynamics and providing deep, distortion-free bass.

EVC Motor: Featuring EVC™ technology, the Hybrid system’s voice coils are up to three times larger than conventional loudspeakers, improving heat dissipation and power handling. The EVC™ motor’s highly efficient design, which places the magnetic motor system inside the voice coil, results in enhanced linearity, reduced distortion, and increased overall efficiency.

Handcrafted Acuflex Soft Dome: The Acuflex™ diaphragm, a specially engineered damping compound, is hand-applied to the soft dome tweeters. This improves rigidity and damping, significantly enhancing the clarity, bandwidth, and smooth frequency response across the midrange and high frequencies.

Hexatech Aluminum Voice Coil: The Hexatech™ voice coil, made from 100% aluminum wire shaped like a honeycomb, increases efficiency by up to 20%. Its lightweight design improves transient response, contributing to the Hybrid system’s precise and fast sound reproduction.

Hybrid Magnet Motor: The combination of ferrite and neodymium magnets creates a compact, lightweight motor system that delivers up to four times the power of conventional designs. This provides high efficiency and flawless sonic performance, even in small drivers.

MXR Crossover: The Morel MXR Crossover Resolution system uses high-quality components to ensure drivers integrate seamlessly. It minimizes signal loss, preserving the tonal balance and natural sound presentation of the system for superior overall sound quality.

Grilles Included: The system comes with custom-designed grilles to protect the speakers while maintaining aesthetic appeal.

Specification:

• Configuration: 2-Way Split System
• Driver Sizes:
  • Woofer: 165mm (W)
  • Tweeter: 69mm (H)
• Total Driver Height: 17mm
• Voice Coil Size: 54mm (W), 28mm (H)
• Frequency Response: 35 Hz - 25,000 Hz
• Crossover: External MXR240.3 Crossover
• Power Handling: 140 WRMS, 600 W Max.
• Sensitivity: 91 dB
• Impedance: 4 Ohms
• Speaker grilles: Included

What's Included:

• Morel Hybrid 6.5" 2-Way Component Split System
• Speaker grilles

Installation:

To install the Morel Hybrid 6.5" 2-Way Component Split System, start by removing the old speakers and disconnecting the wiring. Mount the woofers in the speaker openings, using adapter rings if needed. Position the tweeters in an optimal location, such as the dashboard or A-pillar, for the best sound imaging. Connect the crossover to the woofers and tweeters, ensuring correct polarity (positive and negative) for each. Secure all components using the provided mounting hardware. After installation, power on the system to test the sound quality before reassembling any panels. Always follow the manufacturer’s instructions for best performance.
