Morel Hybrid 6.5" 3-Way Component Split System with Crossover

FREE SHIPPING available for this item with any payment method!

Morel Hybrid 6.5" 3-Way Component Split System with Crossover: Exceptional Clarity, Power, and Precision

Embodying Morel's legendary craftsmanship and innovation, the Hybrid 6.5" 3-Way Component System delivers high-fidelity audio with stunning clarity and dynamics. Designed to evolve with the needs of discerning audiophiles, this system offers a refined listening experience that brings the raw emotion of live music to your vehicle.

Key Features:

Refined Hybrid Design: In its fifth generation, the Hybrid Series takes Morel's tradition of excellence further, delivering a balance of resolution, power, and efficiency that’s optimized to exceed expectations across all music genres. Available as a 2-way, 3-way, and Integra point source system, the Hybrid 6.5" 3-Way is a versatile solution for audiophiles who demand the best from their car audio setup.

C.A.R. Filter™ Technology: The Controlled Acoustic Resistance (C.A.R. Filter™) improves bass dynamics by controlling airflow within the driver, mimicking the effects of a speaker cabinet while enhancing power handling by 30%. This results in greater control over cone movement and more dynamic bass performance.

DPC Cone: Morel's Damped Polymer Cone (DPC) is a direct derivative of the renowned Morel cones, offering high self-damping characteristics. This ensures exceptional sound quality without harshness or coloration, contributing to a natural and accurate audio experience.

EVC™ Motor Technology: The External Voice Coil (EVC™) design features voice coils up to three times larger than conventional designs. This increases heat dissipation, power handling, and linearity while eliminating stray magnetic flux. The result is over 90% greater efficiency, compact size, and precise performance.

Acuflex™ Soft Dome Tweeter: The Acuflex™ damping compound applied to the tweeter improves rigidity and damping, enhancing clarity and extending bandwidth. This controlled flexing helps produce a smooth frequency response with minimal distortion.

Hexatech™ Aluminum Voice Coil: Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil reduces air gaps and increases efficiency by up to 20%. This lightweight design contributes to the extraordinary transient response, offering fast, accurate reproduction of your music.

Hybrid Magnet Motor System: Combining a ferrite magnet with a powerful neodymium magnet, the Hybrid Motor System provides four times the power of conventional designs. This compact, lightweight motor system ensures flawless performance, even in smaller drivers.

MXR Crossover System: The Morel Crossover Resolution (MXR) system integrates high-quality components to ensure smooth driver integration and preserve tonal balance. The external MXR300.4 crossover is designed to enhance sound quality, creating a cohesive and immersive listening experience.

Lotus Grilles Included: The Lotus Grilles, designed with Morel's unique acoustical considerations in mind, are included for protection and aesthetic appeal.

Specification:

• Configuration: 3-Way Component Split System
• Driver Size: 165mm (Woofer), 69mm (Midrange)
• Voice Coil Size: 54mm (Woofer), 28mm (Midrange)
• Frequency Response: 35 Hz – 25,000 Hz
• Crossover: External MXR300.4 Crossover (Included)
• Power Handling: 140W RMS, 600W Max
• Sensitivity: 91 dB at 2.83V
• Impedance: 4 Ohms
• Speaker Grilles: Included (Lotus Grilles)

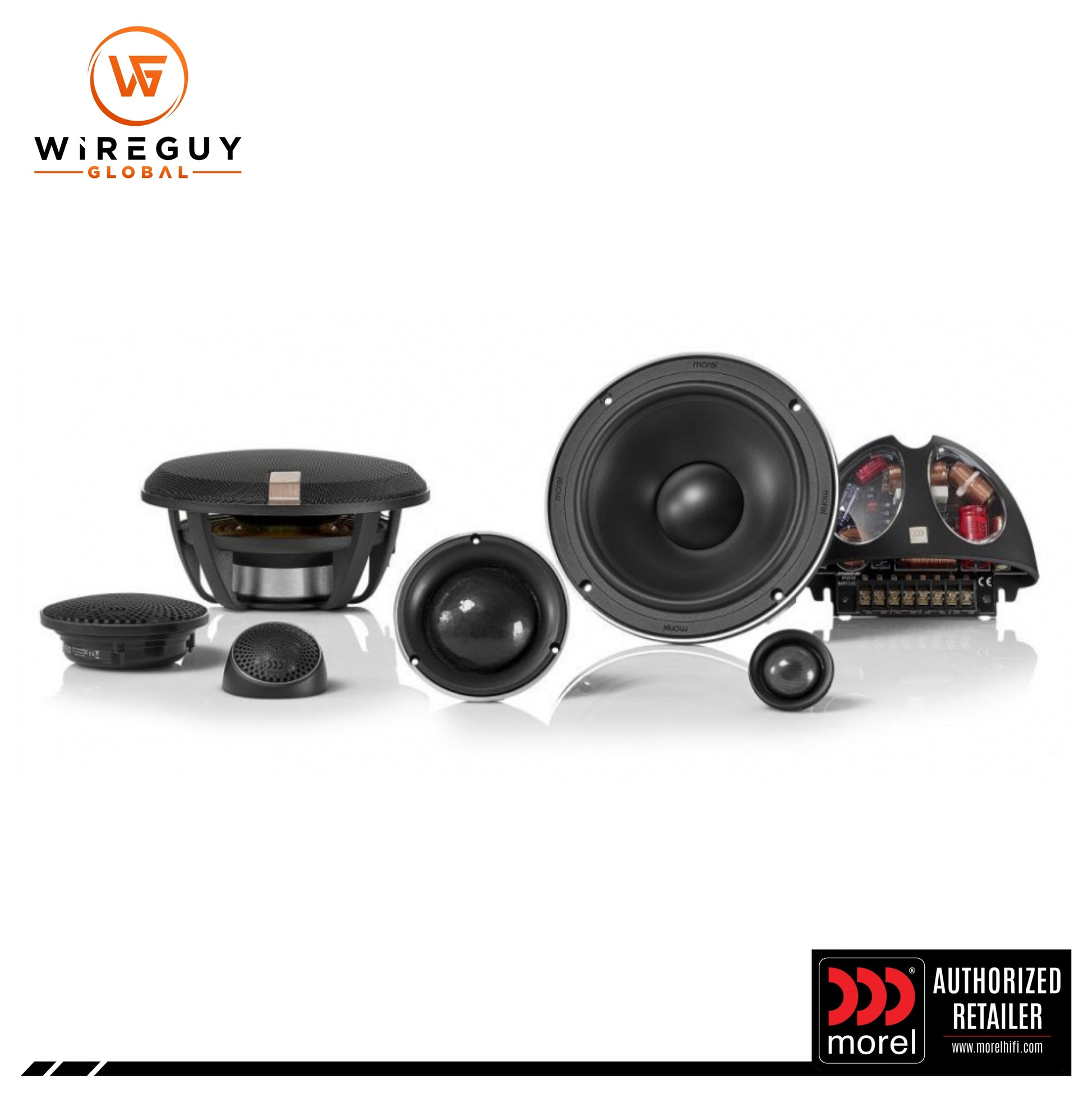

What's Included:

• Two Hybrid 6.5" Woofer Components
• Two Midrange Drivers
• Two Acuflex Coated Silk Dome Tweeters
• External MXR300.4 Crossover
• Lotus Grilles
• Mounting Hardware (Screws and Clips)
• Installation Guide

Installation:

To install the Morel Hybrid 6.5" 3-Way Component Split System with Crossover, start by removing the old speakers and disconnecting the wiring. Mount the woofers in the existing speaker locations or use adapter rings if needed. Position the midrange drivers and tweeters in an optimal location, typically on the dashboard or A-pillar, for the best sound staging. Connect the crossover to each component (woofer, midrange, and tweeter), ensuring correct polarity. Secure all components with the provided mounting hardware. After installation, power on the system to test sound quality before reassembling panels. Always follow the manufacturer's instructions for optimal results.
