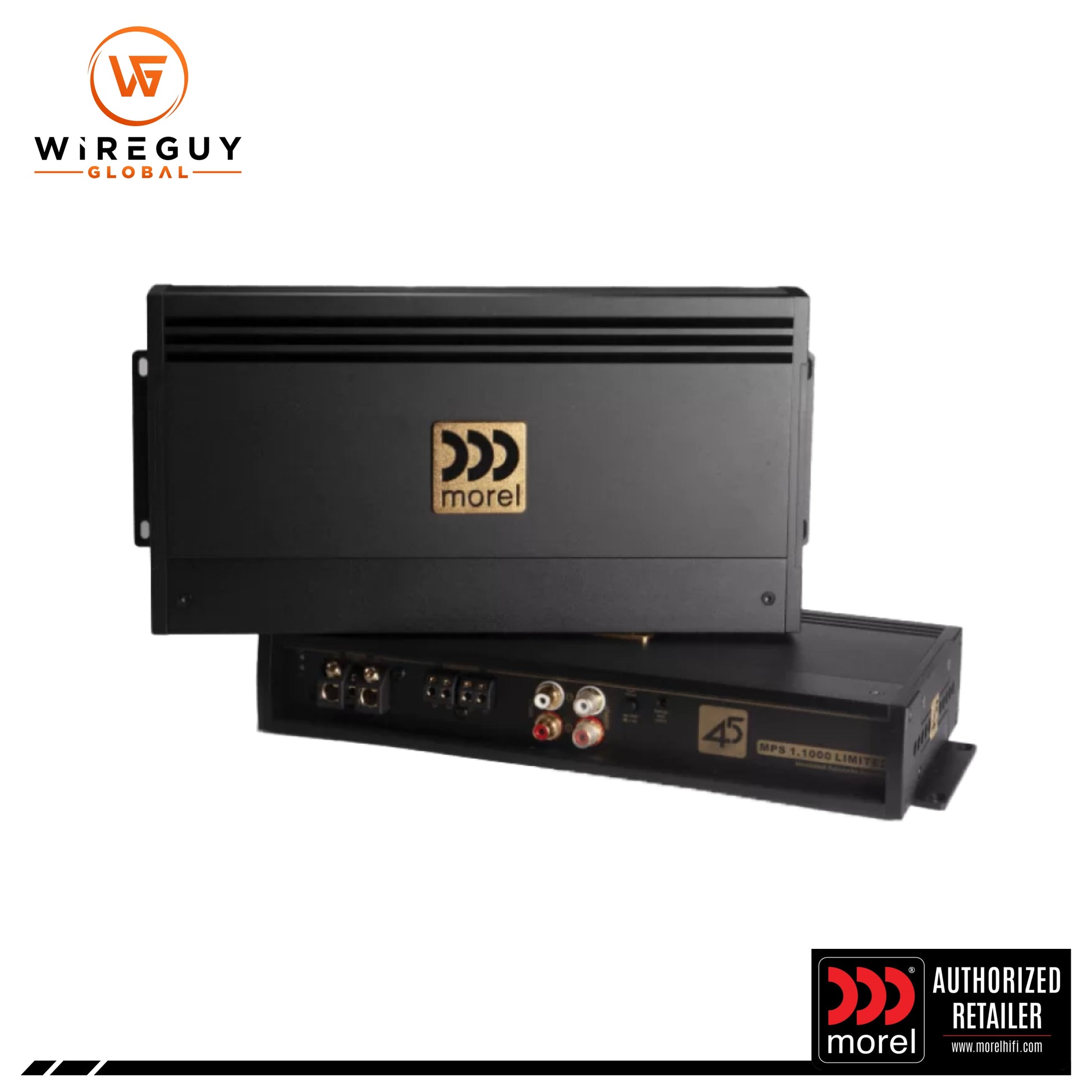

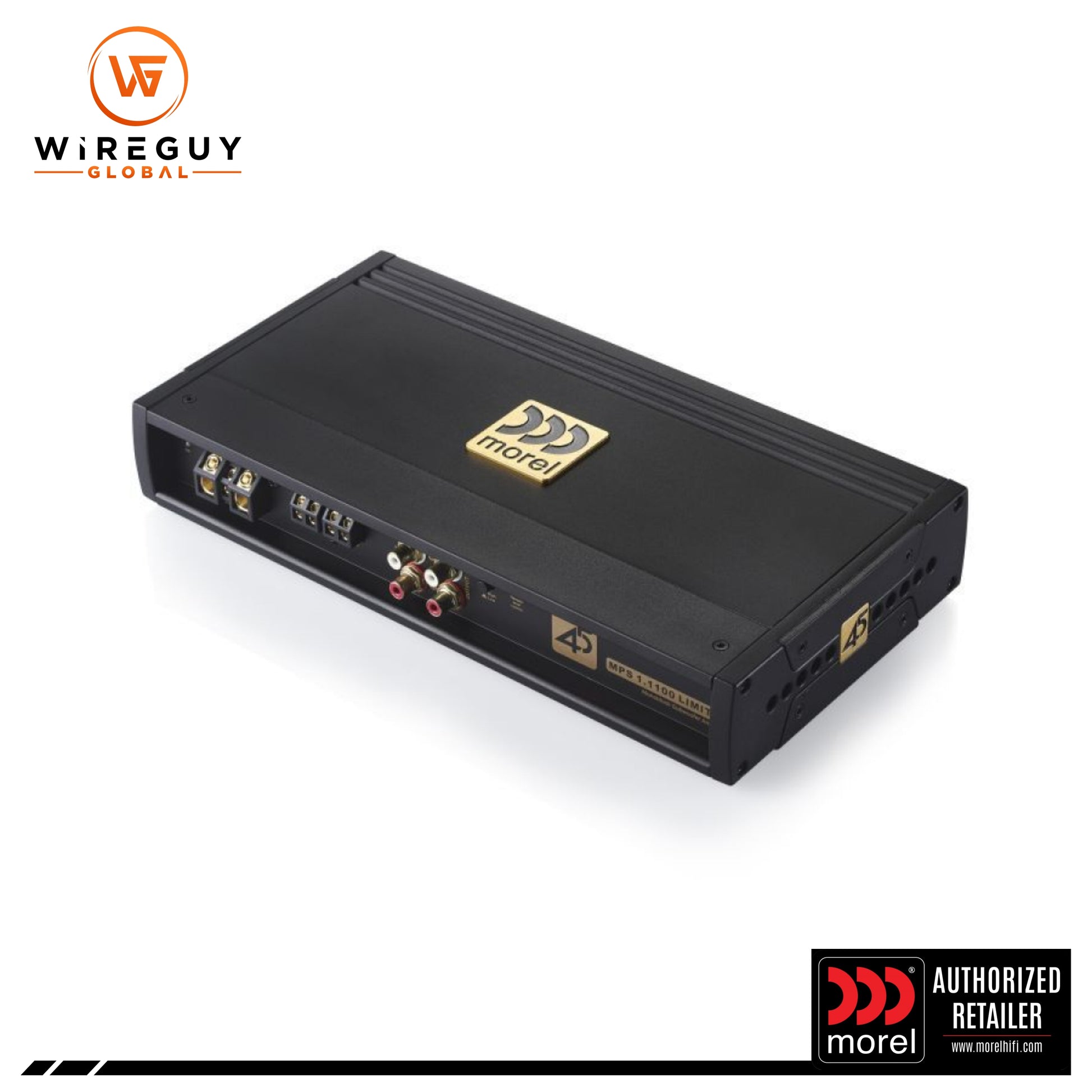

Morel Limited Mono Class-D Amplifier - 1100W @ 2 OHM

FREE SHIPPING available for this item with any payment method!

Morel Limited Mono Class-D Amplifier - 1100W @ 2 OHM: Power Meets Precision

Designed for true audiophiles who demand both fidelity and power, the Morel Limited Mono Class-D Amplifier delivers exceptional performance in a sleek and powerful package. Developed to celebrate Morel’s 45th anniversary, this amplifier combines cutting-edge technology and superior craftsmanship to ensure optimal sound quality and drive for your audio system.

With audiophile-grade components and advanced features, the MPS Limited Amplifier is built to push your Morel speakers to their maximum potential, delivering a dynamic and distortion-free audio experience. Whether you’re looking to power a subwoofer or integrate it into a high-end car audio system, this amplifier will elevate your setup with unmatched clarity and power.

Key Features:

Audiophile-Grade Components: The amplifier uses high-quality Burr-Brown OPA2134 op-amps, Rubicon and WIMA ultra-low ESR capacitors, Sanken output transistors, and gold-plated connections for superior sound quality and reliability.

Noise-Eliminating Balanced Line Inputs: These inputs accept signals up to 20 volts, ensuring minimal noise interference for a clean, clear audio signal.

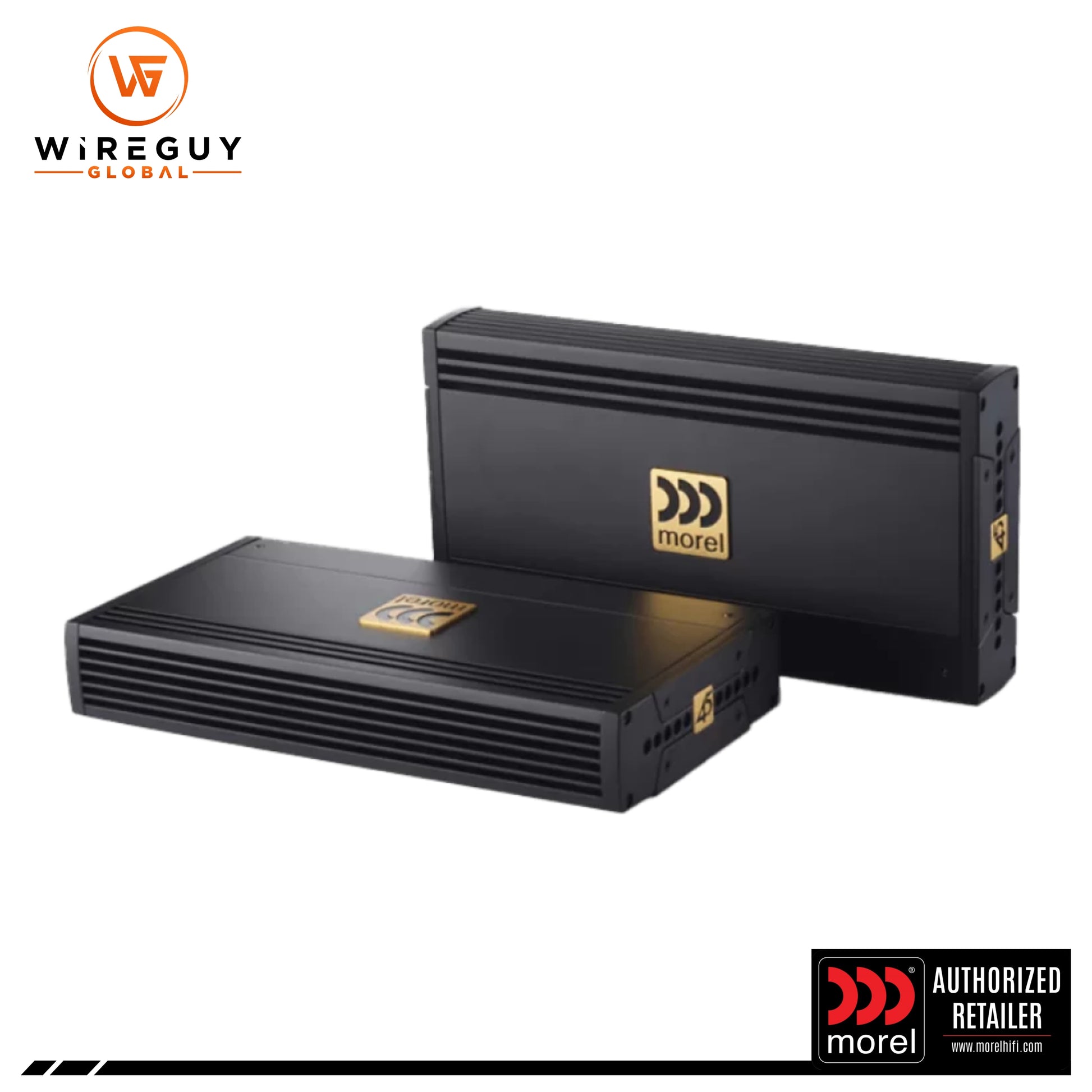

Versatile Mounting Options: Removable side panel plates allow for unique mounting configurations and enable the amplifiers to be stacked together to save space while maintaining performance.

Exceptional Power and Performance: The MPS Limited amplifier is engineered to deliver up to 1100W RMS at 2 ohms, providing more than enough power to drive any Morel system to its maximum potential.

Subwoofer Control: Featuring a 40-220 Hz low-pass filter and sub-level control (0-20 dB), along with selectable subsonic filters (Off/25/35 Hz), allowing precise tuning for optimal bass performance.

Pass-Through Pre-Amp Output: For flexible system integration, this amplifier includes a pass-through pre-amp output, allowing you to easily link to other components in your audio setup.

Specifications:

• Model: MPS1.1100 (Limited Edition)
• Power (4 Ohms RMS): 1 x 650W
• Power (2 Ohms RMS): 1 x 1100W
• Class: D
• Damping Factor: >200
• Frequency Response (Sub): 10-220 Hz
• Signal-to-Noise Ratio: 102 dB
• Select Input Range: Yes (x1 / x4)
• Low-Pass Filter (Sub): 40-220 Hz
• Sub Level Control: Yes, 0-20 dB
• Subsonic Filter: Off/25/35 Hz
• Pass-Through Pre-Amp Output: Yes
• Dimensions (H x W x L): 51mm x 170mm x 322mm

What’s Included:

• 1x Morel Limited Mono Class-D Amplifier

Installation:

To install the Morel Limited Mono Class-D Amplifier, mount it securely in your vehicle’s audio system, ensuring proper ventilation and placement for optimal performance. The amplifier’s compact design allows flexible installation options, and the removable side panels enable stacking with other amplifiers to minimize space usage. Make sure to integrate the amplifier with a compatible subwoofer and connect the balanced line inputs for clean signal transfer.
