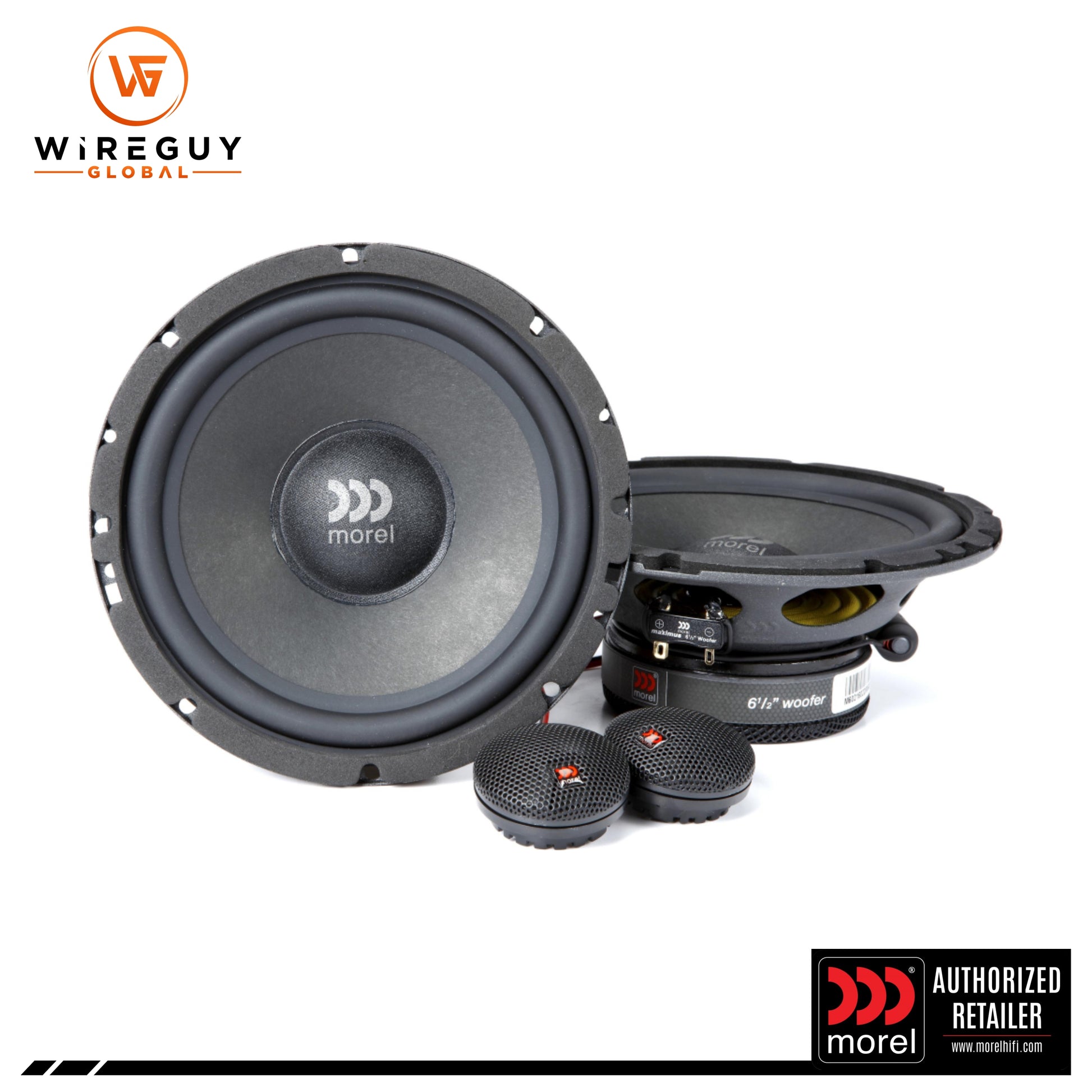

Morel Maximo High Efficiency 6.5" 2-Way Component Split System - 60W RMS

FREE SHIPPING available for this item with any payment method!

Elevate Your Car Audio with the Morel Maximo High Efficiency 6.5" 2-Way Component Split System - 60W RMS

The Morel Maximo High Efficiency 6.5" 2-Way Component Split System is designed to deliver premium sound quality with high sensitivity and exceptional bass impact, making it the ideal choice for upgrading your car’s factory audio system. With 60W RMS and an impressive sensitivity of 94 dB, the Maximo system ensures dynamic sound performance, even when driven directly by your factory stereo. For those looking to further enhance their audio experience, the Maximo can also be paired with an aftermarket amplifier for even greater power and performance.

Key Features:

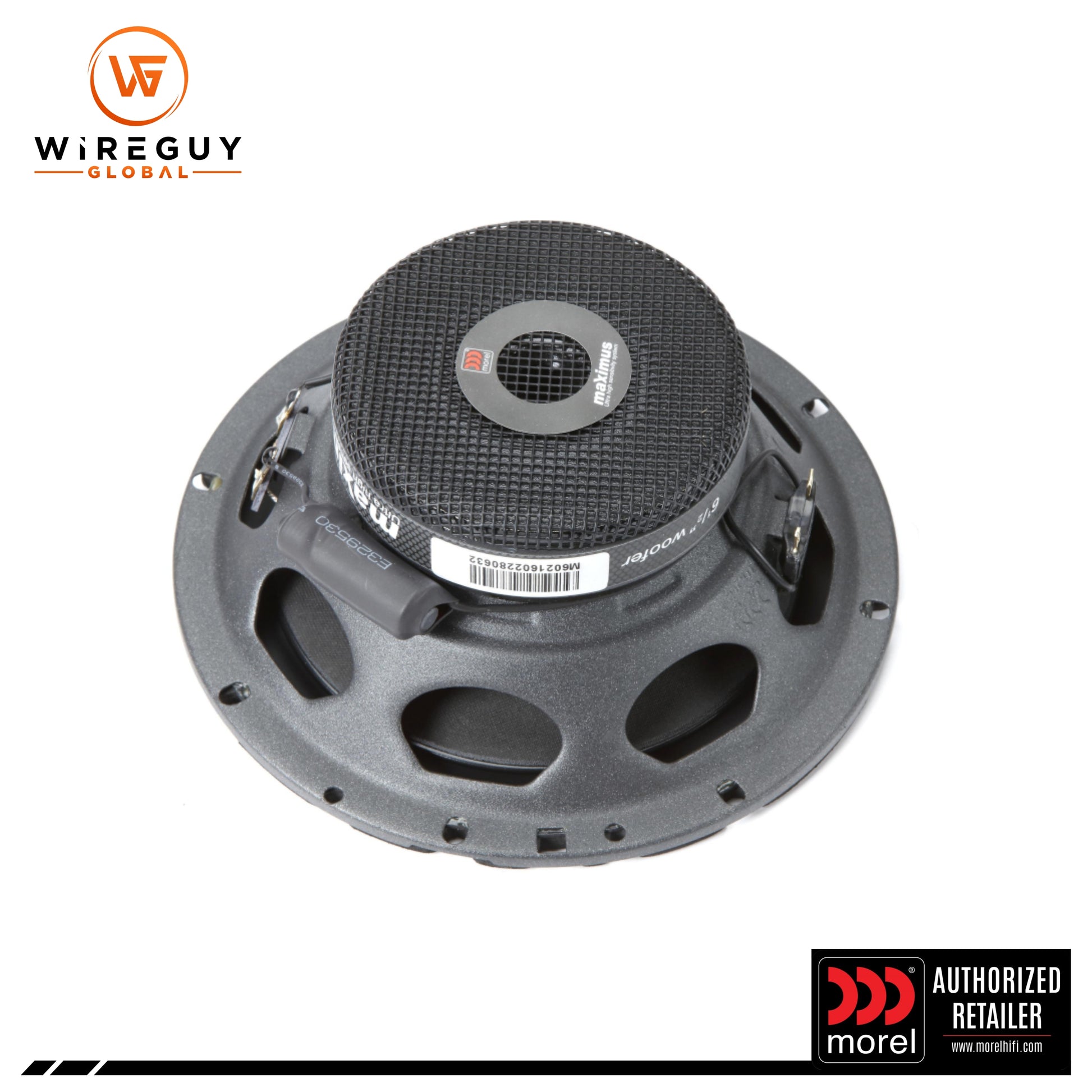

Re-engineered Woofer for Enhanced Performance: The Maximo 602 V2 features a newly developed woofer with a highly efficient hybrid magnet motor and improved suspension. This upgrade results in deeper, more impactful bass and a dynamic midrange, while also improving power handling by 50%.

Hybrid Magnet Motor for Compact Power: The hybrid magnet system combines a ferrite magnet with a powerful neodymium magnet, creating a motor that is up to four times more powerful than conventional systems of the same size. This compact motor design ensures flawless performance, even in smaller drivers, converting more amplified power into high-quality sonic energy.

MXR Crossover for Seamless Integration: The MXR crossover system combines high-quality components to ensure smooth integration between the woofer and tweeter, with minimal signal loss. This preserves the natural tonal balance, ensuring clear, accurate sound reproduction across all frequencies.

Paper Composite Cone for Natural Sound: Morel’s advanced paper composite cones are ultra-lightweight, offering excellent performance with minimal distortion. This time-tested material provides a natural, well-balanced sound, making it an ideal pairing for the efficient motor and voice coil system in the Maximo.

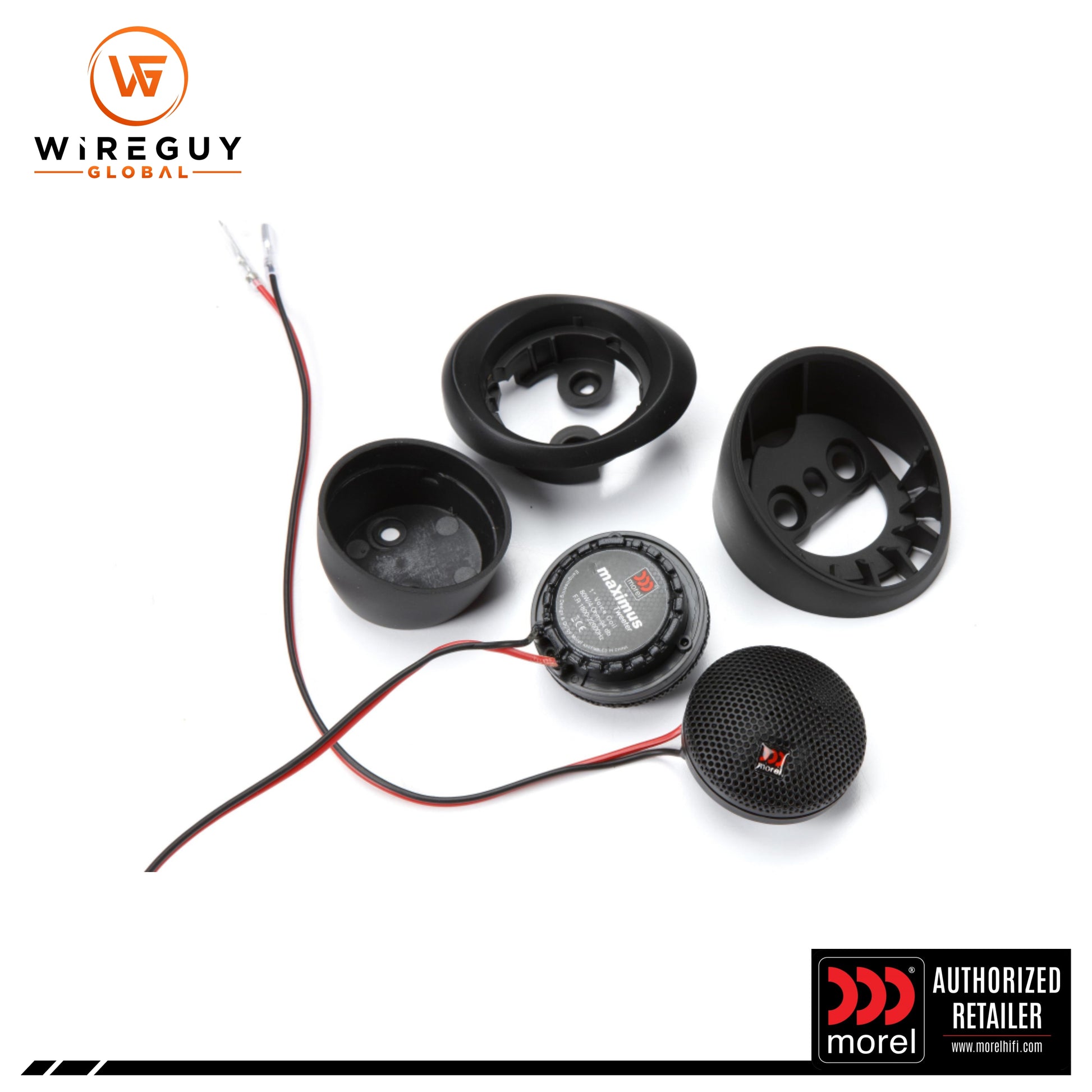

Versatile Tweeter Mounting Solutions: The Maximo system includes multiple mounting options for tweeters, making it easy to position them for optimal sound performance in any vehicle. Whether you prefer flush, angled, or surface mounting, the included solutions ensure perfect placement for superior audio clarity.

Easy Installation: The included in-line crossover simplifies installation by directing the correct frequencies to the tweeter. Additionally, Morel provides all the necessary mounting solutions and wiring, making the setup process quick and hassle-free.

Specifications:

• Nominal Impedance: 4 ohms
• Power Handling (RMS): 90W (180W Max.)
• Sensitivity: 94 dB at 2.83V
• Frequency Response: 60 Hz - 22,000 Hz
• Voice Coil Diameter: 30mm (W), 25mm (H)
• Magnet System: Hybrid magnet system with Neodymium
• Woofer Mounting Depth: 63mm (W), 20mm (H)
• Speaker Grilles: Not Included (Sold Separately)

What’s Included:

• 2x Woofers
• 2x Tweeters (with attached 10" length of speaker wire)

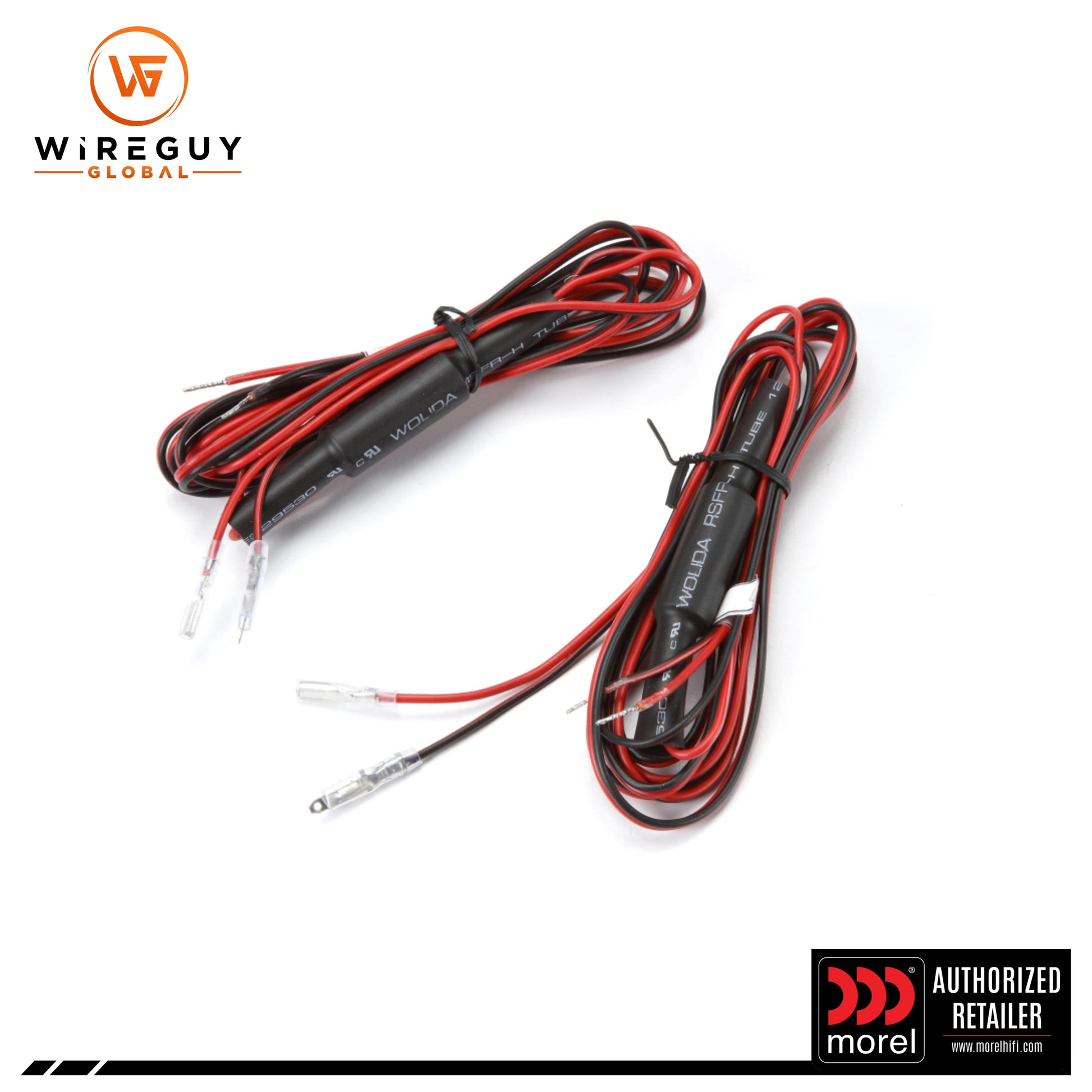

• 2x 78" Lengths of tweeter wire with in-line crossovers
• 2x Mesh tweeter grilles (installed)
• 2x Oval flush mount tweeter housings (with tweeters installed)
• 2x Flush mount brackets
• 2x Large angled surface mount tweeter housings
• 2x Small angled surface mount tweeter housings
• 12x 1" Screws
• 8x Speed clips
• 2x 0.187" Crimp-on female quick slides
• 2x 0.110" Crimp-on female quick slides
• 2x 0.187" Quick slide insulating covers
• 2x 0.110" Quick slide insulating covers
• Installation guide
• Morel window sticker

Installation:

To install the Morel Maximo High Efficiency 6.5" 2-Way Component Split System, begin by selecting the optimal mounting locations for both the woofers and tweeters. The woofers typically mount in the door or another speaker enclosure, while the tweeters can be placed at ear level for the best sound dispersion. Disconnect the vehicle’s battery before starting the installation. Secure the woofers in place, ensuring they are properly mounted and fastened. Position the tweeters in an ideal location using the provided mounting solutions. Run speaker wire from the amplifier or factory radio to the components, ensuring correct polarity for the connections. Install the in-line crossover and wire it to the tweeters and woofers as directed. Reconnect the battery and test the system to ensure proper functionality. Once confirmed, secure all components, reassemble the vehicle panels, and enjoy the enhanced sound quality of your Morel Maximo system!
