Morel Maximo Ultra 6.5" 3-Way Component Split System

FREE SHIPPING available for this item with any payment method!

Morel Maximo Ultra 6.5" 3-Way Component Split System: Premium Full-Range Audio

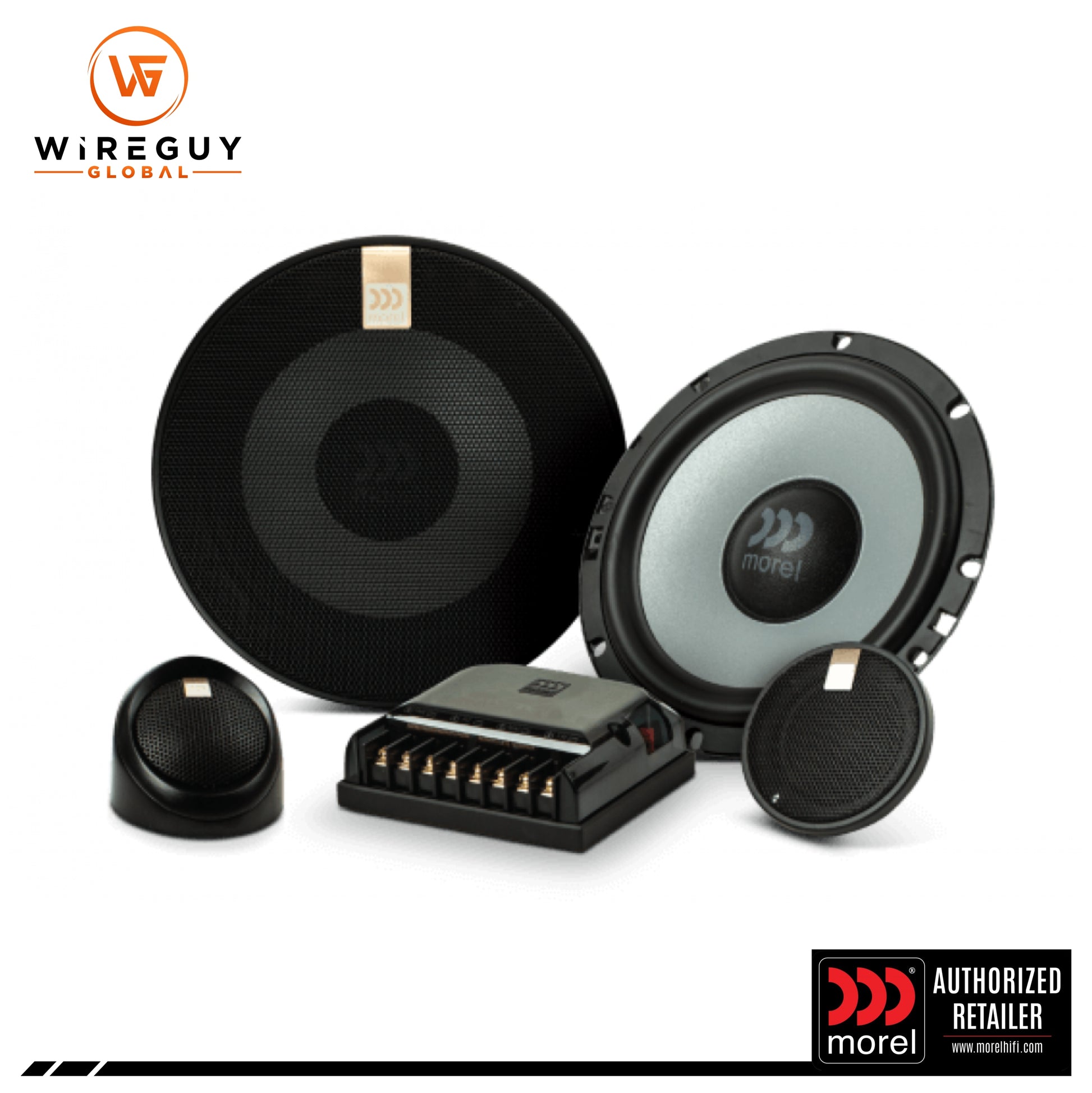

The Morel Maximo Ultra 603 component speaker system offers exceptional full-range sound, combining innovative technologies with Morel's signature high-performance design. With a treated 6-1/2" paper composite woofer and a separate 1" soft dome tweeter, this system delivers impressive sound quality, setting new standards in its class.

Key Features:

High-Performance Design: The Maximo Ultra line benefits from Morel's award-winning engineering, designed for those who demand musical accuracy and high-quality sound. This 3-way system includes cutting-edge technologies and design innovations, making it perfect for integration with factory locations and head units.

Tweeter: The 25mm (1″) soft dome tweeter incorporates Morel’s external voice coil technology (EVC™), offering remarkable power handling and low distortion. This new tweeter design ensures clear, distortion-free high frequencies, providing an enjoyable musical experience. Its four mounting options guarantee effortless and flexible installation.

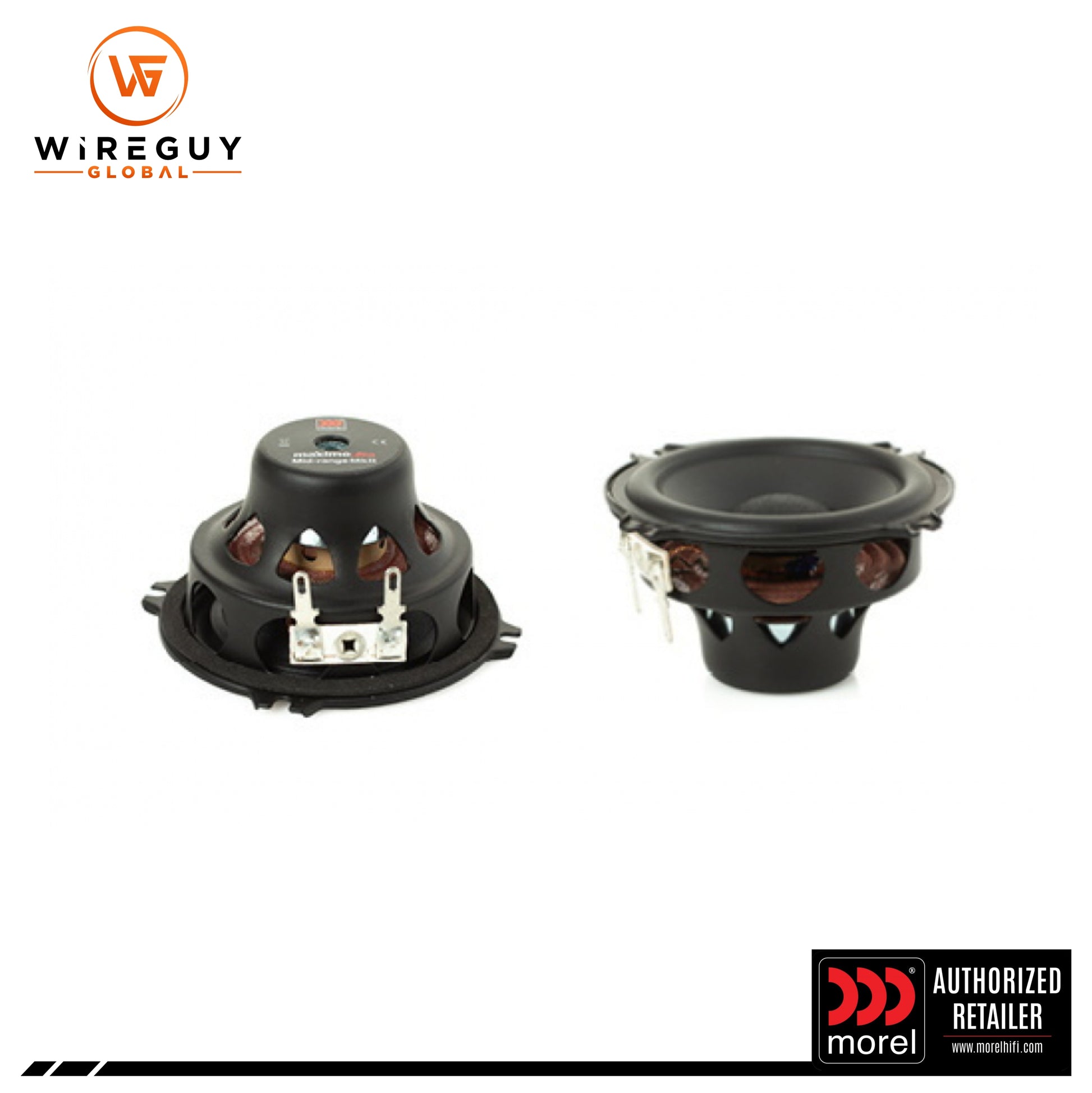

Midrange: Featuring a 2.5" premium wide-range midrange, the Maximo Ultra delivers rich, detailed midrange sound. The powerful double Neodymium magnetic system, combined with a full Copper sleeve, ensures smooth frequency response and low distortion. Compact yet powerful, it brings depth and warmth to your audio.

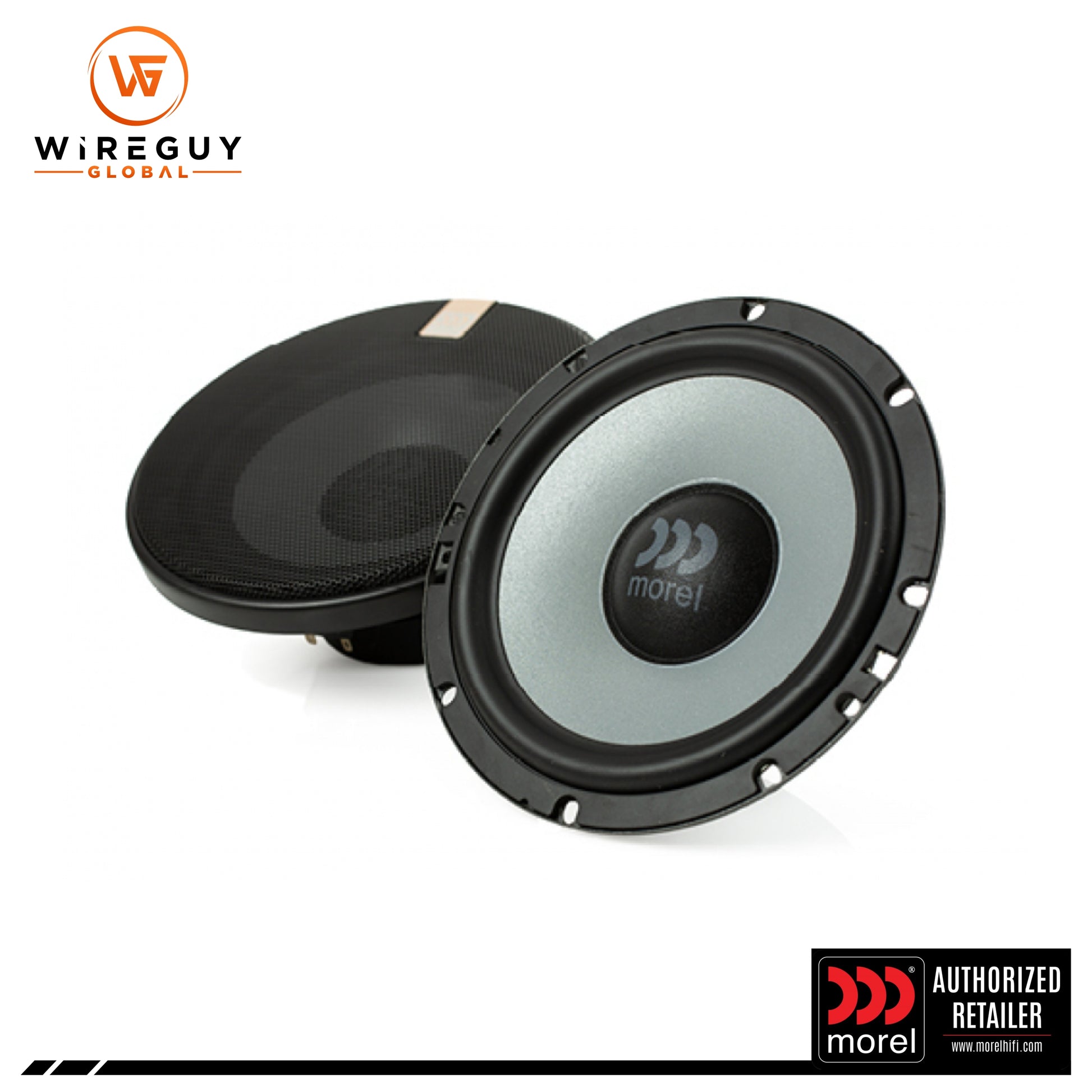

Woofer: The 6-1/2" woofer is engineered with a high-grade Ferrite magnet motor, providing increased magnetic energy and improved power handling. The treated paper cone and computer-modeled suspension ensure highly linear movement during low and midrange frequencies, reducing distortion and enhancing bass dynamics.

Crossover Network: Built to handle higher power, the 3-way passive crossover network uses premium components that minimize component saturation. This design allows the speakers to perform at their fullest potential without premature distortion, ensuring consistent and powerful sound reproduction.

Grilles Included: The system includes grilles to protect the speakers and complement their high-end performance.

Specification:

• Configuration: 3-Way Split System
• Driver Sizes:
  • Woofer: 165mm (W)
  • Midrange: 63.5mm (M)
  • Tweeter: 69mm (H)
• Frequency Response: 50 Hz - 20,000 Hz
• Crossover: 3-Way Passive
• Power Handling: 100 WRMS, 180 W Max.
• Sensitivity: 90.5 dB
• Impedance: 4 Ohms
• Speaker Grilles: Included

What's Included:

• Morel Maximo Ultra 6.5" 3-Way Component Split System
• Speaker grilles

Installation:

To install the Morel Maximo Ultra 6.5" 3-Way Component Split System, start by removing the existing speakers and disconnecting the wiring. Mount the woofers in the speaker locations, using adapter rings if necessary. Position the midrange drivers and tweeters in optimal locations, such as the dashboard or A-pillar, for the best sound staging. Connect the included crossover to the woofers, midrange, and tweeters, ensuring correct polarity (positive and negative). Secure all components with the provided hardware. Once installed, power on the system and test for optimal sound quality before reassembling any panels. Always follow the manufacturer’s instructions for best results.
