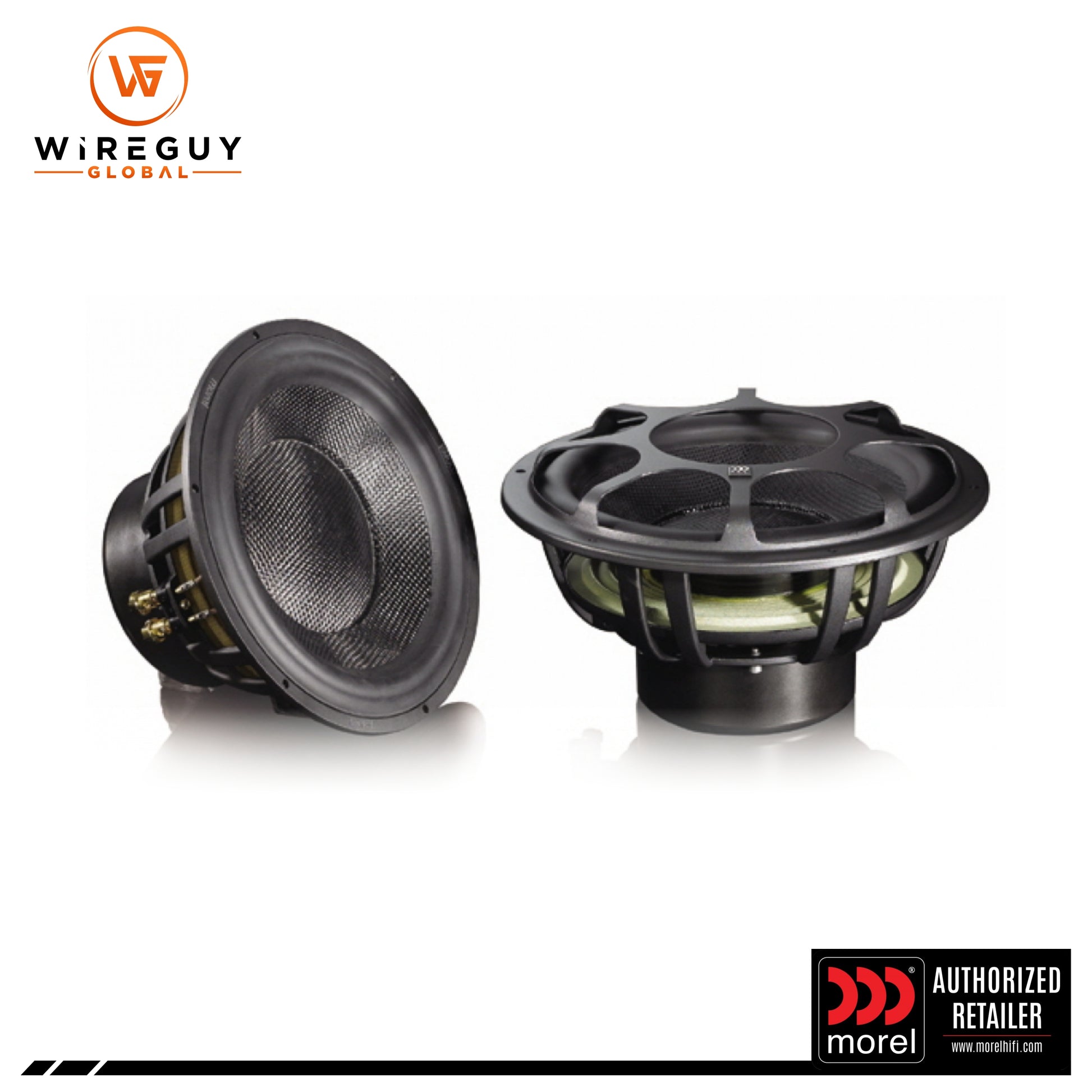

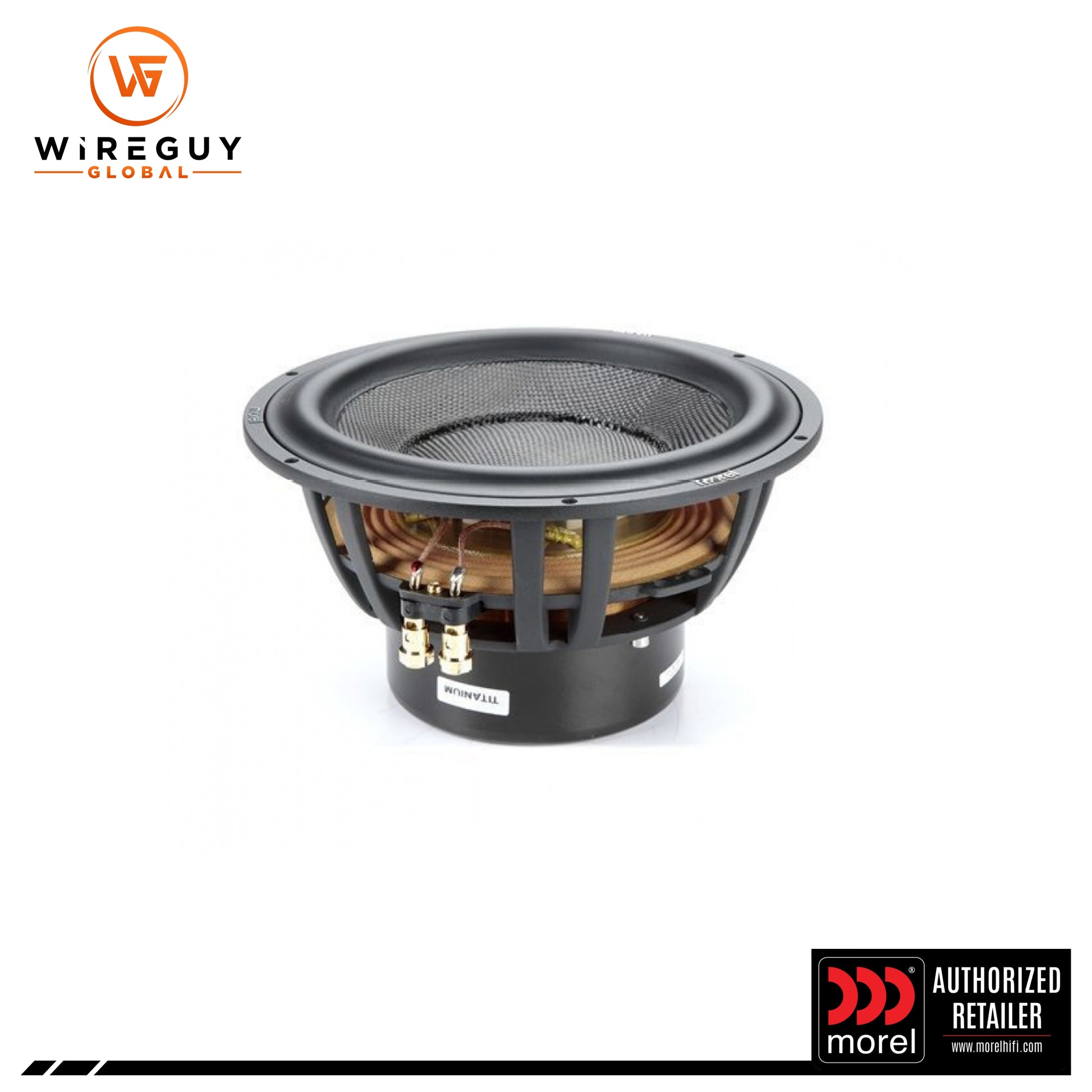

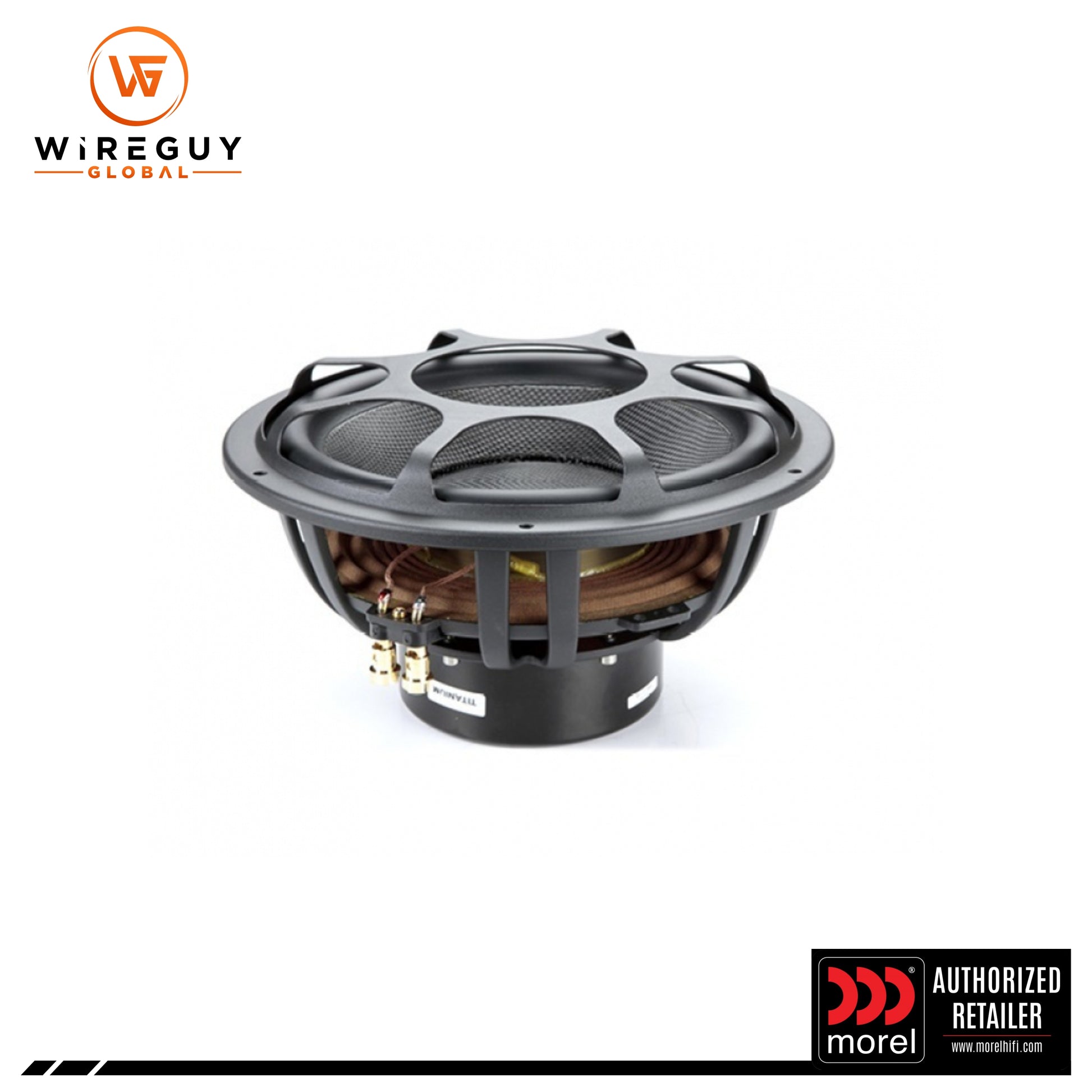

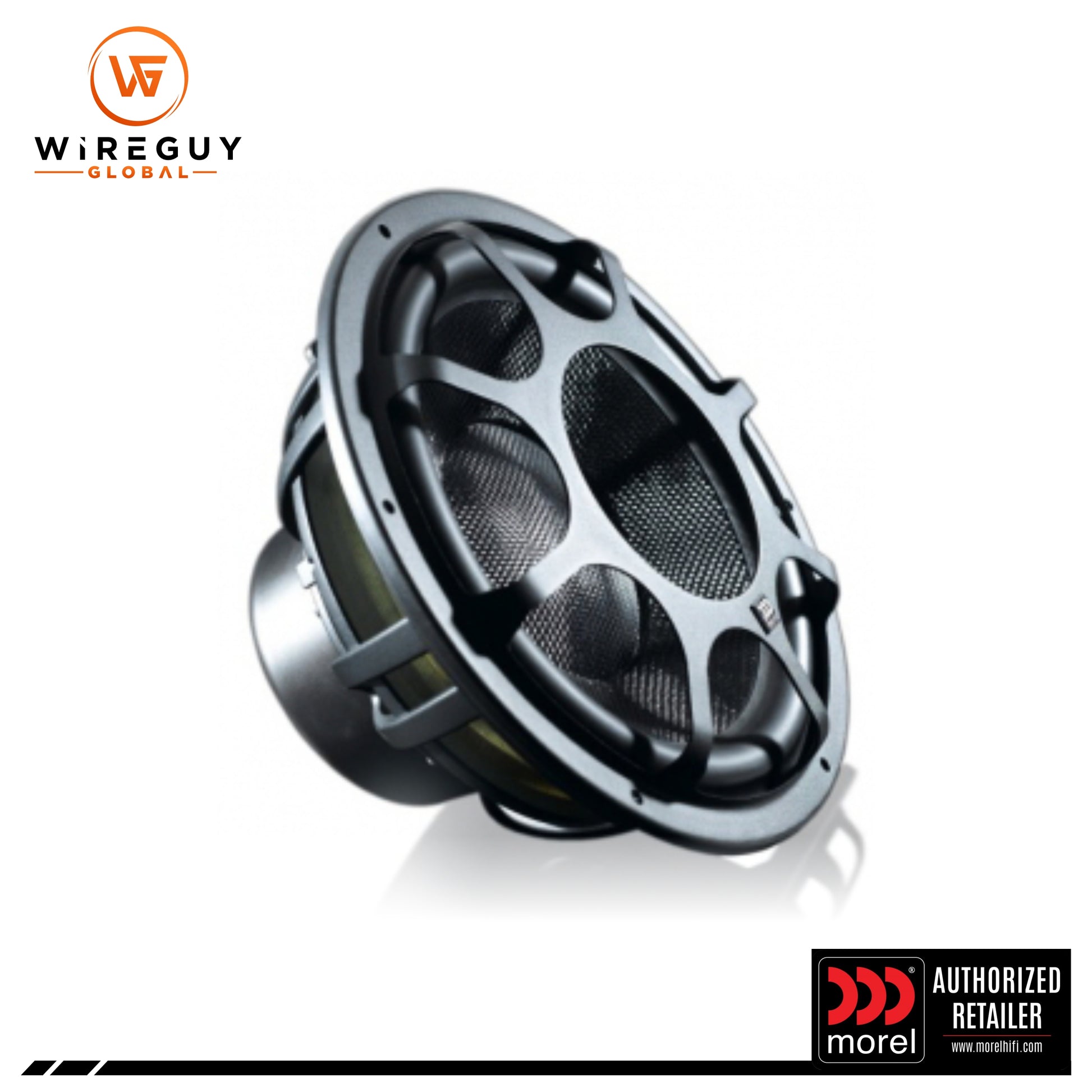

Morel Ultimo 10" Premium 2 OHM Subwoofer - 1000W RMS
Morel Ultimo 10" Premium 2 OHM Subwoofer - 1000W RMS
FREE SHIPPING available for this item with any payment method!
Upgrade Your Audio System with the Morel Ultimo 10" Premium 2 OHM Subwoofer - 1000W RMS
Experience bass like never before with the Morel Ultimo 10" Premium 2 OHM Subwoofer, engineered to push the boundaries of bass performance. With advanced technology and design improvements, the Ultimo Titanium offers unmatched power handling, clarity, and musicality, setting a new standard for high-end subwoofers.
Key Features:
Unmatched Bass Performance: The Ultimo Titanium delivers the ultimate bass experience, combining tight, controlled musicality with deep, life-like bass reproduction. It ensures every note is delivered with accuracy and emotion, making it the ideal choice for audiophiles who demand the best.
Cutting-Edge Technology: Featuring Morel's advanced technologies, the Ultimo Titanium incorporates a 5.1” Hexatech™ External Voice Coil (EVC™) and DMM™ (Dual Magnet Motor) design, achieving over 90% efficiency. This minimizes distortion while maximizing power handling for superior performance.
Titanium Voice Coil Former: The Titanium voice coil former enhances heat dissipation and power handling, reducing distortion while maintaining fast, controlled performance for accurate bass reproduction.
Copper Shorting Ring: The copper shorting ring reduces distortion and improves linear response, resulting in a flat impedance curve that ensures consistent, high-quality bass performance, even at high output levels.
Enhanced Bass Efficiency & Linearity: PFS™ (Progression Field Symmetry) spider and surround technology ensures that the subwoofer maintains maximum linearity and minimal distortion at all excursion levels, providing precise, deep, and powerful bass.
Hexatech™ Aluminum Voice Coil: Made from 100% aluminum wire, the Hexatech™ voice coil improves efficiency by up to 20%, offering faster transient response, enhanced power handling, and dynamic bass accuracy.
Carbon Fiber Cone: The carbon fiber and laminated paper cone provides strength, lightness, and exceptional damping, ensuring uncolored, natural bass reproduction with minimal distortion.
Uniflow™ Chassis: The Uniflow™ chassis utilizes an open design for superior aerodynamic efficiency, reducing interference with the woofer’s moving components and improving overall stability and support.
Specifications:
- Configuration: 10"
- Mounting Depth: 140.3 mm
- Power Handling: 1000 W/RMS, 3000 W Max
- Frequency Response: 10 Hz - 900 Hz
- Voice Coil Size: 130 mm
- Voice Coil Former: Titanium
- Voice Coil Wire: Aluminium
- Magnet: Neodymium
- Cone Type: Carbon Fibre and Laminated Paper
- Sensitivity: 86.1 dB
- Impedance: 2 Ohm
- Weight: 6.5 kg
What’s Included:
- Morel Ultimo 10" Premium 2 OHM Subwoofer - 1000W RMS
- Octopus grille included
Installation:
To install the Morel Ultimo 10" Premium 2 OHM Subwoofer (1000W RMS), start by selecting an appropriate enclosure for the subwoofer, ideally a sealed or ported box that matches the recommended specifications for optimal performance. Disconnect the vehicle’s battery before beginning the installation. Mount the subwoofer securely into the enclosure using the provided screws, ensuring a tight fit. Run the subwoofer wiring from your amplifier to the subwoofer, making sure to connect the positive and negative terminals correctly. The Morel Ultimo is 2-ohm, so ensure your amplifier is compatible with a 2-ohm load for maximum power output. Reconnect the vehicle's battery and test the subwoofer to ensure proper functionality. Finally, secure the subwoofer and enclosure in the vehicle, ensuring no vibrations or interference. Enjoy the deep bass performance of your new subwoofer.
