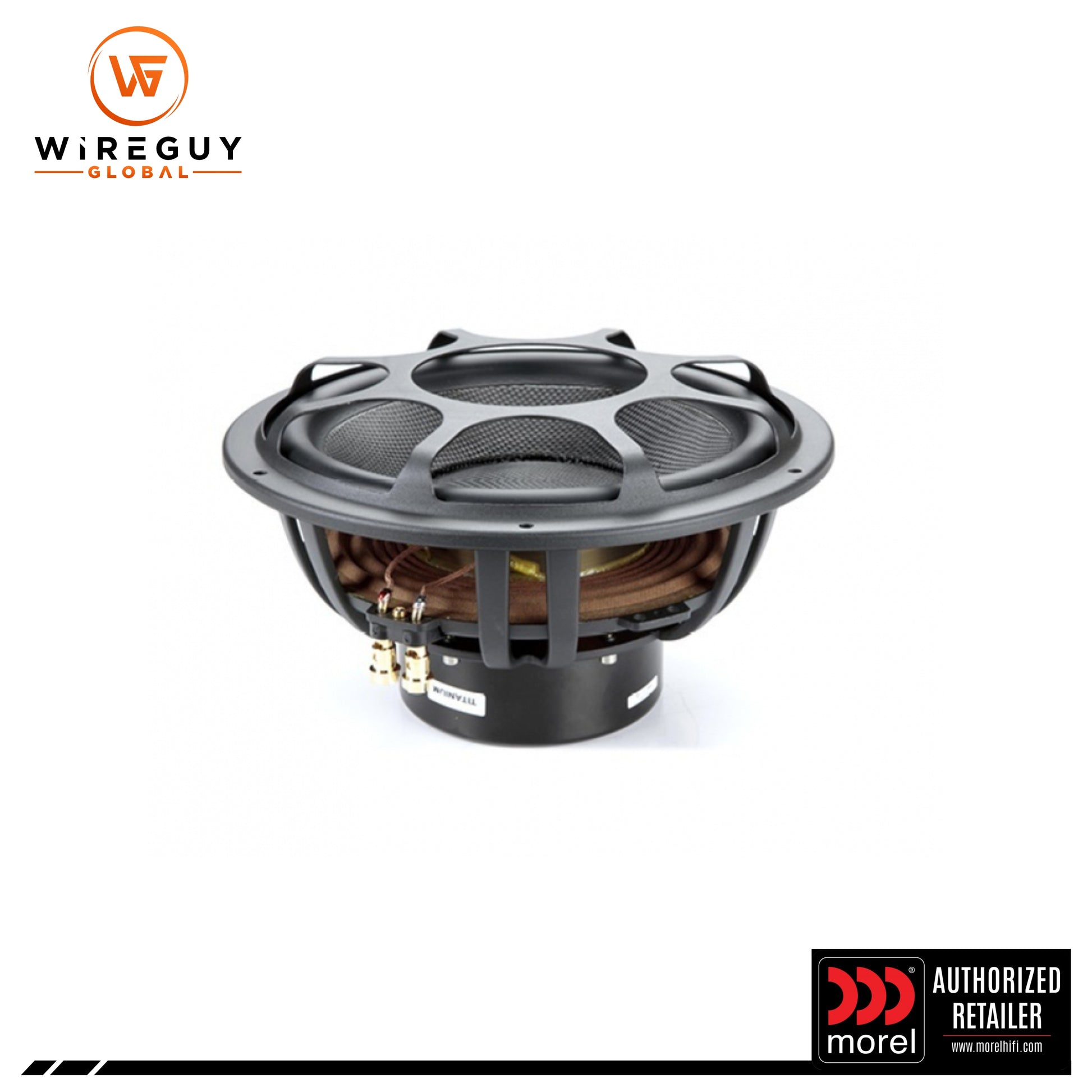

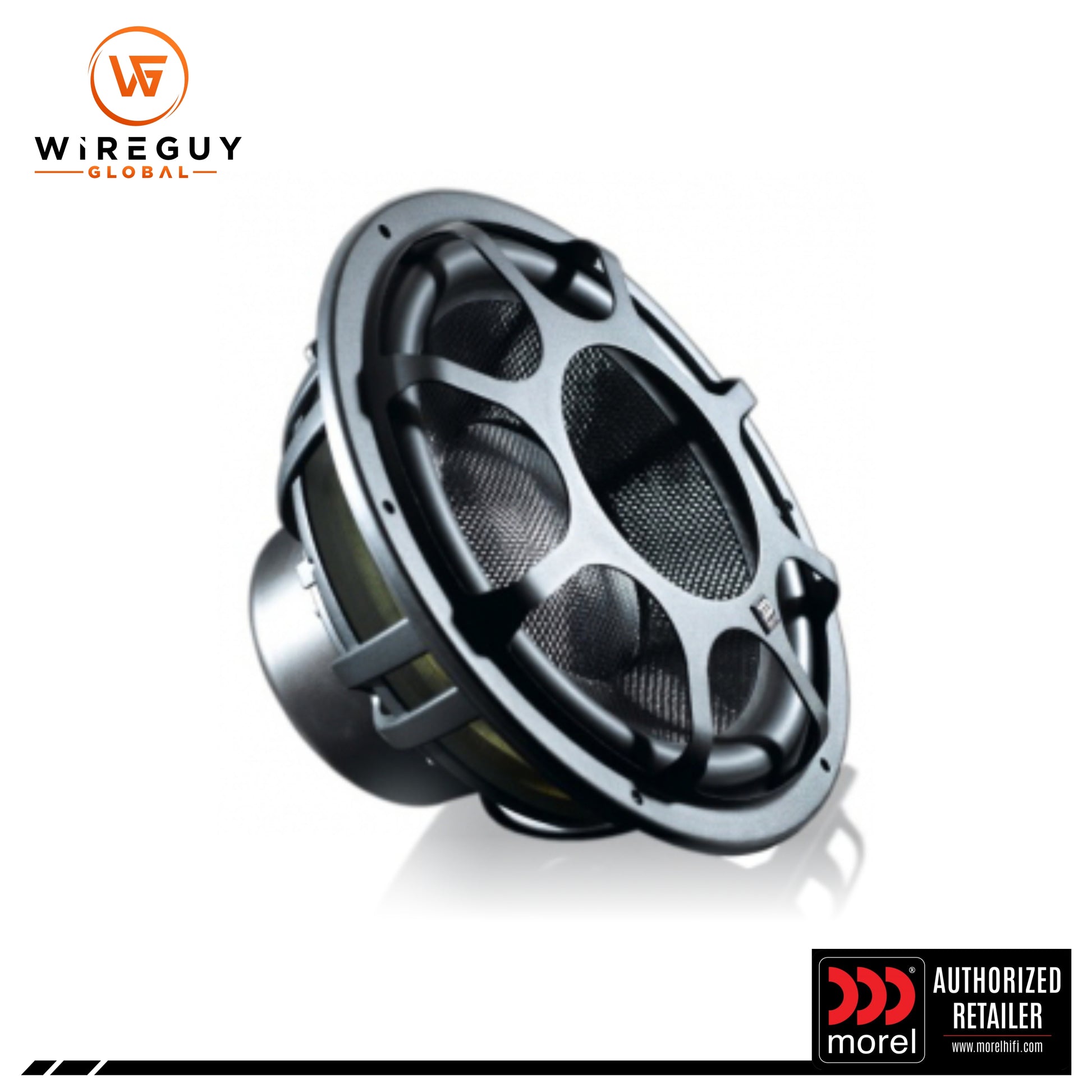

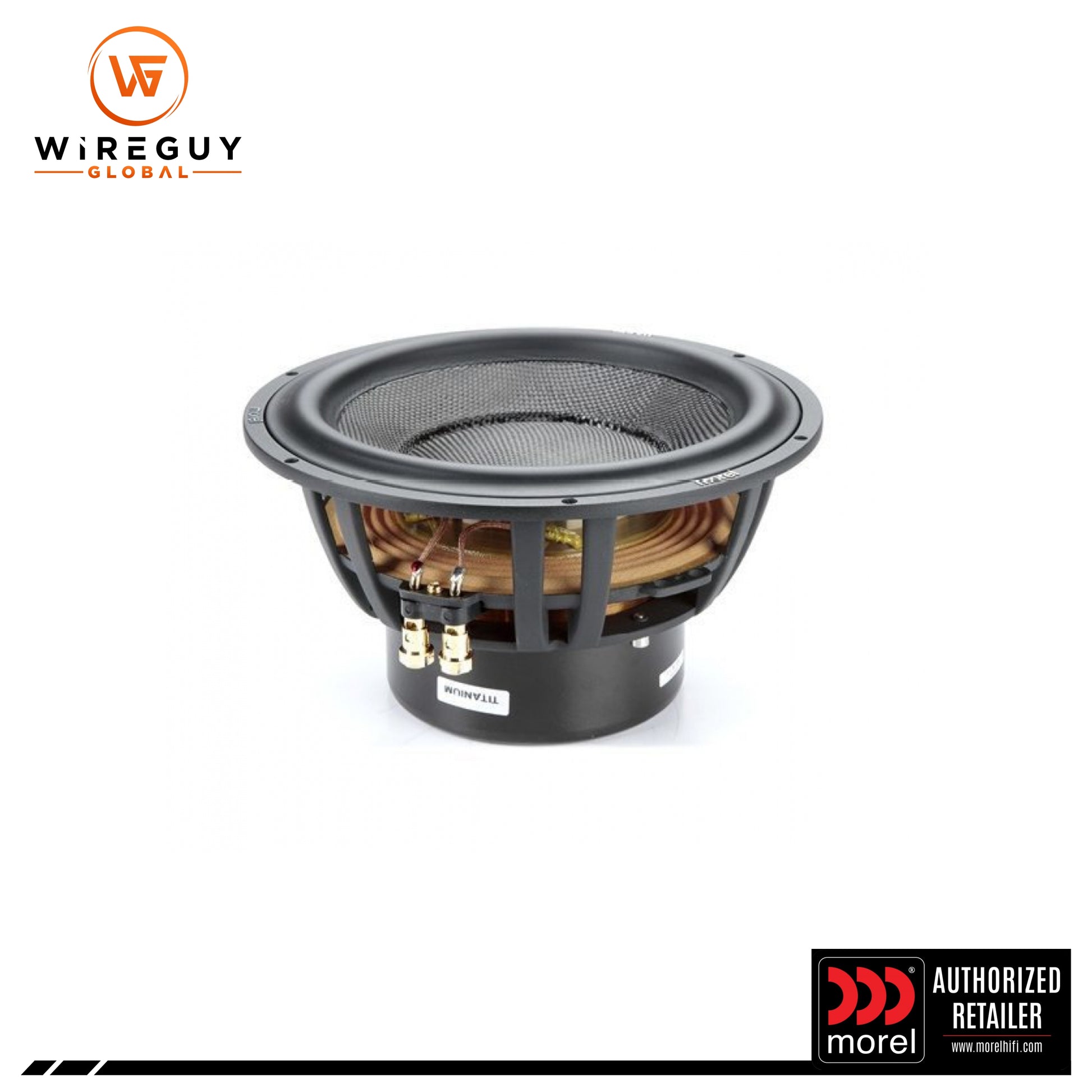

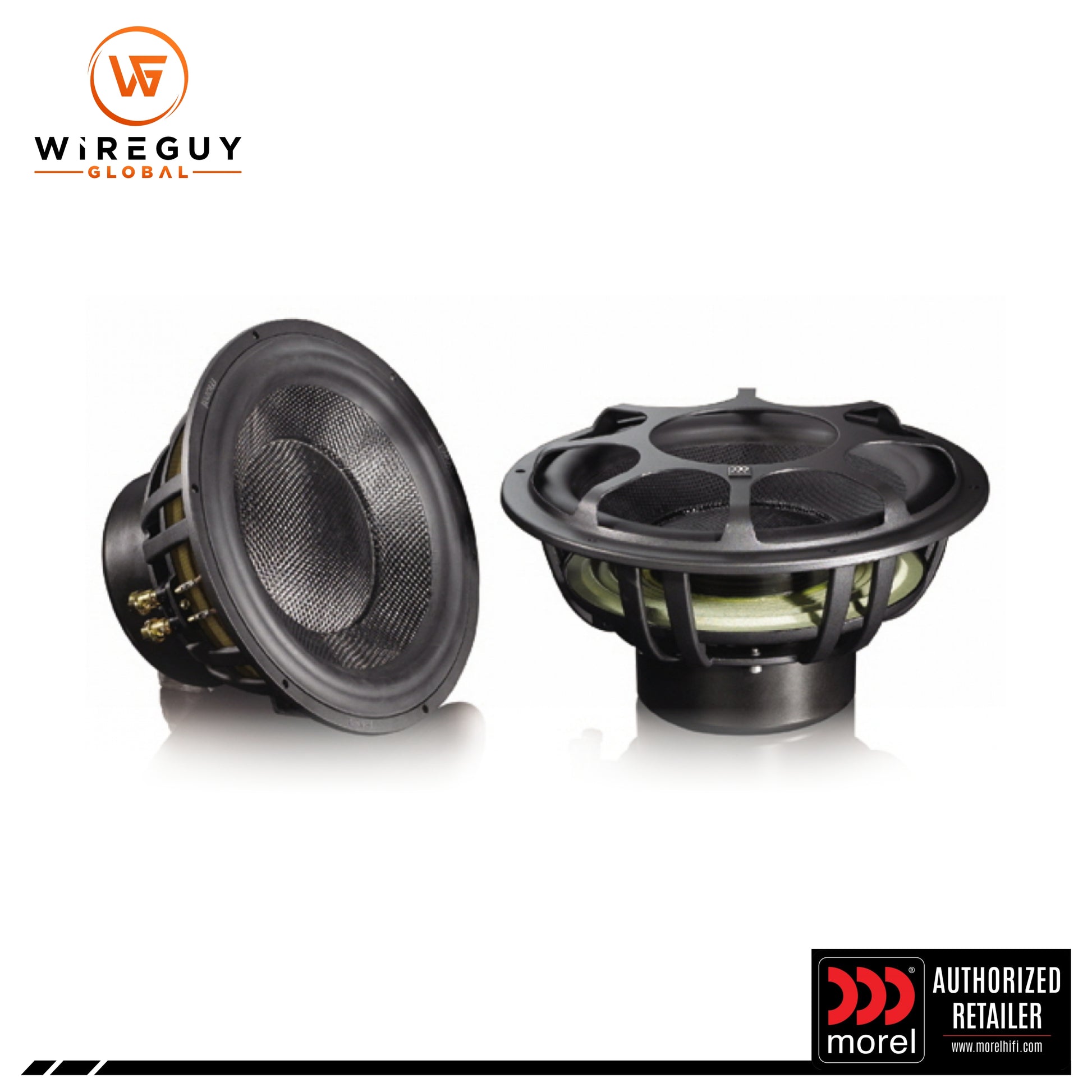

Morel Ultimo 12" 2-OHM 1000W RMS Premium Subwoofer

Morel Ultimo 12" 2-OHM 1000W RMS Premium Subwoofer

Regular price $1,499.00 AUD
Regular price Sale price $1,499.00 AUD
Sale Sold out
Shipping calculated at checkout.

FREE SHIPPING available for this item with any payment method!

Upgrade Your Car Audio Experience with the Ultimo Titanium Subwoofer

Take your audio system to the next level with the Ultimo Titanium Subwoofer, engineered to redefine bass performance. Building upon the legacy of the original Ultimo subwoofers, this new flagship model combines cutting-edge technology with exceptional musicality and high power handling, offering a bass experience like no other.

Key Features:

Advanced Technology: Incorporates Morel's most innovative HiFi bass driver technologies for unmatched deep bass reproduction and tight, controlled musicality.

Titanium Voice Coil Former: The exceptionally stiff and lightweight titanium voice coil former improves dynamics, transient response, and power handling while reducing distortion.

Linear Response: A copper shorting ring minimizes distortion and ensures a flat impedance response for more accurate bass performance.

High-Efficiency Motor Design: The DMM™ (Dual Magnet Motor) provides over 90% efficiency, while the PFS™ (Progression Field Symmetry) spider technology ensures minimal distortion and maximum linearity.

Carbon Fiber Cone: A lightweight and strong carbon fiber cone, derived from Morel's award-winning Fat Lady speaker system, provides exceptional damping for uncolored, natural audio reproduction.

EVC™ Technology: The External Voice Coil (EVC™) architecture improves heat dissipation and power handling, enabling up to 90% more efficiency than traditional designs.

Hexatech™ Voice Coil: The 100% aluminum Hexatech™ voice coil enhances efficiency by up to 20%, contributing to the subwoofer’s lightning-fast transient response.

Uniflow™ Chassis: Aerodynamically efficient open design that allows uniform airflow and smooth sound wave propagation, improving support and stability for the subwoofer.

Specifications:

  • Configuration: 12"
  • Mounting Depth: 146.9mm
  • Power Handling: 1000 W/RMS, 3000 W Max.
  • Frequency Response: 10 Hz - 900 Hz
  • Voice Coil Size: 130 mm
  • Voice Coil Former: Titanium
  • Voice Coil Wire: Aluminum
  • Magnet: Neodymium
  • Cone Type: Carbon Fibre and Laminated Paper
  • Sensitivity: 87dB
  • Impedance: 2 Ohm
  • Weight: 6.7 kg

What’s Included:

  • Morel Ultimo 12" 2-OHM 1000W RMS Premium Subwoofer
  • Octopus grille included

Installation:

To install the Morel Ultimo 12" 2-OHM 1000W RMS Premium Subwoofer, start by selecting an appropriate enclosure, either sealed or ported, that meets the recommended specifications for optimal sound quality. Disconnect the vehicle’s battery before installation. Securely mount the subwoofer into the enclosure using the provided screws, ensuring it is tightly fitted. Run speaker wire from your amplifier to the subwoofer, ensuring proper polarity (positive to positive, negative to negative). Since the subwoofer has a 2-ohm impedance, ensure your amplifier is capable of driving a 2-ohm load for maximum power output. Reconnect the vehicle's battery and test the subwoofer to ensure it functions properly. Finally, secure the subwoofer and enclosure in the vehicle, ensuring there is no unwanted vibration or interference. Enjoy the powerful and deep bass performance of your Morel Ultimo subwoofer.
