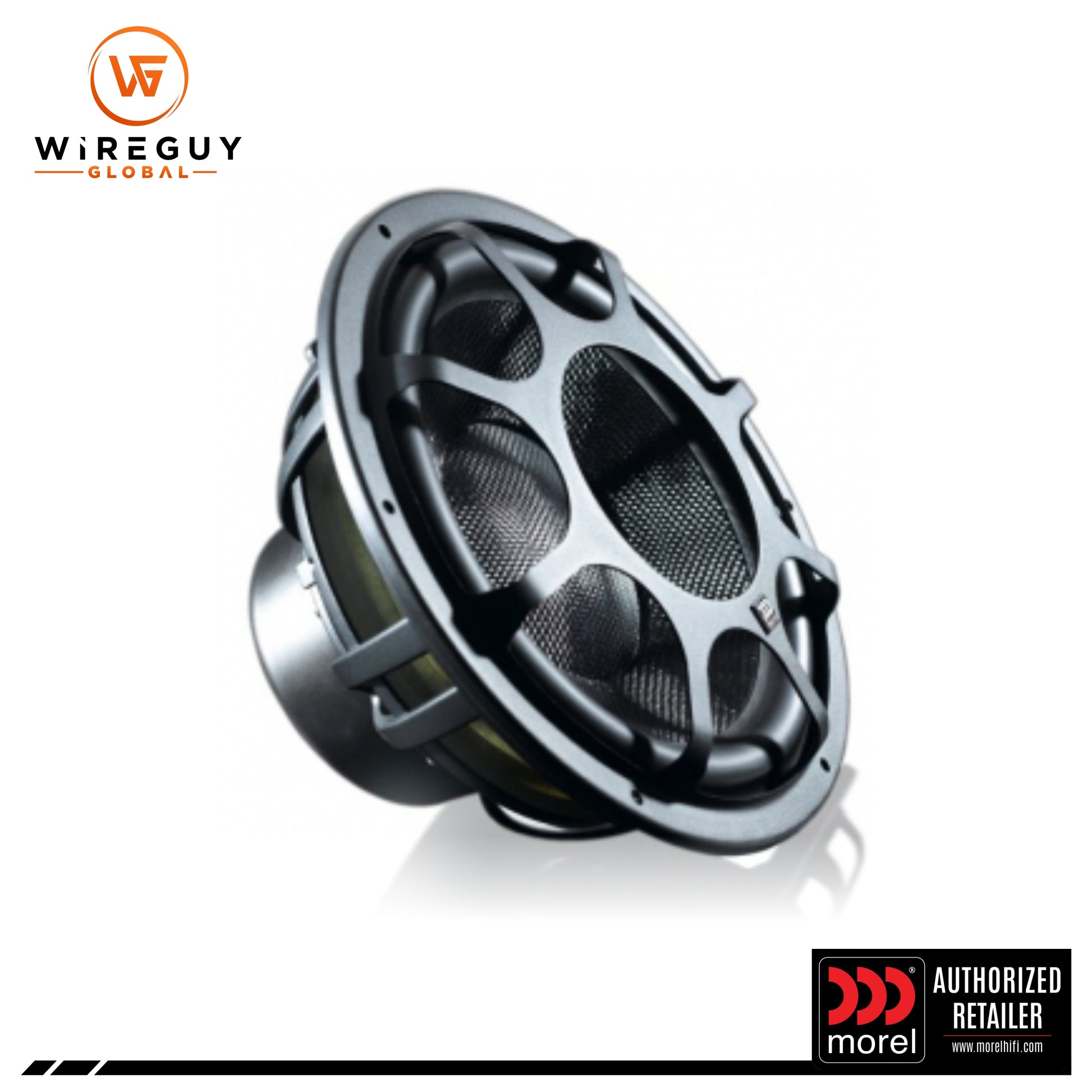

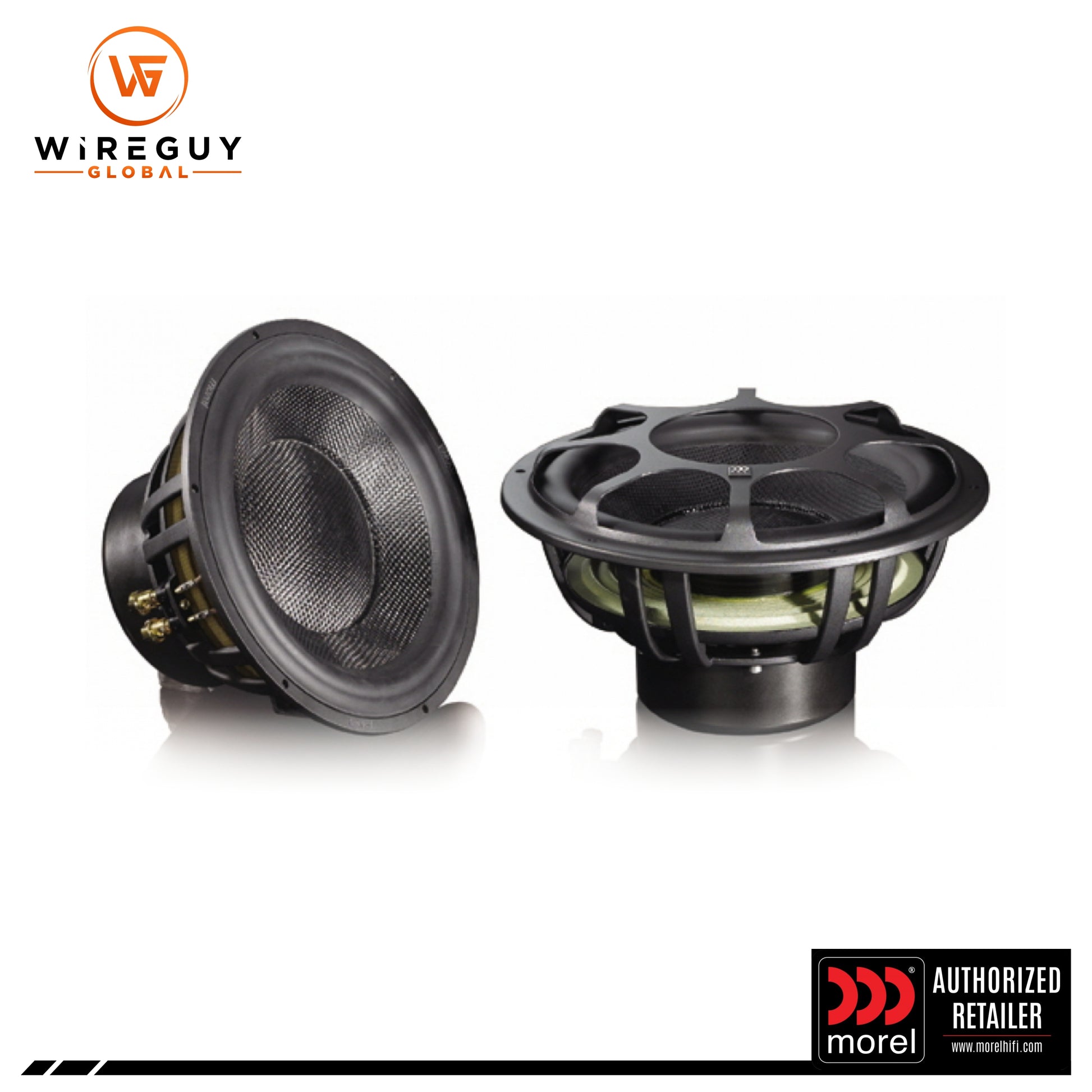

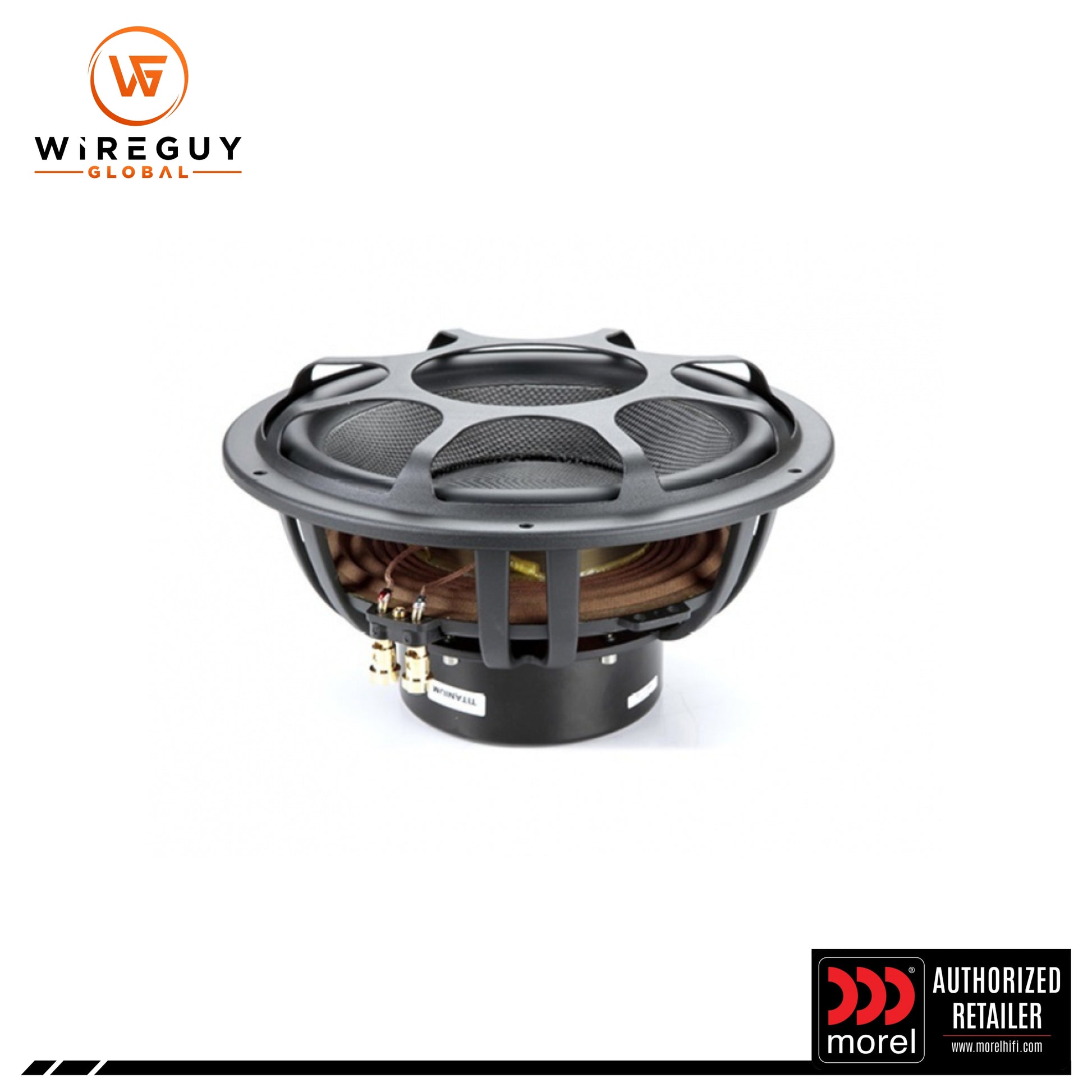

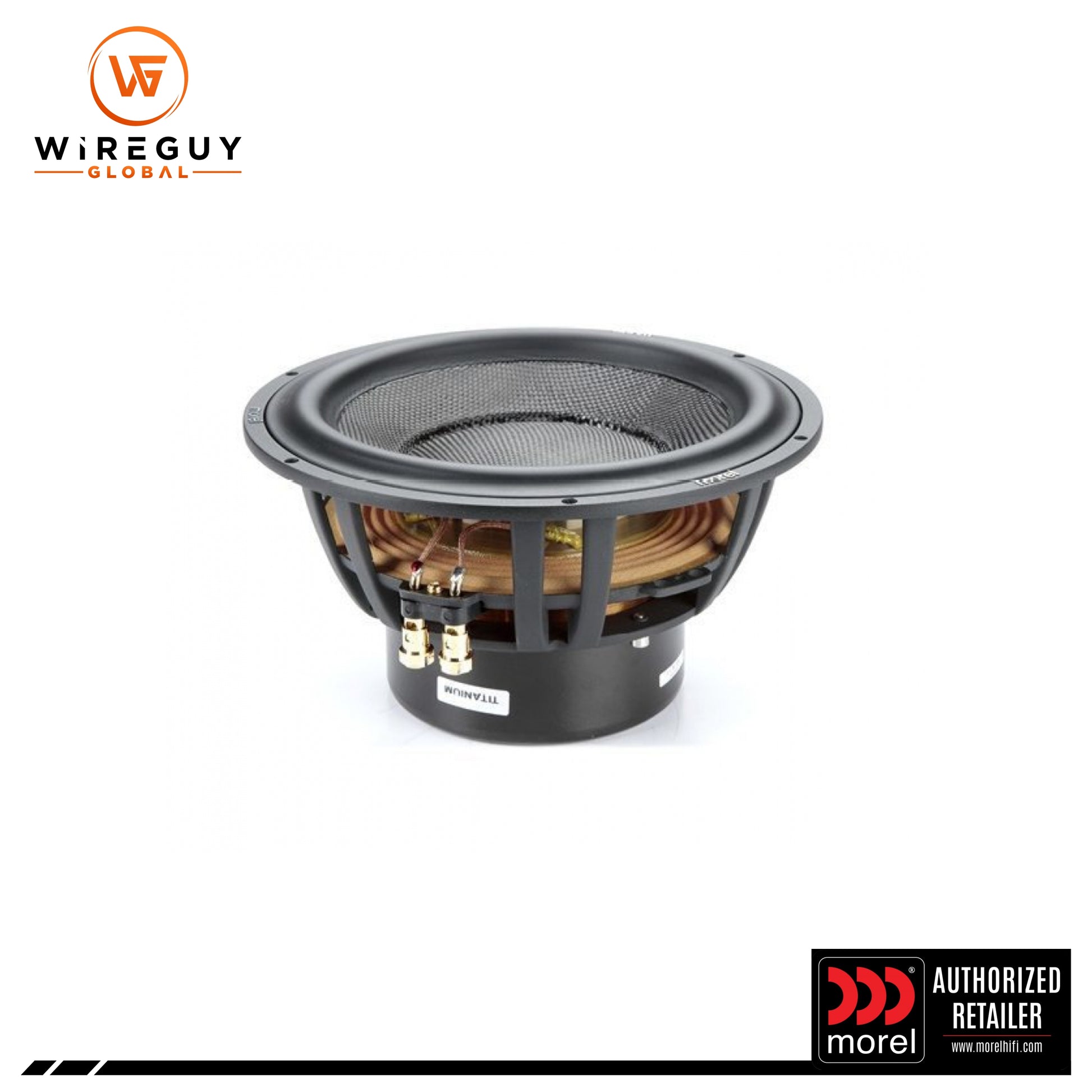

Morel Ultimo 12" 4-OHM 1000W RMS Premium Subwoofer

FREE SHIPPING available for this item with any payment method!

Elevate Your Car Audio with the Morel Ultimo 12" 4 OHM Premium Subwoofer - 1000W RMS

The Morel Ultimo 12" 4 OHM Premium Subwoofer takes subwoofer technology to new heights, combining the musicality and power handling that the Ultimo series is known for. Building on the legacy of its predecessor, the Ultimo Titanium improves upon its already impressive performance, setting a new standard for bass reproduction and dynamic range.

Key Features:

Unrivaled Bass Performance: The Ultimo Titanium 12" subwoofer delivers a flawless blend of tight, controlled musicality and deep, life-like bass reproduction. While traditional subwoofers focus purely on output, the Ultimo is engineered to provide precise, natural sound that creates the ultimate bass experience for discerning audiophiles.

Advanced HiFi Technology: Equipped with Morel’s cutting-edge HiFi bass driver technology, the Ultimo Titanium features a 5.1” Hexatech™ External Voice Coil (EVC™) and DMM™ (Dual Magnet Motor) system, achieving over 90% efficiency. This technology ensures low distortion, maximum power handling, and superior bass clarity at all output levels.

Titanium Voice Coil Former: The Titanium voice coil former significantly improves heat dissipation, reduces distortion, and enhances power handling. This ensures quicker transient response and delivers exceptional clarity and precise bass reproduction with minimal coloration.

Copper Shorting Ring for Linear Response: The addition of a copper shorting ring provides a more linear impedance response, reducing distortion and ensuring that high-output levels do not compromise the quality of the bass. This feature ensures smooth, consistent performance across the frequency range.

EVC Motor for Improved Efficiency: The EVC™ technology utilizes a voice coil that is up to three times larger than conventional designs, offering improved heat dissipation, better power handling, and increased linearity. The result is a highly efficient, magnetically shielded motor system that delivers clean, distortion-free bass.

Hexatech™ Aluminium Voice Coil: Made from 100% aluminum wire shaped like a honeycomb, the Hexatech™ voice coil enhances efficiency by up to 20%, improving transient response and reducing distortion. This design ensures that every note is delivered with dynamic precision and clarity.

Carbon Fiber Cone for Natural Sound: The carbon fiber cone, derived from the award-winning Fat Lady speaker system, combines two carbon fiber skins with a Rohacell foam core to form a cone that is light, strong, and properly damped for uncolored, natural bass reproduction.

Uniflow™ Chassis for Enhanced Stability: The Uniflow™ chassis uses an open design to optimize aerodynamic efficiency, reduce interference, and promote smooth airflow. This results in maximum stability and better support for the subwoofer’s moving components, ensuring consistent, distortion-free bass.

Specification:

• Configuration: 12"
• Mounting Depth: 146.9 mm
• Power Handling: 1000W RMS, 3000W Max
• Frequency Response: 10 Hz - 900 Hz
• Voice Coil Size: 130 mm
• Voice Coil Former: Titanium
• Voice Coil Wire: Aluminum
• Magnet: Neodymium
• Cone Type: Carbon Fibre and Laminated Paper
• Sensitivity: 86.3 dB
• Impedance: 4-ohm
• Weight: 6.7 kg

What’s Included:

• Morel Ultimo 12" 4-OHM 1000W RMS Premium Subwoofer
• Octopus grille included

Installation:

To install the Morel Ultimo 12" 4-OHM 1000W RMS Premium Subwoofer, begin by selecting an appropriate sealed or ported enclosure that matches the recommended specifications for the best sound performance. Disconnect the vehicle’s battery before starting the installation. Mount the subwoofer securely into the enclosure using the provided screws, ensuring a tight and stable fit. Run speaker wire from your amplifier to the subwoofer, ensuring correct polarity (positive to positive, negative to negative). Since the subwoofer has a 4-ohm impedance, make sure your amplifier is compatible with a 4-ohm load to deliver optimal power. Reconnect the vehicle's battery and test the subwoofer to ensure proper functionality. Finally, securely mount the subwoofer and enclosure in the vehicle, ensuring no vibrations or interference. Enjoy the deep, high-quality bass performance of your Morel Ultimo subwoofer.
