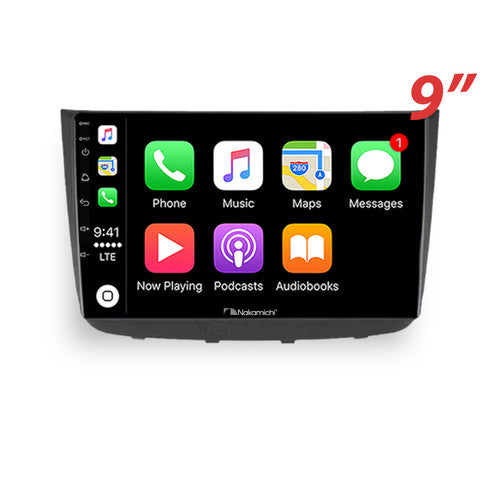

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Mercedes Vito 2003-2006

Compatibility:

• For Mercedes Vito 2003-2006

Important:

• Powered by Nakamichi Android System
• Fully compatible with steering wheel controls
• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide the correct harness.

Key Features:

PhoneLink Operation
iPhone Connection
Enjoy iPhone apps without the need for cables. PhoneLink offers a smarter, safer way to use your iPhone while driving. You can easily get directions, make calls, send and receive messages, and enjoy music—all displayed on your car’s built-in screen.

Android Phone Connection (Wired for Some Specific Phone Brands)
Wirelessly connect your Android phone and display your apps on the screen. Access navigation, make hands-free calls, or send texts while keeping your focus on the road.

Built-In GPS
Preloaded GPS data, plus the option to update or purchase your preferred data via the Google Play Store.

Built-In WiFi & 4G Support
Connect your stereo to a WiFi network, or insert a SIM card to enable 4G connectivity for faster browsing and updates.

Bluetooth 5.0 Connectivity
Enjoy smooth communication with Bluetooth 5.0.

• Frequency band: 2.4GHz
• Max range: 5 meters

Radio Options:

• FM: 87.5-108.0 MHz
• AM: 522-1620 kHz
• 18 FM presets, 12 AM presets

Audio Input/Output:

• Max power: 4 x 50W
• Pre-output: 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX input: Left and right audio inputs
• Front/rear left/right speaker outputs
• Subwoofer output
• Amplifier control (AMP)
• Rear speaker outputs (RL/RR)

Video Capabilities:

• Reverse camera video input (B.CAMERA)
• Front camera input (F_CAMERA)
• Extra video input (CVBS)

USB Interfaces:

• 4-pin USB: Connection for PhoneLink (iPhone or Android)
• 6-pin USB: Connection for music or video playback

Other Inputs:

• Radio antenna input
• GPS antenna input
• 5G WiFi support
• 4G+/4G-
• External microphone port (MIC)
• Brake detection input
• Canbus box interface (Can RX/TX)

Package Includes:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x WiFi/BT/Camera cable
• 1 x RL/RR cable
• 1 x Microphone
• 1 x 4G antenna
• 1 x GPS antenna
• 1 x User manual
• 2 x USB cables
  Note: Accessories may vary depending on your vehicle model. It is normal for them to differ from the listed contents.

Technical Specifications:

• Display size: 9" TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display resolution: 1280 x 720 IPS
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging/reading: 5±0.25V/1A
• Supported video formats: H264/MP4/AVI/MKV/FLV
• Supported audio formats: MP3/APE/AAC/FLAC
