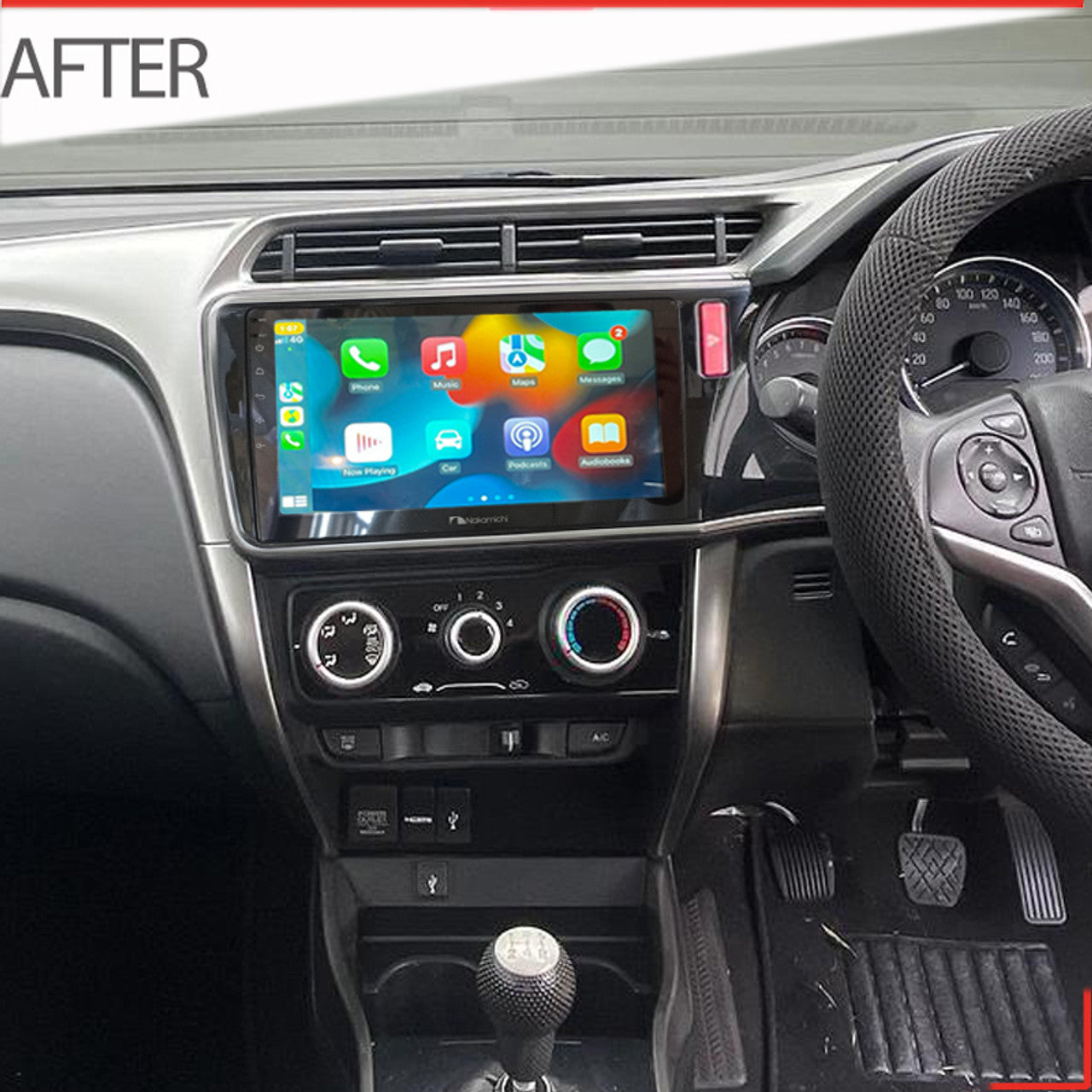

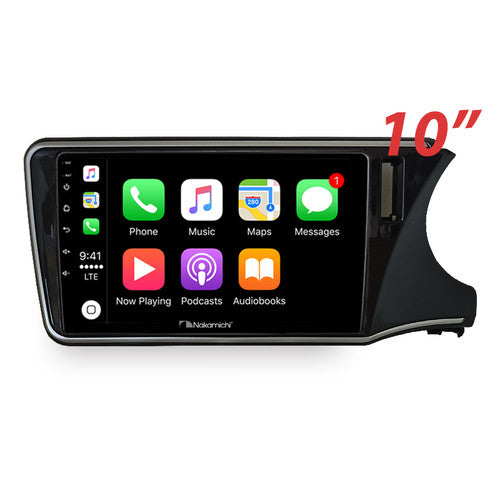

Nakamichi Android Wireless Apple CarPlay & Android Auto for Honda City 2014+

Compatibility:

• For Honda City 2014+

Important Notes:

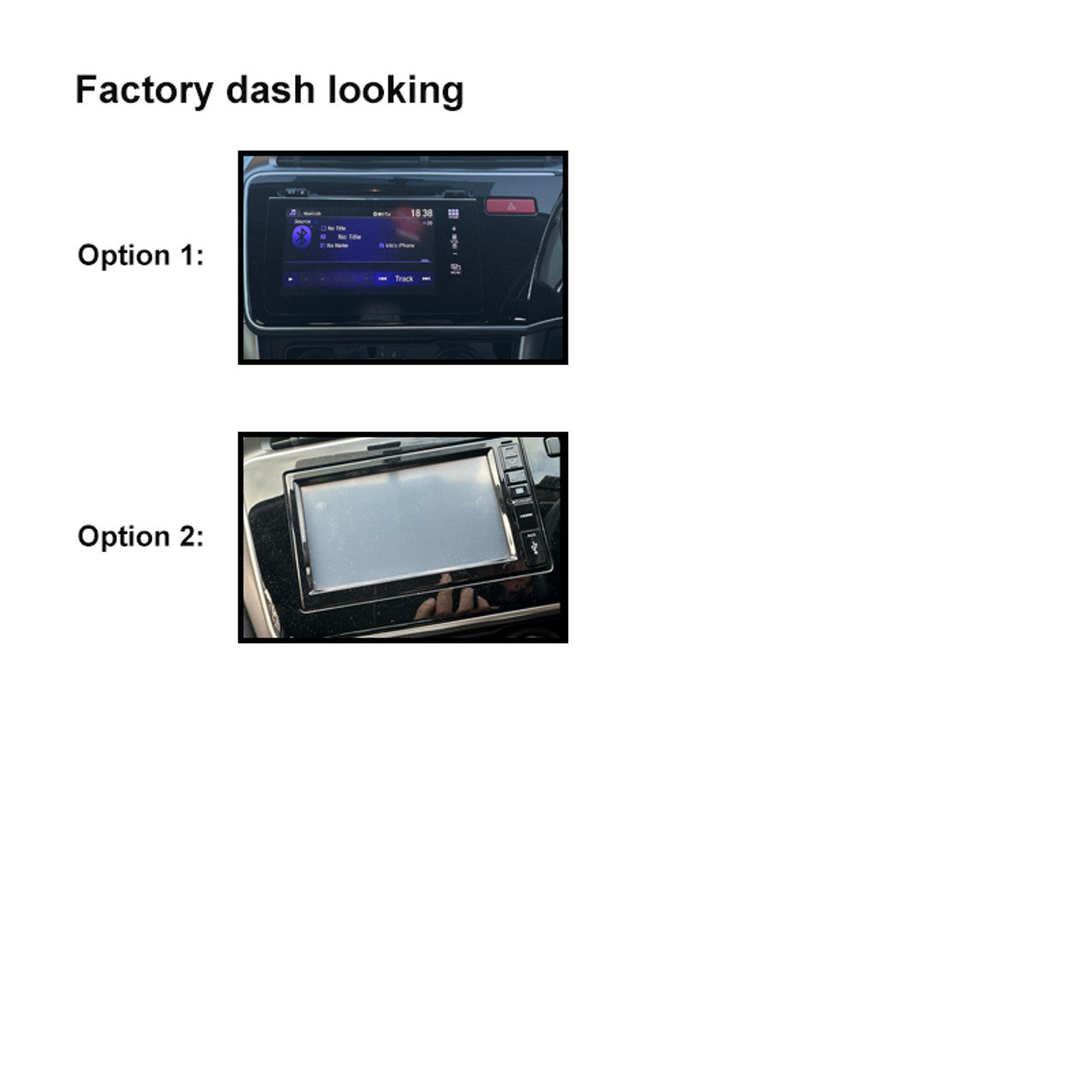

• Option 1: Compatible with Steering Wheel Controls and factory 3-camera views.
• Option 2: Not compatible with all Steering Wheel Controls, but still supports factory 3-camera views.
• Please send a photo of your dashboard along with your car's year and model when purchasing to receive the correct harness.

Main Features:

PhoneLink Operation:

• iPhone Connection:
  Enjoy wireless CarPlay for easy access to your iPhone apps, including maps, calls, messages, and music— all through your car's built-in display. CarPlay offers a smarter and safer way to drive with new app categories and customizable dashboards for your iPhone.

• Android Phone Connection (Wired for some phones):
  Connect your Android phone wirelessly or via USB. Your apps, maps, calls, and more will appear onscreen, allowing you to focus on driving. Just plug in and go!

Built-in GPS:

• Preloaded GPS data with the option to update or purchase additional maps via Google Play Store.

Built-in Wi-Fi & 4G Support:

• Connect to Wi-Fi or insert a SIM card to access 4G mobile data.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4x50W
• Pre-output: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs (Rear): Left & Right
• Outputs: Front/Rear Speakers, Subwoofer, Amplifier Control

Video Inputs:

• B.CAMERA: Reverse Camera Input
• F.CAMERA: Front Camera Input
• CVBS: Extra Video Input

USB Interfaces:

• 4Pin USB: Connection for CarPlay / Android Auto (Rear)
• 6Pin USB: USB for Music or Video (Rear)

Other Inputs (Rear):

• Radio Antenna Input
• GPS Antenna Input
• 5G Wi-Fi
• 4G-/+ Support
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x Rear Left/Right Speaker Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 2 x USB Cables
• 1 x User Manual
  (*Accessory package may vary depending on car model.)

General Specifications:

• Screen Size: 10” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
