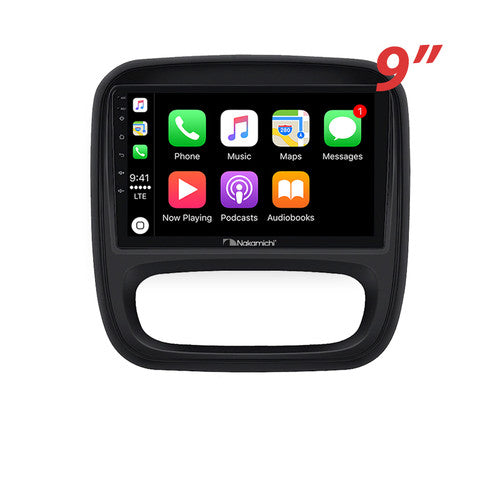

Nakamichi Android Wireless Apple CarPlay & Android Auto for Renault Trafic 2014+

Compatibility:

• For Renault Trafic 2014+

Important Notes:

• Nakamichi Android System
• Compatible with Steering Wheel Controls

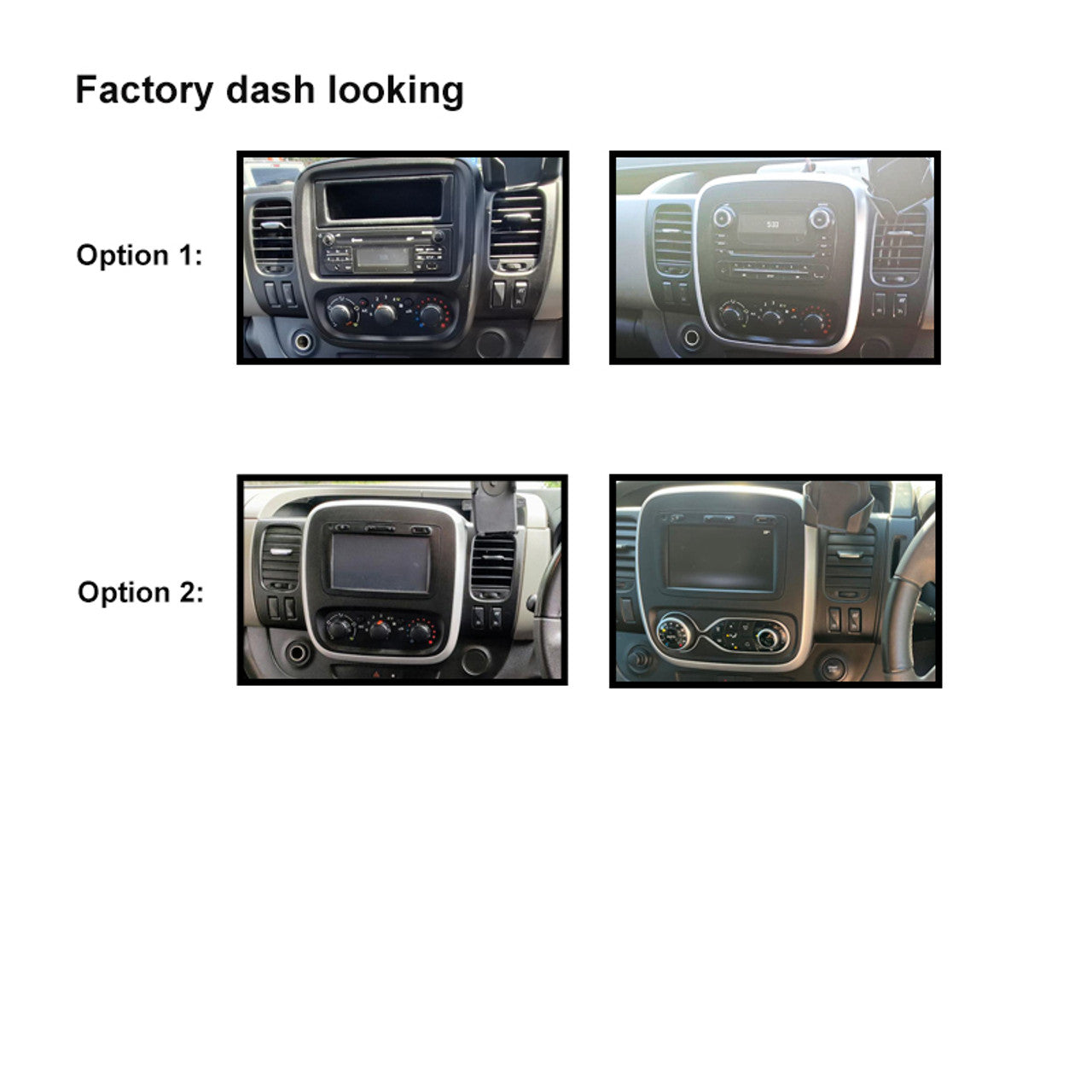

• Factory dash requires modification for installation
• Please send a photo of your dashboard along with the car’s year and model when purchasing to receive the correct harness.

Main Features:

PhoneLink Operation:

• iPhone Connection: Enjoy your iPhone apps wirelessly. Access maps, calls, messages, and music all through your car's display. CarPlay is smarter, safer, and fully customizable with iOS.
• Android Phone Connection (Wired for some phones): Connect your Android phone wirelessly to the car display. Your apps, driving directions, hands-free calls, and more appear onscreen. Focus on the road while you drive and enjoy the journey!

Built-In GPS:

• Preloaded GPS data with options to update or purchase additional maps via Google Play Store.

Built-In WiFi & 4G Support:

• Connect to WiFi or insert a SIM card to enjoy 4G connectivity.

Bluetooth 5.0 + EDR:

• Frequency band: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Inputs/Outputs:

• Max Power: 4x50W
• Pre-output: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right (Rear)
• Outputs: Front/Rear Speakers, Subwoofer, Amplifier Control

Video Inputs:

• B.CAMERA: Reverse Camera Input
• F.CAMERA: Front Camera Input
• CVBS: Extra Video Input

USB Interfaces:

• 4Pin USB: Connection for PhoneLink (iPhone or Android)
• 6Pin USB: Connection for Music or Video

Other Inputs:

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi
• 4G-/+ Support
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x Rear Left/Right Speaker Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 2 x USB Cables
• 1 x User Manual
  (*Accessory package may vary depending on car model.)

General Specifications:

• Screen Size: 9” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
