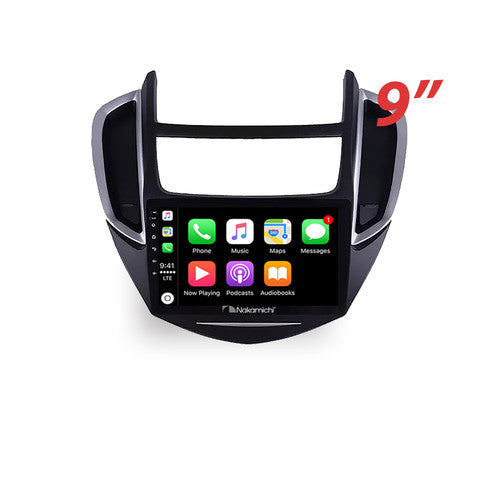

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav for Holden Trax 2013-2017

Compatibility:

• For Holden Trax 2013-2017

Important Notes:

• Nakamichi Android System
• Steering Wheel Control compatibility
• Factory camera may require modification

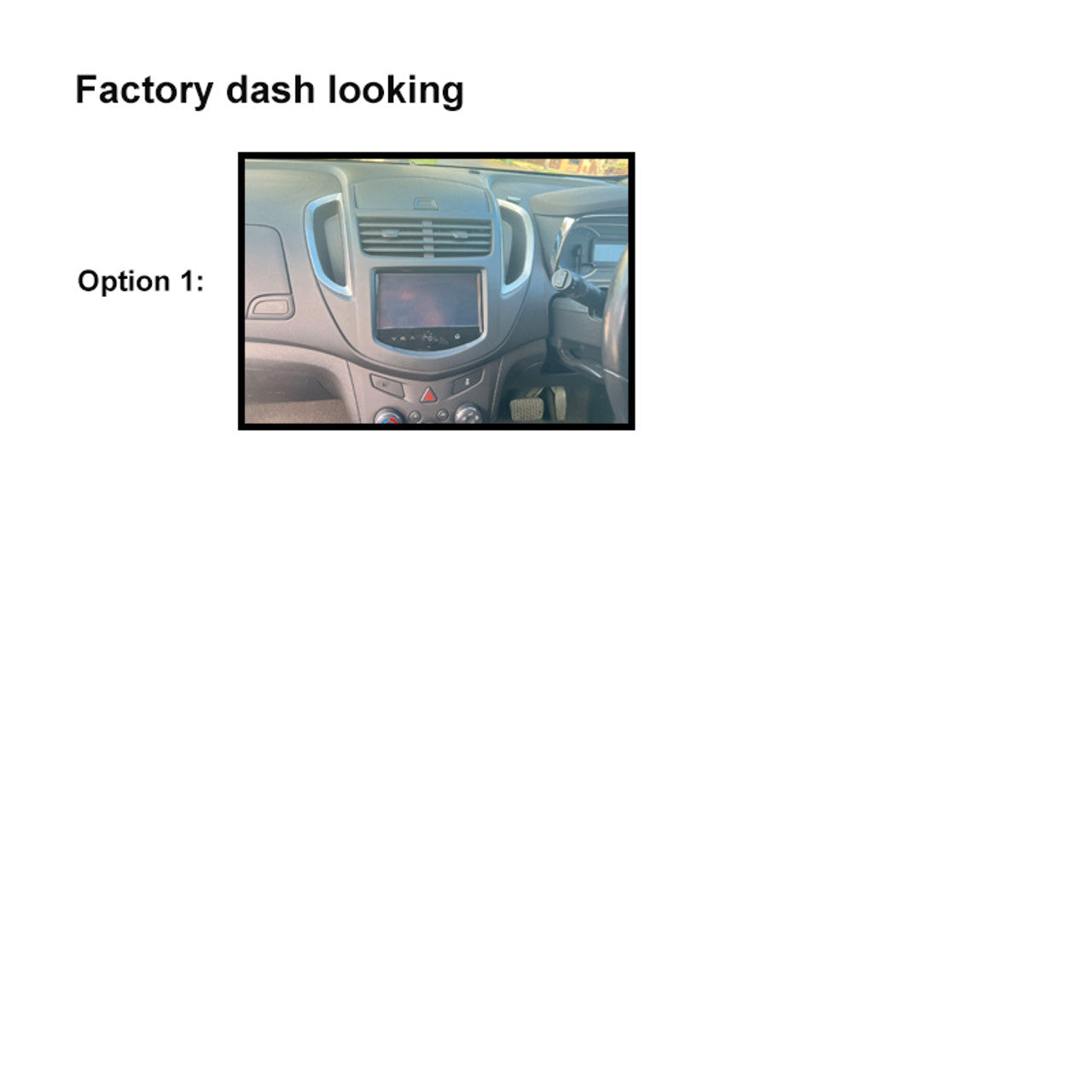

• Please send us a photo of your dashboard along with car year and model when purchasing to ensure compatibility and receive the correct harness.

Main Features:

PhoneLink Operation:

• iPhone Connection: Enjoy your iPhone apps without cables. Access maps, calls, messages, and music through your car’s display.
• Android Phone Connection: Connect wirelessly for hands-free calls, navigation, and app usage (wired connection may be required for some brands).

Built-In GPS:

• Preloaded GPS data, with options for updates or additional maps via Google Play Store.

Built-In WiFi & 4G Support:

• Connect to WiFi or insert a SIM card for 4G connectivity.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4x50W
• Pre-output: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• Audio inputs/outputs for AUX, Front/Rear speakers, and Subwoofer

Video Inputs:

• Reverse Camera (B.CAMERA), Front Camera (F.CAMERA), Extra Video Input (CVBS)

USB Interfaces:

• 4Pin USB: PhoneLink (iPhone/Android)
• 6Pin USB: Music/Video

Other Inputs:

• Radio, GPS, WiFi/4G Antennas, Microphone, Brake Detection, Canbus Interface

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (*Different car models may require different accessories, so the package contents may vary.)

General Specifications:

• Screen Size: 9” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
