Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Alfa Romeo 159 (2006-2011)

Compatibility:

• For Alfa Romeo 159 (2006-2011)

Important Notes:

• System: Nakamichi Android
• Steering Wheel Control: Compatible

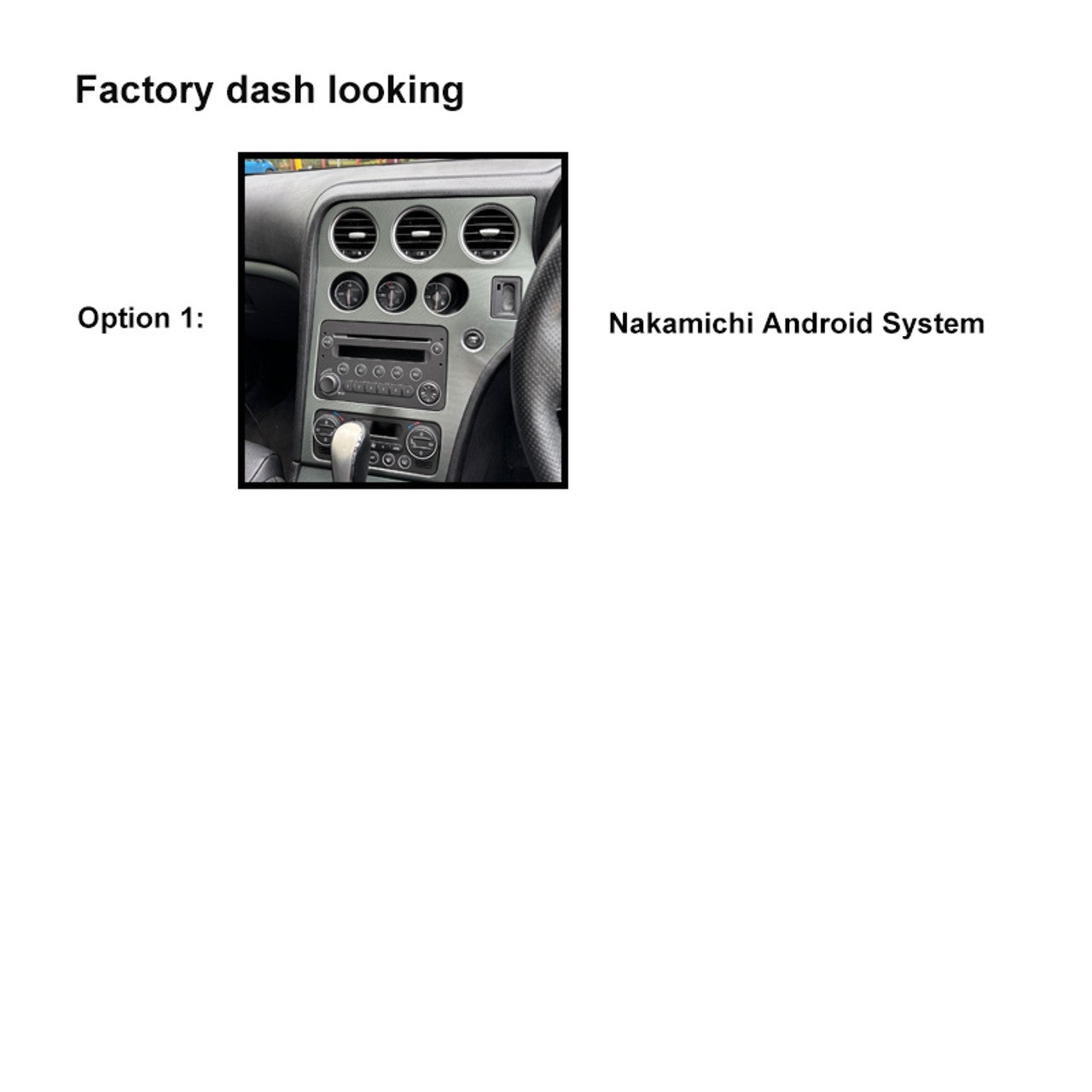

• Dash Photo: Please send a photo of your car’s dashboard along with the year and model when purchasing, so we can provide the correct harness.

Main Features:

PhoneLink Operation:

• iPhone Connection (Wireless CarPlay):
  Enjoy wireless CarPlay for easy access to iPhone apps while driving. Use your car's display to get directions, make calls, send messages, and listen to music, all without the need for cables.

• Android Phone Connection (Wired for some phone brands):
  Pair your Android phone wirelessly or via USB to use apps for navigation, calls, messages, and more, all on your car's display. Stay connected while staying focused on the road.

Built-in GPS:

• Preloaded GPS data, with the option to update or purchase preferred maps via the Google Play Store.

Built-in Wi-Fi & 4G Support:

• Connect the stereo to a Wi-Fi network or insert a SIM card for 4G connectivity.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4x50W
• Pre-output Voltage: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right
• Outputs: Front/Rear Speakers, Subwoofer, Amplifier Control

Video Inputs:

• Reverse Camera Input (B.CAMERA)
• Front Camera Input (F.CAMERA)
• Extra Video Input (CVBS)

USB Interface:

• 4Pin USB: Connection for CarPlay / Android Auto
• 6Pin USB: Connection for Music or Video

Other Inputs (Rear):

• Radio Antenna Input
• GPS Antenna Input
• 5G Wi-Fi
• 4G-/+
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Wi-Fi/BT/Camera Cable
• 1 x Rear Left/Right Speaker Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (*Accessories may vary depending on the car model.)

General Specifications:

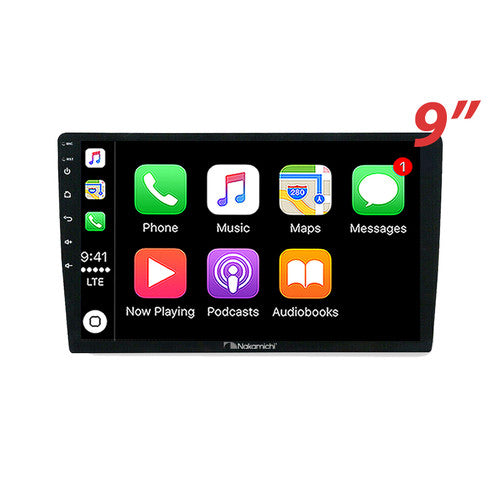

• Screen Size: 9” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
