Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Hyundai Tucson 2018-2020

Compatibility:

• for Hyundai Tucson 2018-2020

Important Notice:

• Compatible with Steering Wheel Controls

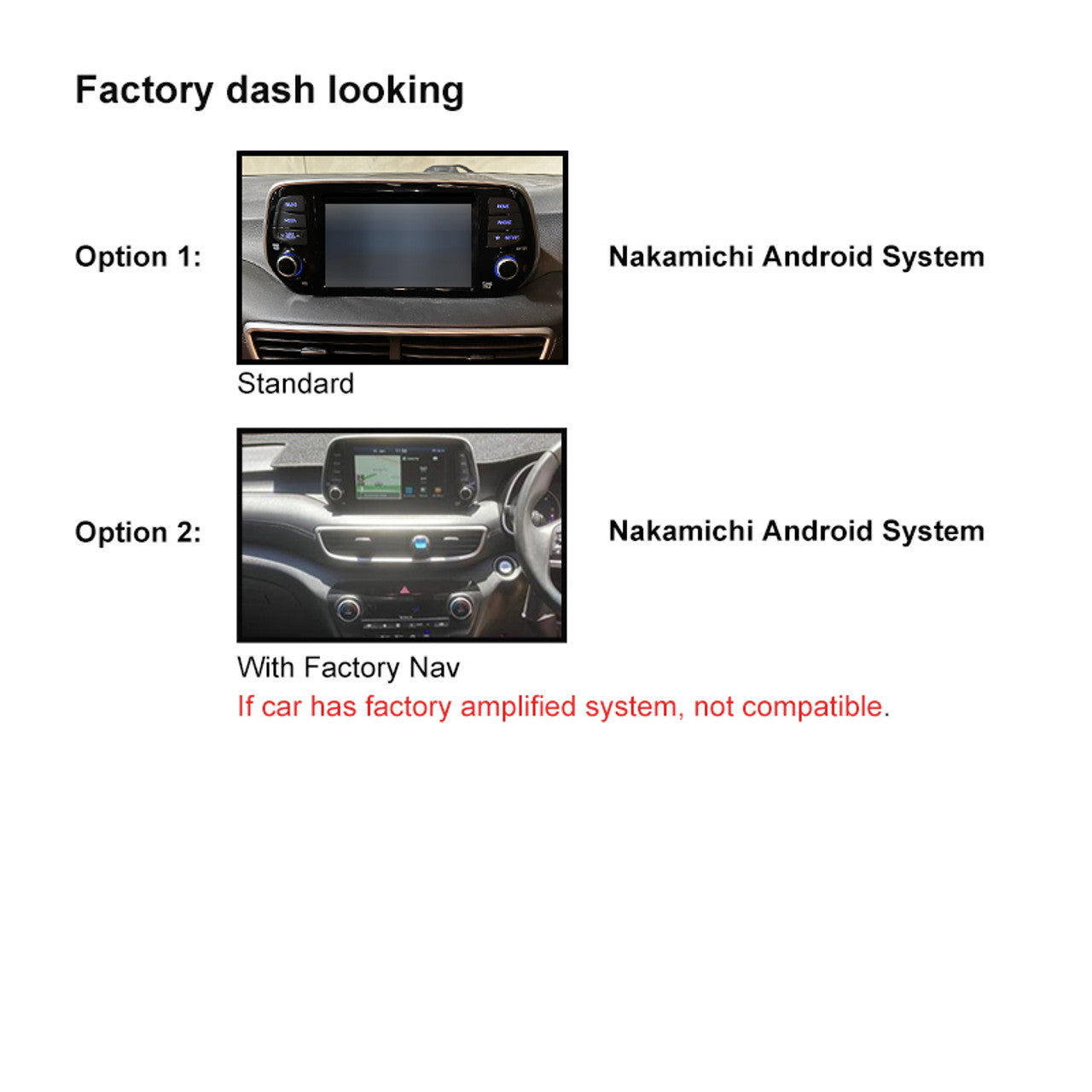

• Option 1: Standard System
• Option 2: Factory Navigation System
• Not compatible with factory amplified system
• Please send us a dashboard photo with your car’s year and model when purchasing, so we can provide the correct harness for your vehicle.

Key Features:

PhoneLink Operation:

iPhone Connection (Wireless):
Experience the ultimate co-pilot for your drive. Use your iPhone apps wirelessly with PhoneLink. Safely get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wireless, Wired for some specific brands):
Pair your Android phone without cables to the car’s display. Access your phone apps for navigation, hands-free calling, and messaging—while staying focused on the road. Some phone brands may require a wired connection.

Built-in GPS & WiFi:
Preloaded GPS data with the ability to update or purchase additional data from the Google Play Store. Connect the unit to a WiFi network, or insert a SIM card for 4G connectivity.

Bluetooth Communication:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• Presets: 18 FM stations, 12 AM stations

Audio Features:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4–8Ω
• AUX Inputs: Left (L) and Right (R) audio inputs

Video Inputs/Outputs:

• Reverse Camera Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)
• Video Output Options: V-OUT1, V-OUT2

USB Interface:

• 4-pin USB for PhoneLink (iPhone or Android)
• 6-pin USB for music and video playback

Additional Inputs/Outputs:

• Radio Antenna Input
• GPS Antenna Input
• External Microphone Port
• Parking Brake Detection
• Canbus Box Interface for vehicle-specific integration
• 5G & 4G WiFi support

Package Includes:

• Nakamichi Head Unit with Fascia
• Main Harness
• RCA Cable
• WiFi/BT/Camera Cable
• RL/RR Cable
• Microphone
• 4G Antenna
• GPS Antenna
• 2 USB Cables
• User Manual
  (Note: Accessory packages may vary by vehicle model.)

General Specifications:

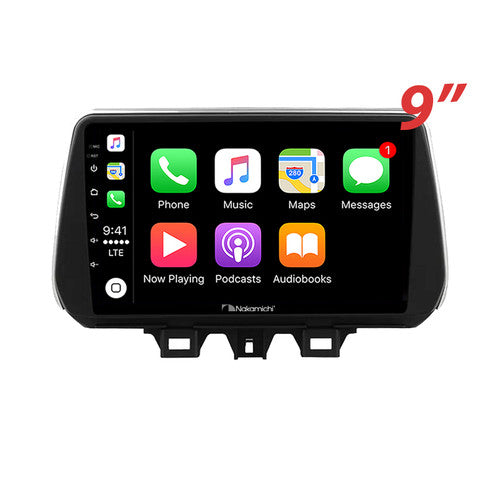

• 9” TFT Display with 1280x720 resolution (IPS)
• 500 nits brightness for clarity in all conditions
• NK 12.0 System with 8-Core Cortex-A55 CPU
• 4GB RAM and 32GB ROM for smooth performance
• Operating Voltage: 14.4V (10.5V–16V)
• USB Charging/Reading Support (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
