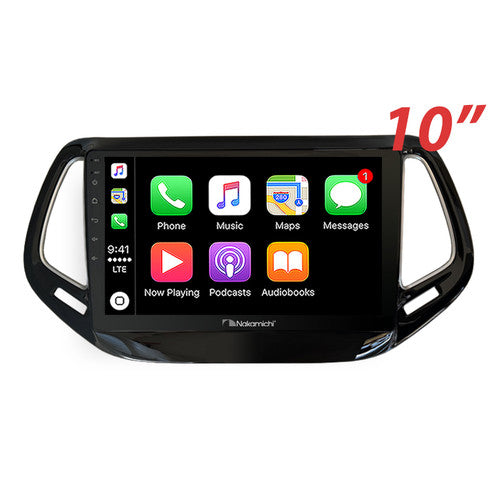

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Jeep Compass 2017+

Compatibility:

• For Jeep Compass 2017+.

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• Works with factory camera.

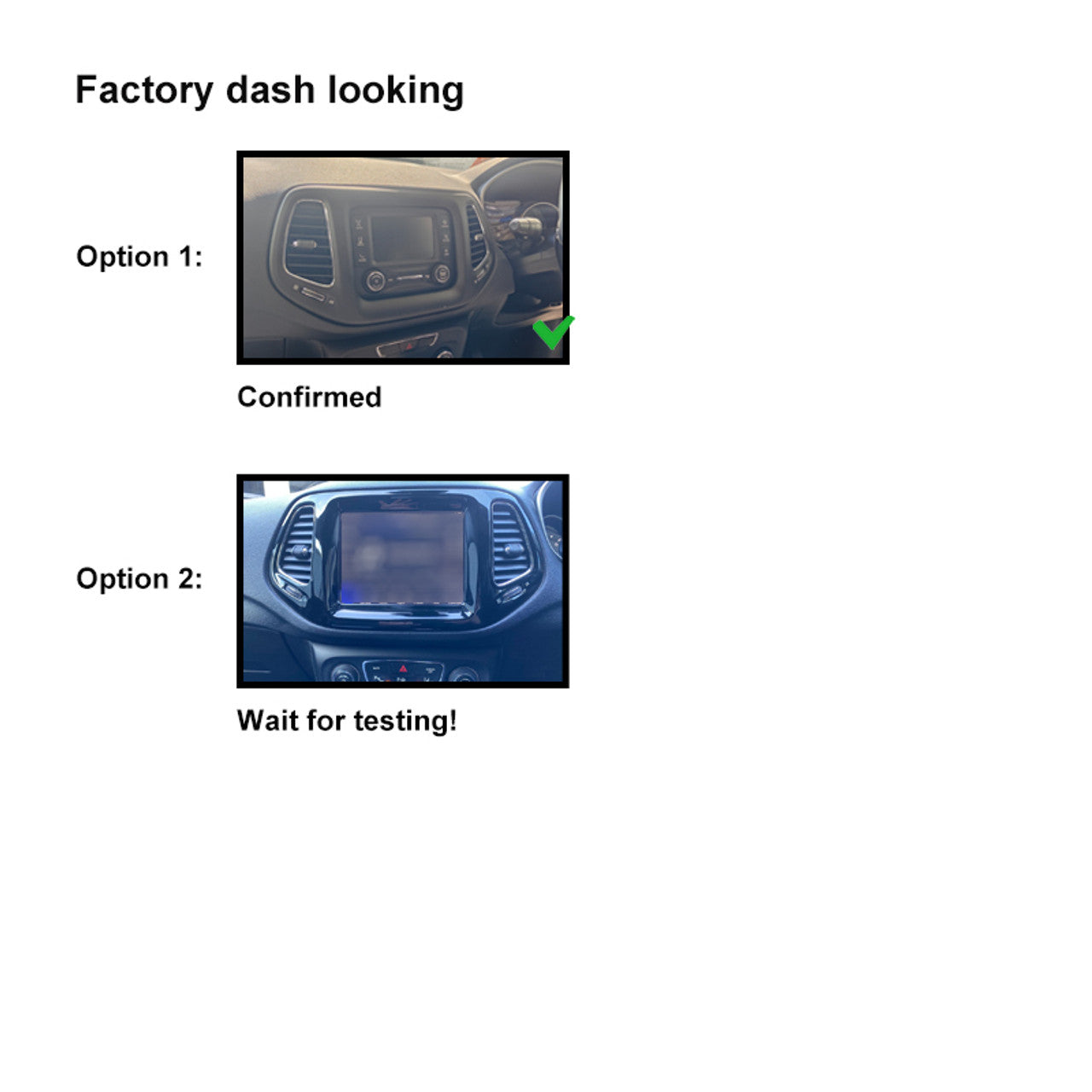

• Option 1 confirmed, Option 2 is awaiting testing.
• Please send a photo of your dashboard, including your car’s year and model, when purchasing, so we can provide the compatible harness.

Main Features

Phonelink Operation

iPhone Connection
The Ultimate Co-Pilot. Enjoy your iPhone apps without the need for cables. Phonelink makes using your iPhone while driving smarter and safer. You can access directions, make calls, send and receive messages, and enjoy your favorite music all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Pair your Android phone wirelessly to the car’s display. Your phone’s apps will appear on the screen, allowing you to get driving directions, make hands-free calls, and much more. Simply plug in and go for a safer, more enjoyable drive.

Built-In GPS
Preloaded GPS data that you can update or purchase from the Google Playstore.

Built-In WiFi & Support for 4G
Connect your stereo to a WiFi network or insert a SIM card to access 4G connectivity.

Bluetooth

• Communication System: BT 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Audio Left (AUX IN_L), Audio Right (AUX IN_R)
• Outputs: Front Left (FL_OUT), Front Right (FR_OUT), Rear Left (RL_OUT), Rear Right (RR_OUT), Subwoofer (SUB_OUT)
• Amplifier Control: AMP

Video

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs

• Radio Antenna Input (RADIO)
• GPS Antenna Input (GPS)
• External Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)
• 5G WiFi and 4G-/+ Support

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables

Note: The accessory package may vary depending on your car model.

General Specifications

• TFT Screen Size: 10"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
