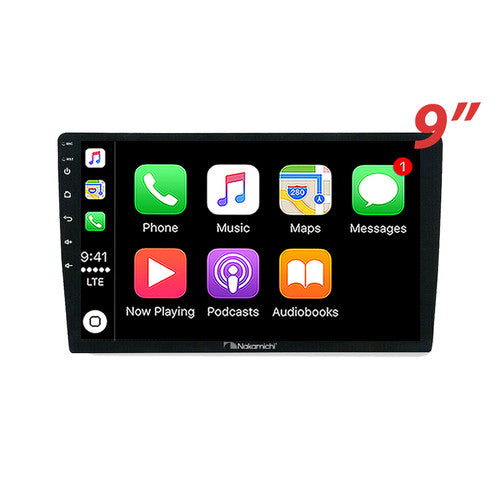

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Kia Carnival 2015-2020

Compatibility:

• For Kia Carnival 2015-2020.

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• Will display car aircon information.
• Extra cost for specific harness if your car has factory navigation or a factory 360° camera.

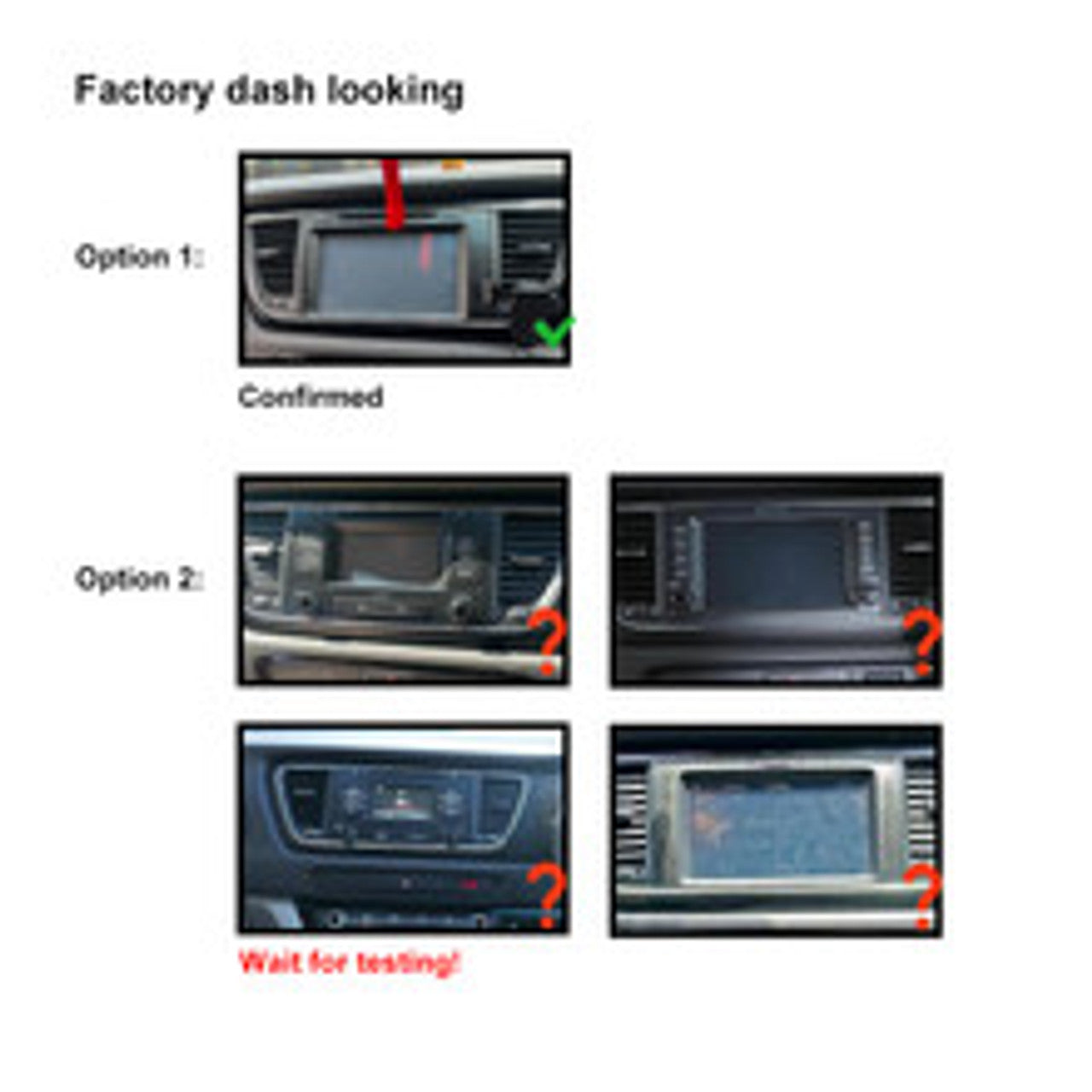

• Only compatible with Option 1 dash look. Other dash options are awaiting testing.
• Please send us a photo of your dashboard along with your car’s year and model when purchasing so we can send the compatible harness.

Main Features

Phonelink Operation

iPhone Connection
The Ultimate Co-Pilot. Enjoy iPhone apps wirelessly. Phonelink provides a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Wirelessly connect your Android phone to your car display. Your phone’s apps will show up on the screen, making it easy to get directions, make hands-free calls, and send messages. Android Auto helps you stay focused on the road while enjoying the ride. Just plug in and go!

Built-In GPS
Preload GPS data, or update and purchase preferred data via the Google Playstore.

Built-In WiFi & Support 4G
Connect the stereo to a WiFi network, or insert a SIM card to access 4G connectivity.

Bluetooth

• Communication System: BT 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Audio Left (AUX IN_L), Audio Right (AUX IN_R)
• Outputs: Front Left (FL_OUT), Front Right (FR_OUT), Rear Left (RL_OUT), Rear Right (RR_OUT), Subwoofer (SUB_OUT)
• Amplifier Control: AMP

Video

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs

• Radio Antenna Input (RADIO)
• GPS Antenna Input (GPS)
• External Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)
• 5G WiFi and 4G-/+ Support

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables

Note: The accessory package may vary depending on your car model.

General Specifications

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
