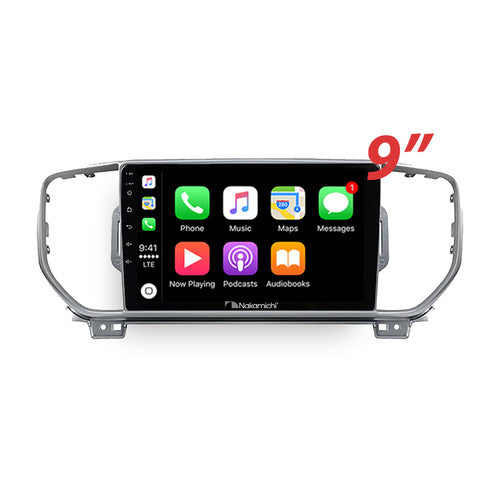

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Kia Sportage 2015-2018

Compatibility:

• For Kia Sportage 2015-2018.

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• Displays car information on-screen.
• Factory dash buttons controlling the original radio will no longer function.
• Please send a photo of your dashboard along with your car’s year and model when purchasing so we can provide you with the compatible harness.

Main Features

Phonelink Operation

iPhone Connection
The Ultimate Co-Pilot. Enjoy iPhone apps wirelessly. Phonelink provides a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and listen to your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Pair your phone without cables and hit the road. Your phone’s apps will appear on the car display, making it easy to get directions, make hands-free calls, or send messages. Android Auto helps you focus on the road while having fun along the way. Just plug in and go!

Built-In GPS
Preload GPS data, or update/purchase your preferred data from the Google Playstore.

Built-In WiFi & Support 4G
Connect the stereo to a WiFi network or insert a SIM card to access 4G connectivity.

Bluetooth

• Communication System: BT 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Audio Left (AUX IN_L), Audio Right (AUX IN_R)
• Outputs: Front Left (FL_OUT), Front Right (FR_OUT), Rear Left (RL_OUT), Rear Right (RR_OUT), Subwoofer (SUB_OUT)
• Amplifier Control: AMP

Video

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs

• Radio Antenna Input (RADIO)
• GPS Antenna Input (GPS)
• External Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)
• 5G WiFi and 4G-/+ Support

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables

Note: The accessory package may vary based on car model.

General Specifications

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nits
• Operating Voltage: 14.4V (10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
