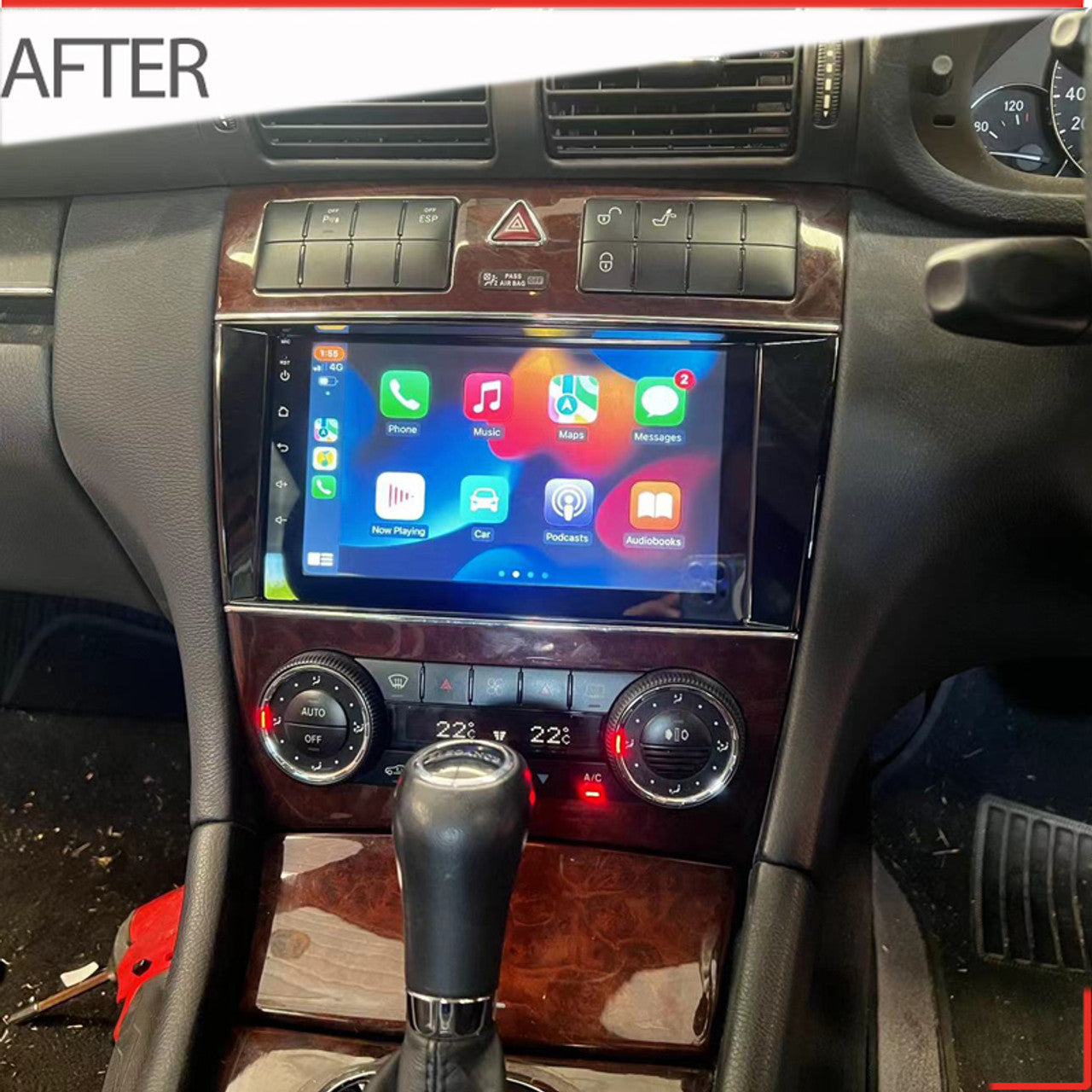

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Mercedes C-Class 2004-2006 W203

Compatibility:

• For Mercedes C-Class 2004-2006 W203.

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• Factory radio size: 262mm (top width) x 240mm (bottom width) x 118mm (height).
• If your car comes with a factory amplified system, an additional cost for the harness will apply.

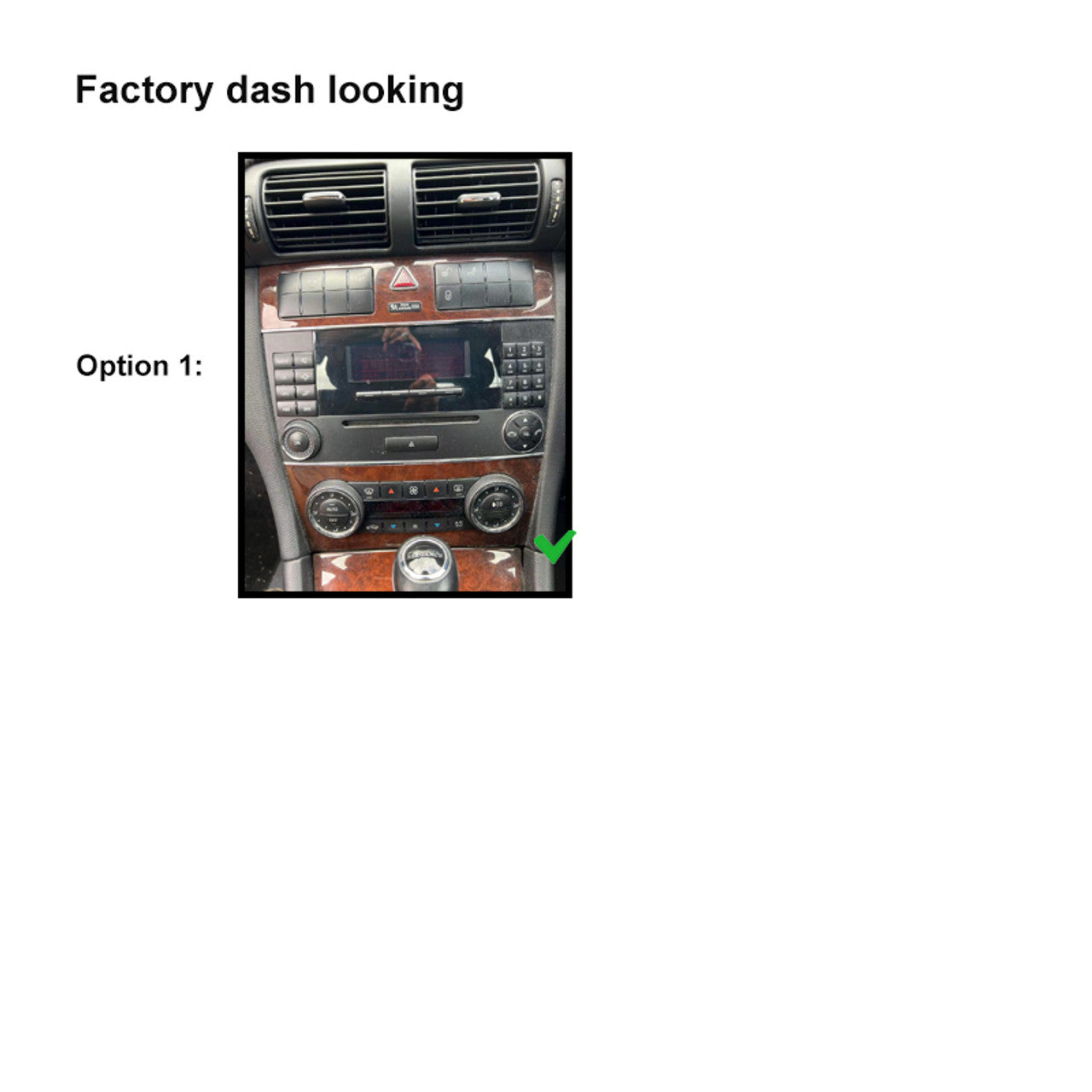

• Please send a photo of your dashboard, along with your car's year and model, when purchasing, so we can provide you with the correct compatible harness.

Main Features

Phonelink Operation
iPhone Connection
The Ultimate Co-Pilot. Enjoy iPhone apps without needing a cable. Phonelink is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Pair your phone without a cable and hit the road. Your phone apps will show up onscreen—just like that. Tap to get driving directions, send a message, or make hands-free calls. Android Auto helps you stay focused on the road while making your ride more enjoyable. Just plug in and go!

Built-In GPS
Preload GPS data, or update or purchase preferred data directly from the Google Play Store.

Built-In Wi-Fi & Support for 4G
Connect your stereo to a Wi-Fi network, or insert a SIM card into the 4G connect module.

Bluetooth

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Input: Audio Left (AUX IN_L), Audio Right (AUX IN_R)
• Outputs: Front Left (FL_OUT), Front Right (FR_OUT), Rear Left (RL_OUT), Rear Right (RR_OUT), Subwoofer (SUB_OUT)
• Amplifier Control: AMP_POW

Video

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs

• Radio Antenna Input
• GPS Antenna Input
• 5G Wi-Fi & 4G-/+
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  Note: For different car models, accessory packages may vary.

General Specifications

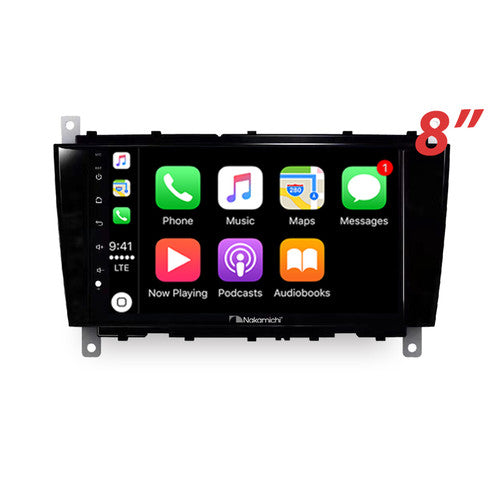

• TFT Screen Size: 8"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
