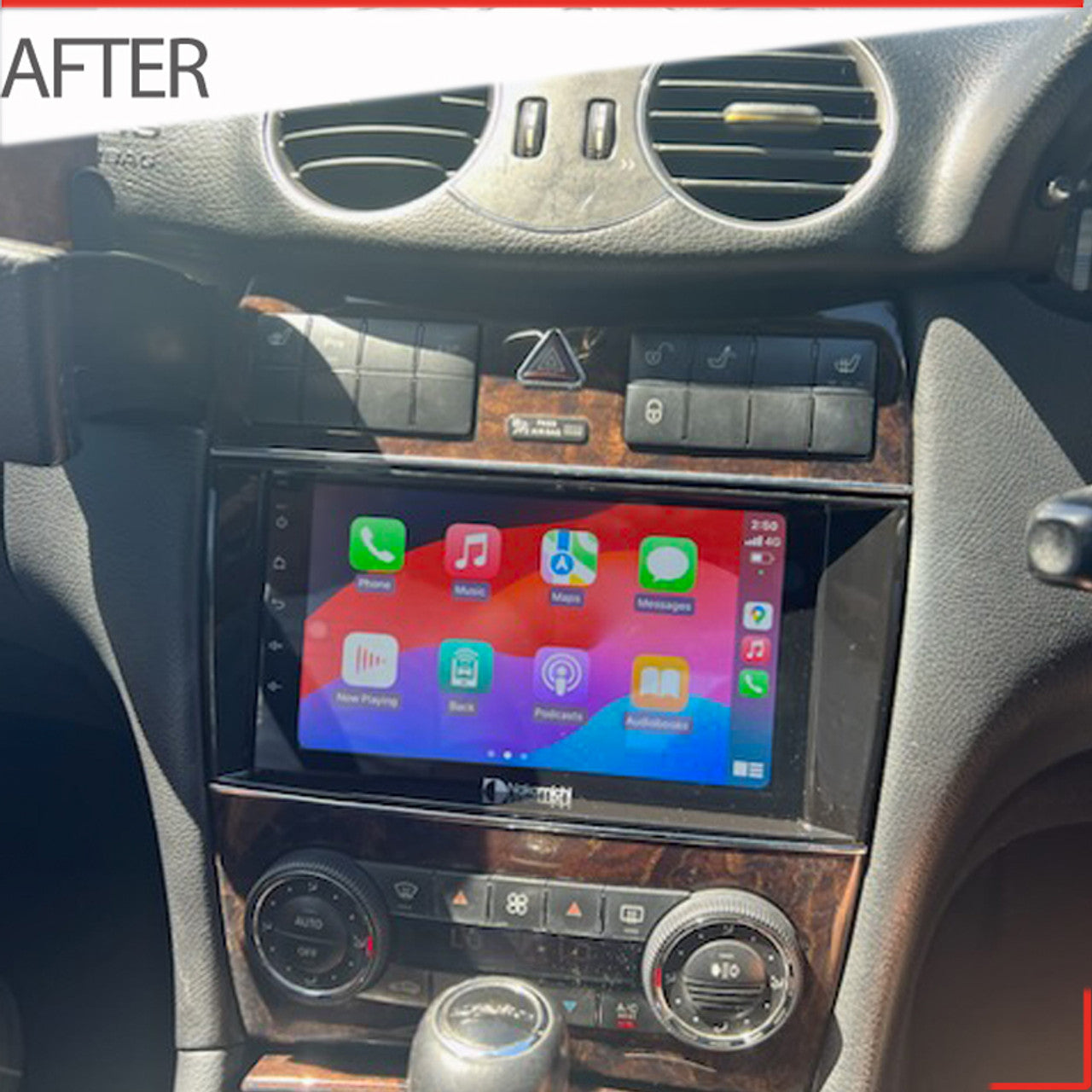

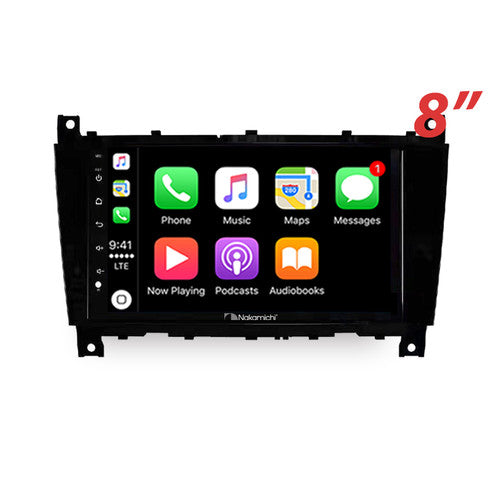

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Mercedes CLK 2005-2008

Compatibility:

• For Mercedes CLK 2005-2008.

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• Factory radio size: 256mm (top width) x 235mm (bottom width) x 116mm (height).
• If your car comes with a factory amplified system, there is an additional cost for the required harness.

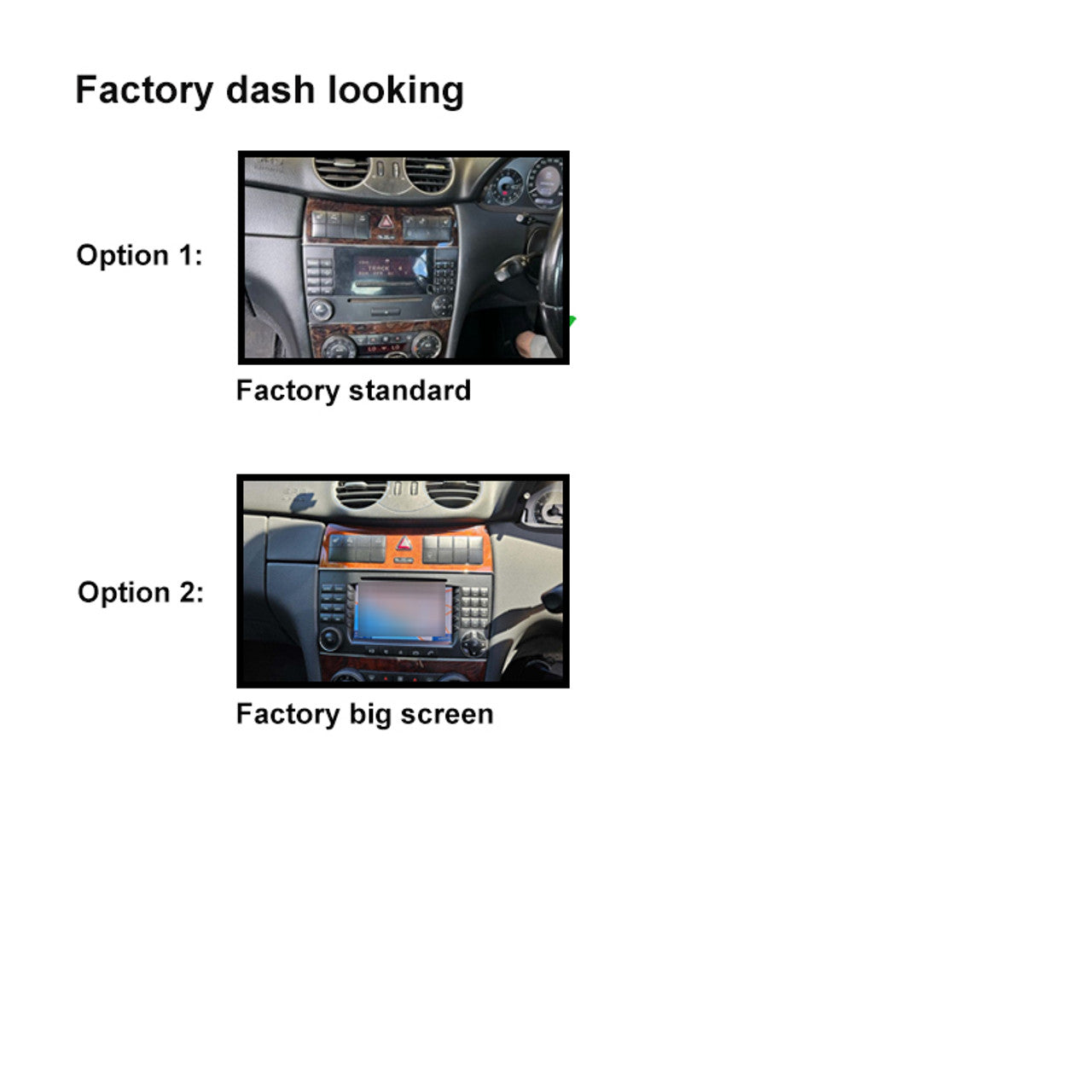

• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide you with the correct compatible harness.

Main Features

PhoneLink Operation

iPhone Connection
Enjoy your iPhone apps without the hassle of cables. PhoneLink offers a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Pair your Android phone wirelessly with the head unit. Your phone's apps will appear on the display for easy access to navigation, hands-free calls, text messages, and more. Android Auto is designed to help you stay focused on the road while you enjoy your drive.

Built-in GPS
Preloaded GPS data available, with the option to update or purchase additional maps and data via the Google Play Store.

Built-in WiFi & 4G Support
Connect your stereo to a WiFi network or insert a SIM card to enable 4G connectivity for streaming, browsing, and navigation.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L & AUX-R: Audio Left and Right Inputs
• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• SUB_OUT: Subwoofer Output
• RL-OUT: Rear Left Speaker Output
• RR-OUT: Rear Right Speaker Output
• AMP_POW: Amplifier Control

Video

• Reverse Camera Video Input
• Front Camera Input
• Extra Video Input

USB Interface

• 4PIN USB: USB Connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB Connection for Music or Video

Other Inputs

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi
• 4G-/+
• Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (Note: For different car models, accessory packages may vary.)

General Specifications

• TFT Screen Size: 8"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
