Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Mercedes E-Class 2002-2008 W211

Compatibility:

• For Mercedes E-Class 2002-2008 W211

Important Notes

• Nakamichi Android System.
• Compatible with steering wheel controls.
• If your car has a factory amplified system, an extra cost for the harness applies. This will require an experienced installer to modify the harness. Please consult with your installer before ordering, as we do not recommend self-installation.

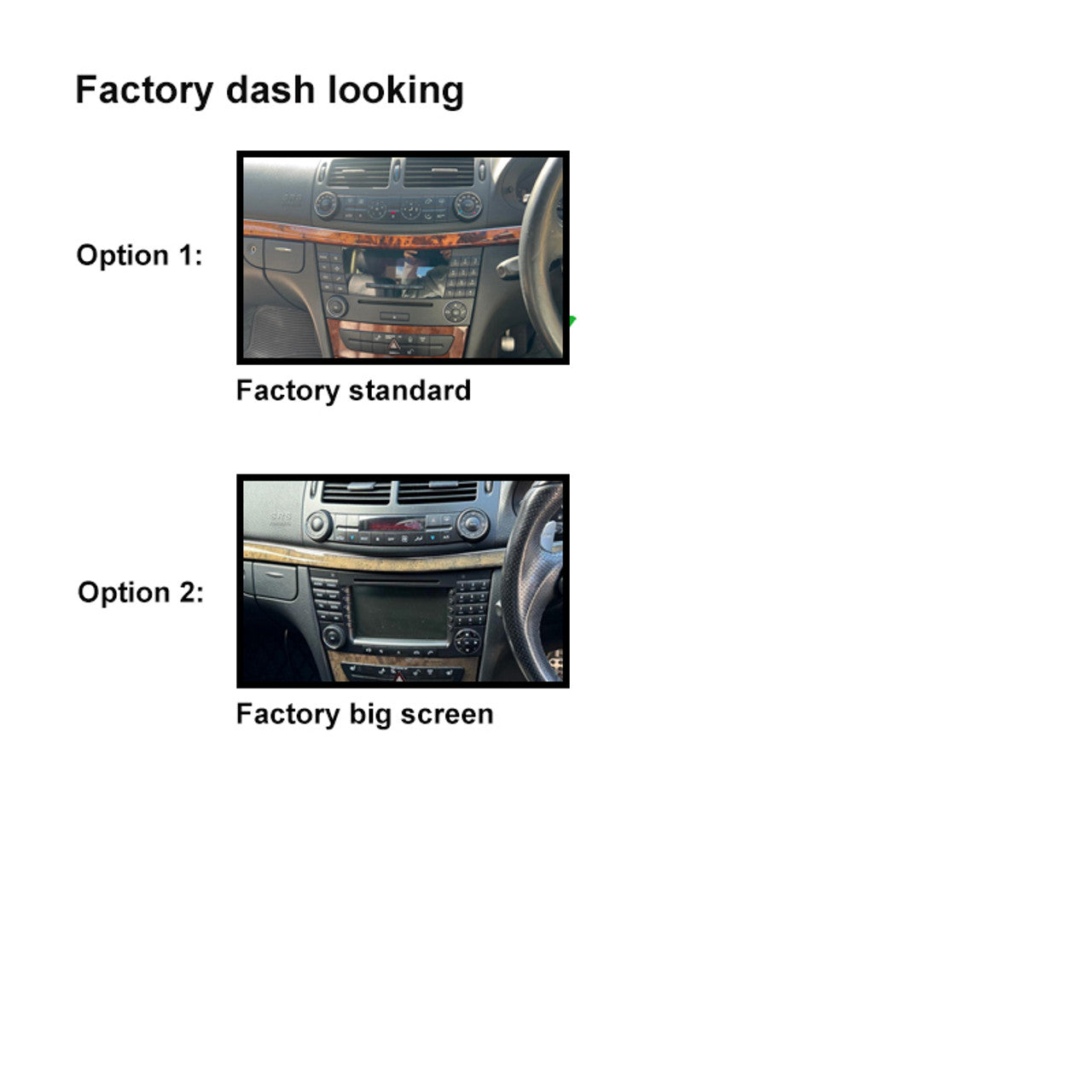

• Please send a photo of your dashboard with the car's year and model when purchasing to ensure we provide the correct compatible harness.

Main Features

PhoneLink Operation

iPhone Connection
The Ultimate Co-Pilot. Enjoy your iPhone apps without cables. PhoneLink is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some specific phone brands)
Pair your Android phone without cables and hit the road. Your Android apps show up onscreen, ready to help you with driving directions, hands-free calls, and much more. Android Auto is designed to help you stay focused on the road and have fun while driving. Just plug in and go!

Built-in GPS
Preloaded GPS data available, and you can update or purchase additional data from the Google Play Store.

Built-in WiFi & 4G Support
Connect your stereo to a WiFi network, or insert a SIM card to use the 4G connection for seamless browsing, navigation, and more.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX-L & AUX-R: Audio Left and Right Inputs
• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• SUB_OUT: Subwoofer Output
• RL-OUT: Rear Left Speaker Output
• RR-OUT: Rear Right Speaker Output
• AMP_POW: Amplifier Control

Video

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4PIN USB: USB Connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB Connection for Music or Video

Other Inputs

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi
• 4G-/+
• Microphone Port (MIC)
• Brake Detection (BRAKE)
• Canbus Box Interface (Can RX/TX)

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (Note: For different car models, accessory packages may vary.)

General Specifications

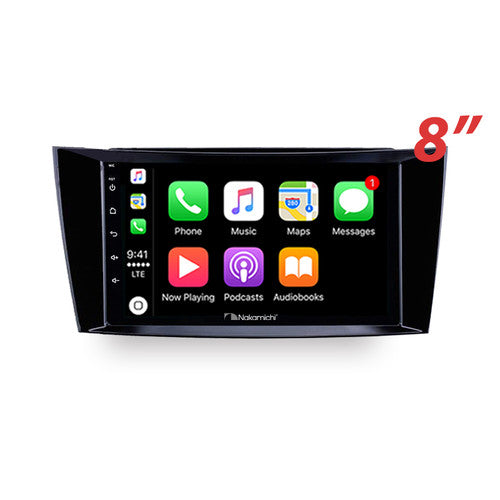

• TFT Screen Size: 8"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
