Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for MG GS 2016+

Compatibility:

• For MG GS 2016+

Important Notes

• Nakamichi Android System included.
• Fully compatible with steering wheel controls.
• Works with the factory reverse camera.
• Retains factory air conditioning information on the display.

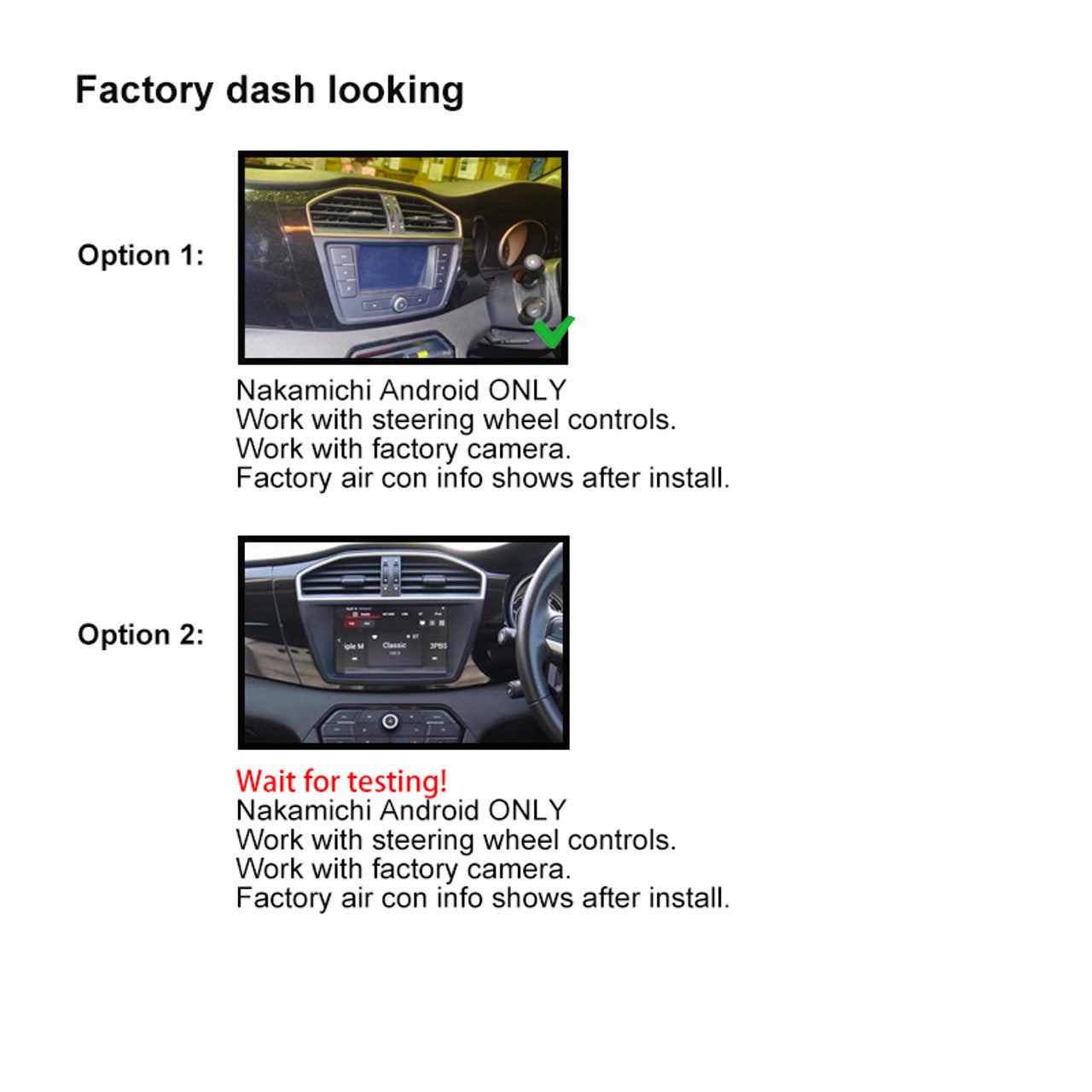

• Option 1: Confirmed compatibility.
• Option 2: Awaiting testing.
• Please send a photo of your dashboard with car year and model when purchasing, so we can send the compatible harness.

Key Features

PhoneLink Operation

iPhone Connection
Experience wireless CarPlay for a smarter, safer driving experience. Use your iPhone apps without the need for cables. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display. iOS CarPlay also introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Android Phone Connection (Wired for specific phone brands)
Pair your Android phone to the car display, and your phone apps will show up onscreen. Tap to get driving directions, send hands-free texts, and make calls. It’s made to help you stay focused on the road while making your drive more enjoyable.

Built-in GPS
Preloaded GPS data for easy navigation. You can also update or purchase preferred data directly from the Google Play Store.

Built-in WiFi & 4G Support
Connect the stereo to your WiFi network, or insert a SIM card to enable 4G connectivity for mobile data on the go.

Bluetooth

• Bluetooth system: BT 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX IN_L & AUX IN_R: Audio Left and Right Inputs
• FL_OUT & FR_OUT: Front Left and Right Speaker Outputs
• RL_OUT & RR_OUT: Rear Left and Right Speaker Outputs
• SUB_OUT: Subwoofer Output
• AMP_POW: Amplifier Control

Video

• Reverse Camera Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface

• 4-Pin USB: Connection for PhoneLink (iPhone or Android)
• 6-Pin USB: USB connection for Music or Video

Other Inputs

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi and 4G-/+
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes

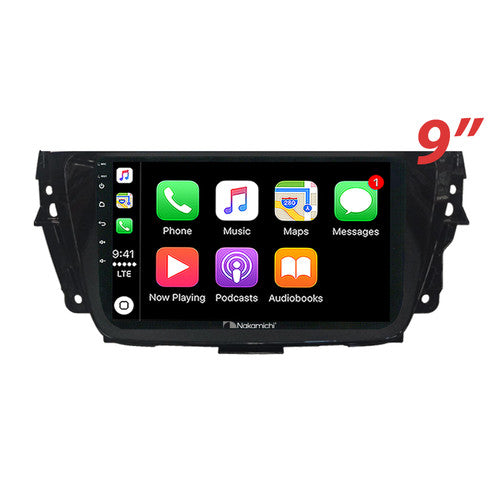

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (Note: For different car models, accessory packages may vary.)

General Specifications

• TFT Screen Size: 9"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
