Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Toyota Landcruiser 2007-2015 Sahara

Compatibility:

• For Toyota Landcruiser (2007-2015 Sahara)

Important Notes:

System: Nakamichi Android
Steering Wheel Control: Compatible
Factory Camera: Compatible with factory reverse camera
Aircon Information: Displays air conditioning information on-screen

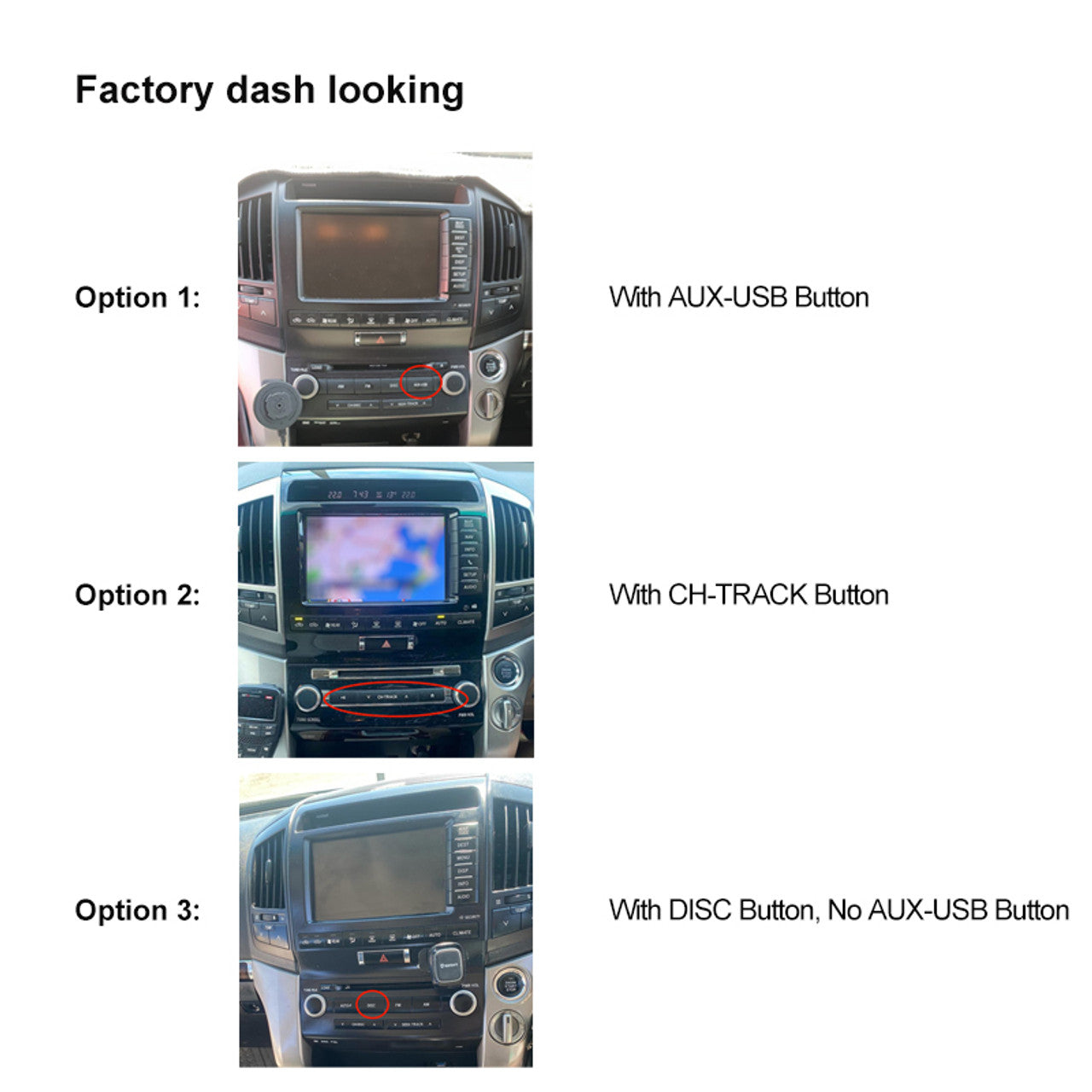

• Option 1: Dash A confirmed (requires modification to the factory dash)
• Option 2: Dash B is being tested (confirmation pending)
• Option 3: Dash C confirmed (requires modification to the factory dash)
  Dash Photo: Please send a photo of your dashboard along with the car year and model when you purchase to ensure the correct harness is sent.

Main Features:

PhoneLink Operation:

iPhone Connection (Wireless CarPlay):
Enjoy iPhone apps without the need for cables. PhoneLink provides a smarter, safer way to use your iPhone while driving. Access navigation, make calls, send messages, and enjoy music—all on your car's built-in display.

Android Phone Connection (Wired for Some Specific Phone Brands):
Pair your Android phone wirelessly or via USB to display apps on the car screen. Get directions, make hands-free calls, and enjoy music with ease. Just plug in and go—designed to help you stay focused on the road.

Built-in GPS:
Preloaded GPS data with the ability to update or purchase additional data via the Google Play Store.

Built-in Wi-Fi & 4G Support:
Connect to Wi-Fi networks or insert a SIM card for 4G connectivity to stay connected while on the move.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4x50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right
• Outputs: Front Left/Right, Rear Left/Right, Subwoofer, Amplifier Control

Video Inputs:

• B.CAMERA: Reverse Camera Input
• F.CAMERA: Front Camera Input
• CVBS: Extra Video Input

USB Interface:

• 4Pin USB: Connection for PhoneLink (iPhone or Android)
• 6Pin USB: Connection for Music or Video

Other Inputs:

• Radio Antenna Input
• GPS Antenna Input
• 5G Wi-Fi
• 4G-/+
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes:

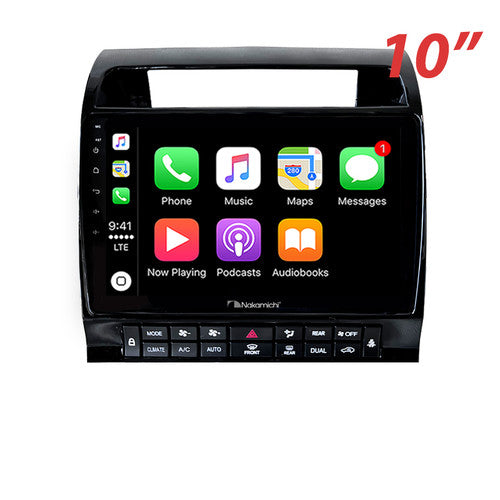

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Wi-Fi/BT/Camera Cable
• 1 x Rear Left/Right Speaker Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (*Accessories may vary depending on the car model.)

General Specifications:

• Screen Size: 10” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
