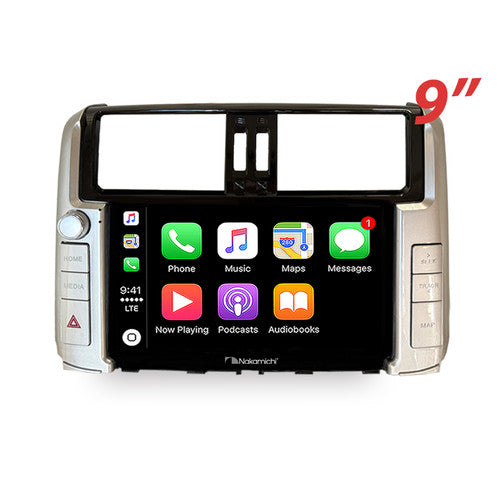

Nakamichi Android Wireless Apple CarPlay & Android Auto Sat Nav Solution for Toyota Prado 2009-2013

Compatibility:

• for Toyota Prado 2009-2013

Important Notes

• Nakamichi Android System.
• Steering wheel control compatibility.
• Based on factory system, if the factory system is not functioning properly, it will not be compatible.
• The factory DVD player and roof-mounted monitor will retain the ability to play DVDs after installation.
• Please send a photo of your dashboard along with your car's year and model when purchasing to receive the compatible harness.

Key Features

PhoneLink Operation

iPhone Connection
The ultimate co-pilot. Enjoy iPhone apps without cables. PhoneLink is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (Wired for some devices)
Wirelessly pair your Android phone and hit the road. Your phone's apps will appear on the car display, allowing you to easily access driving directions or make hands-free calls. Android Auto is designed to help you stay focused on the road and enjoy the journey.

Built-in GPS
Preload GPS data, or update/purchase preferred maps from Google Play Store.

Built-in WiFi & Support 4G
Connect the stereo to a WiFi network or insert a SIM card to enable 4G connectivity.

Bluetooth

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Maximum Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output

• Max Power Output: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Input (Left & Right)
• Front Left/Right Speaker Outputs
• Subwoofer Output
• Amplifier Control
• Rear Left/Right Speaker Outputs

Video Inputs and Outputs

• Reverse Camera Input
• Front Camera Input
• Extra Video Input (CVBS)

USB Connections

• 4-Pin USB: Connection for PhoneLink (iPhone or Android)
• 6-Pin USB: Connection for Music or Video

Other Inputs

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi Support
• 4G-/+ Support
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (Note: Accessories may vary depending on the car model.)

General Specifications

• Screen Size: 9" TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Output: 5V/1A
• Supported Video Formats: H264/MP4/AVI/MKV/FLV
• Supported Audio Formats: MP3/APE/AAC/FLAC
