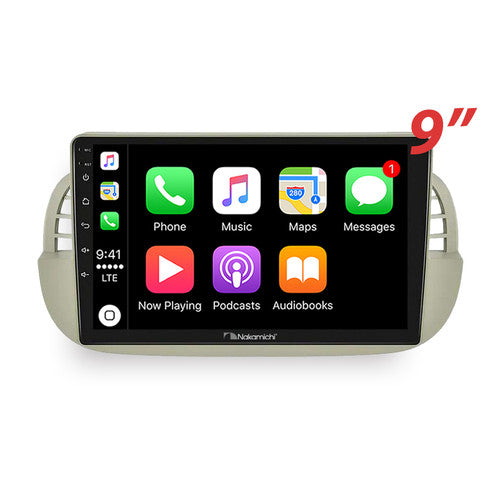

Nakamichi Android Wireless Apple CarPlay & Android Auto Solution for Fiat 500 (2008-2014) with Built-In Navigation

Compatibility:

• For Fiat 500 (2008-2014)

IMPORTANT NOTE

• Features the Nakamichi Android System
• Fully compatible with Steering Wheel Controls

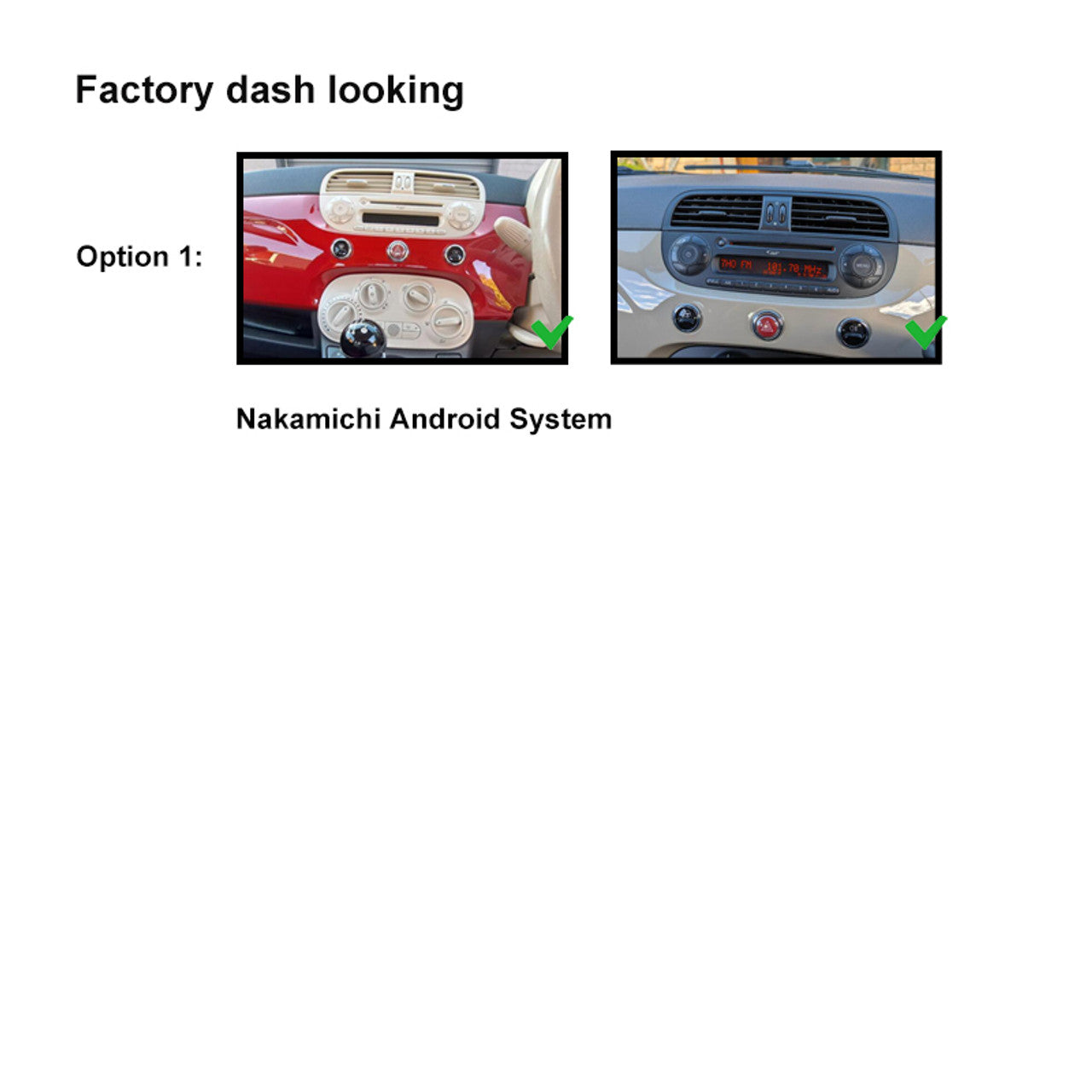

• Designed for Option 1 dash appearance
• Please send a photo of your car's dashboard along with the year and model when purchasing, so we can provide the appropriate harness for installation.

KEY FEATURES

PHONE LINK FUNCTIONALITY
iPhone Connection:
Enjoy seamless integration with your iPhone, using apps wirelessly for a smarter, safer driving experience. Access navigation, make calls, send and receive messages, and stream music—all through your car’s display.

Android Connection (Wired for specific brands):
Easily connect your Android phone to the car's display. With a simple tap, your apps appear on screen, allowing hands-free calling, navigation, and more—all while staying focused on the road.

BUILT-IN GPS
Preloaded with GPS data and supports updates or additional maps from the Google Play Store.

WI-FI & 4G SUPPORT
Connect the system to a Wi-Fi network or insert a SIM card for 4G connectivity.

BLUETOOTH 5.0

• Communication System: Bluetooth 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

RADIO

• FM Frequency Range: 87.5-108.0 MHz
• AM Frequency Range: 522-1620 KHz
• Preset Stations: 18 FM, 12 AM

AUDIO SPECIFICATIONS

• Max Power: 4x50W
• Pre-output Voltage: 4V/10KΩ
• Impedance: ≤600Ω
• Compatible with 4-8Ω speakers

VIDEO INPUT OPTIONS

• Reverse Camera Input
• Front Camera Input
• Extra Video Input (CVBS)

USB CONNECTIONS

• 4-Pin USB: PhoneLink for iPhone or Android
• 6-Pin USB: For music or video playback

ADDITIONAL INPUTS

• Radio Antenna
• GPS Antenna
• 5G Wi-Fi
• 4G Antenna
• External Microphone
• Brake Detection
• CANbus Box Interface

PACKAGE CONTENTS

• Nakamichi Head Unit with Fascia
• Main Harness
• RCA Cable
• WiFi/BT/Camera Cable
• Left/Right Rear Speaker Cable
• Microphone
• 4G Antenna
• GPS Antenna
• User Manual
• 2 USB Cables

(Note: Some accessories may vary depending on your specific vehicle model.)

TECHNICAL SPECIFICATIONS

• Screen Size: 9-inch TFT Display
• Operating System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• Storage: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nit
• Operating Voltage: 14.4V (range: 10.5V-16V)
• USB Output: 5V/1A
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
