Nakamichi Android Wireless PhoneLink & Sat Nav Solution for Toyota Vehicles

Compatible Models:

• Toyota 86 (ZN6) 2012+
• Toyota Avensis Verso (2000-2009)
• Toyota Camry (2002-2006)
• Toyota Celica (1999-2005)
• Toyota Corolla (2002-2013)
• Toyota Echo (1999-2005)
• Toyota Estima/Tarago (2000-2006)
• Toyota Estima/Tarago (2006-2014)
• Toyota FJ Cruiser (2011+)
• Toyota Hiace (2005+)
• Toyota Hilux (2005-2013)
• Toyota Kluger (2003-2013)
• Toyota Landcruiser (100 Series) (2003-2006)
• Toyota Landcruiser (200 Series) (2007-2014)
• Toyota Landcruiser Prado (120 Series) (2003-2009)
• Toyota MR2 (2000-2002)
• Toyota RAV4 (2000-2011)
• Toyota Rukus (2006+)
• Toyota Yaris (2005-2014)

Important Notice:

• Fully compatible with Steering Wheel Controls.
• Supports AHD aftermarket reverse cameras.

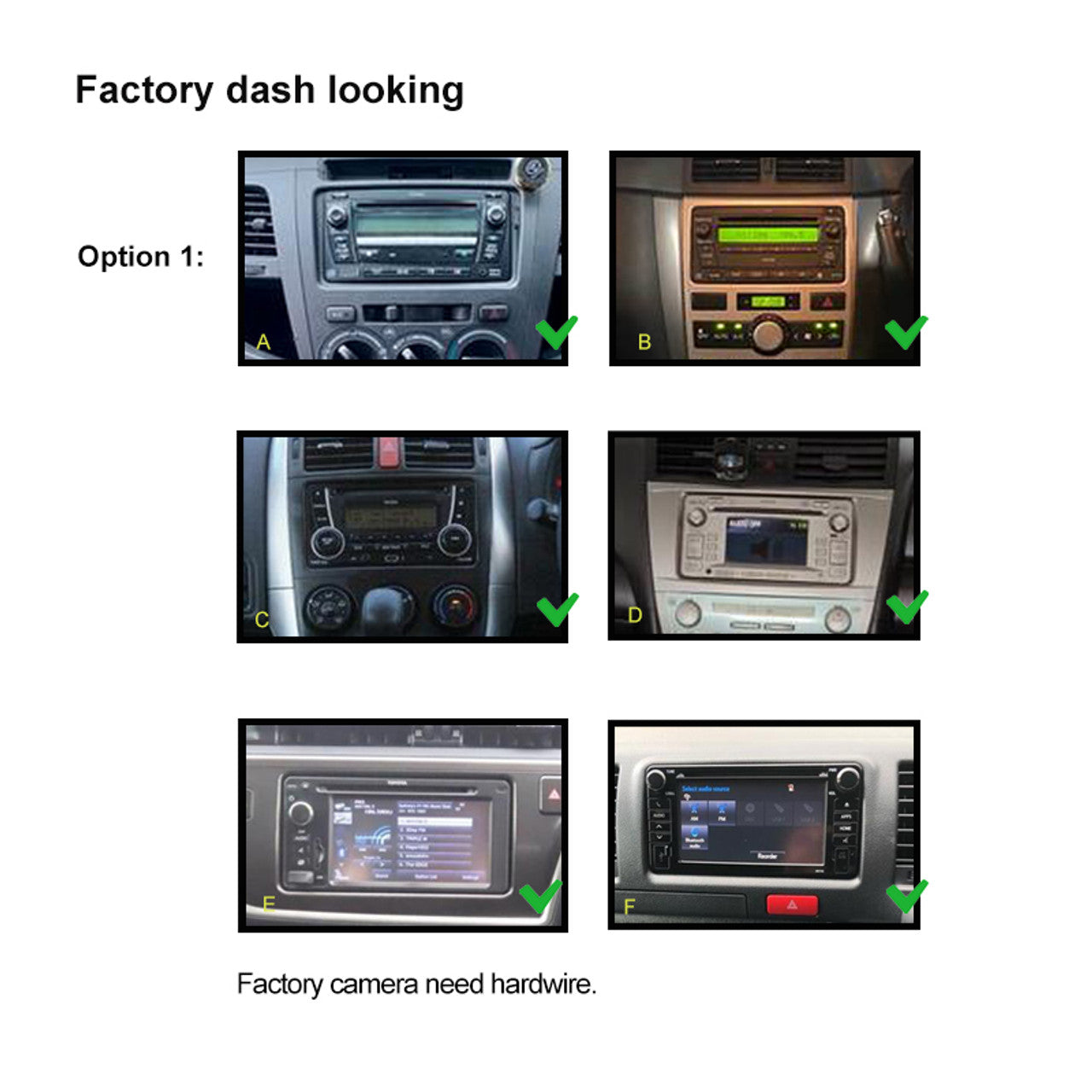

• For factory cameras, professional installation may be required, or an additional camera adapter can be purchased at extra cost.
• Please send us a dashboard photo with your vehicle’s year and model when purchasing to ensure we send you the correct harness.

Key Features:

PhoneLink Operation:
iPhone Connection (Wireless):
Enjoy your iPhone apps wirelessly, with no cables needed. Navigate, make calls, send messages, and listen to music—all from your car’s built-in display. With iOS, CarPlay offers new app categories and personalized wallpapers for a unique driving experience.

Android Phone Connection (Wireless, Wired for some brands):
Connect your Android device wirelessly to the car display. Access your apps, get driving directions, send texts hands-free, and make calls—all while staying focused on the road. Some phone models may require a wired connection.

Built-In GPS & WiFi Support:
Preload GPS data and access updates through the Google Playstore. Easily connect your stereo to WiFi, or use a SIM card for 4G connectivity, keeping you connected and ready for navigation and media.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• 18 FM presets and 12 AM presets for easy access.

Audio Features:

• Max Power Output: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4–8Ω
• AUX Inputs for left and right audio channels.

Video Inputs/Outputs:

• Reverse Camera Input (B.CAMERA) and Extra Video Input (CVBS)
• Front Camera Input (F_CAMERA)
• Video Output Options (V-OUT1, V-OUT2).

USB Interface:

• 4-pin USB for PhoneLink (iPhone or Android)
• 6-pin USB for music and video playback.

Additional Inputs/Outputs:

• Radio Antenna, GPS Antenna, and External Microphone Input
• Canbus Box Interface for vehicle-specific integration
• Parking Brake detection and Amplifier control outputs.

Package Includes:

• Nakamichi Head Unit
• Main Harness
• RCA Cable
• WiFi/BT/Camera Cable
• RL/RR Cables
• Microphone
• 4G Antenna
• GPS Antenna
• 2 USB Cables
• User Manual
  (Note: Accessory packages may vary by vehicle model.)

General Specifications:

• 7” TFT Display with 1280x720 resolution (IPS)
• 500 nits brightness for clarity in various lighting conditions
• NK 12.0 System with 8-Core Cortex-A55 CPU
• 4GB RAM and 32GB ROM for smooth performance
• Operating Voltage: 14.4V (range: 10.5V–16V)
• USB Charging/Reading Support (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
