Nakamichi Android Wireless PhoneLink & Sat Nav Solution for Volkswagen Vehicles

Compatible Models:

• Volkswagen Amarok (2011+)
• Volkswagen Beetle (2012-2015)
• Volkswagen Caddy (2005-2015)
• Volkswagen Caravelle (2010-2015)
• Volkswagen CC (2012-2015)
• Volkswagen EOS (2007-2014)
• Volkswagen Golf (2004-2013)
• Volkswagen Jetta (2005-2015)
• Volkswagen Multivan (2010-2016)
• Volkswagen Passat (2006-2015)
• Volkswagen Polo (2010-2014)
• Volkswagen Tiguan (2008-2015)
• Volkswagen Transporter (2010-2016)

Important Notice:

• Fully compatible with Steering Wheel Controls.
• Works with AHD aftermarket reverse cameras.
• For factory cameras, professional installation is required to hardwire or an additional camera adapter may be needed (extra cost).

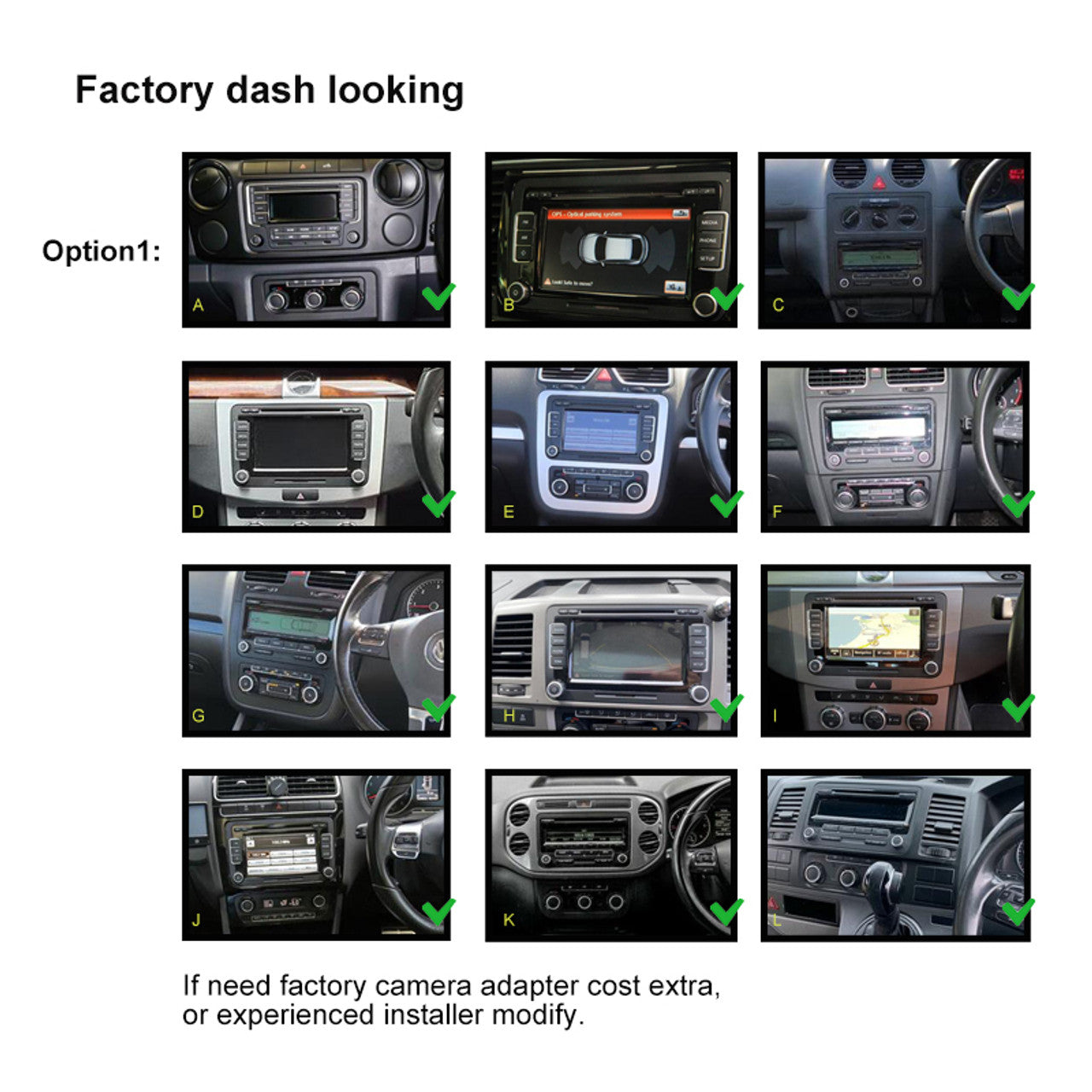

• Please send us a photo of your dashboard along with your car’s year and model during purchase for us to provide the correct harness.

Key Features:

PhoneLink Operation:

iPhone Connection (Wireless):
Enjoy your iPhone apps wirelessly, with no cables needed. Get directions, make calls, send messages, and enjoy music on your car’s built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers to enhance your experience.

Android Phone Connection (Wireless, Wired for some brands):
Wirelessly pair your Android phone to the car display for instant access to your apps. Get directions, send hands-free texts, and make calls while staying focused on the road. Some specific phone brands may require a wired connection.

Built-In GPS & WiFi Support:
Preload GPS data and purchase updates from the Google Playstore. Easily connect your stereo to WiFi or use a SIM card to enable 4G connectivity for seamless navigation and media access.

Bluetooth Connectivity:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Maximum Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• 18 FM and 12 AM preset stations for easy access.

Audio Features:

• Max Power: 4×50W
• Pre-output: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4–8Ω
• AUX inputs for left and right audio devices.

Video Inputs/Outputs:

• Reverse Camera (B.CAMERA) and Extra Video Input (CVBS)
• Front Camera Input (F_CAMERA)
• Video Output Options (V-OUT1, V-OUT2).

USB Interface:

• 4-pin USB for PhoneLink (iPhone or Android)
• 6-pin USB for music and video playback.

Additional Inputs/Outputs:

• Radio Antenna, GPS Antenna, and External Microphone Input
• Canbus Box Interface for vehicle-specific integration
• Parking Brake detection and Amplifier control.

Package Includes:

• Nakamichi Head Unit
• Main Harness
• RCA Cable
• WiFi/BT/Camera Cable
• RL/RR Cables
• Microphone
• 4G Antenna
• GPS Antenna
• 2 USB Cables
• User Manual
  (Accessory packages may vary based on vehicle model.)

General Specifications:

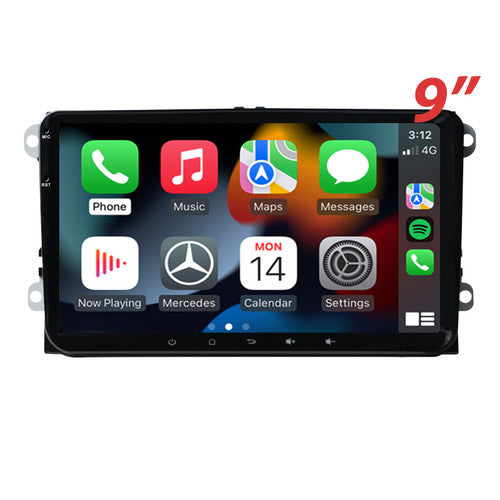

• 9” TFT Display with 1280x720 resolution (IPS)
• 500 nits brightness for clear visibility
• Powered by NK 12.0 System with 8-Core Cortex-A55 CPU
• 4GB RAM and 32GB ROM
• Operating Voltage: 14.4V (range: 10.5V–16V)
• USB Charging/Reading Support (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
