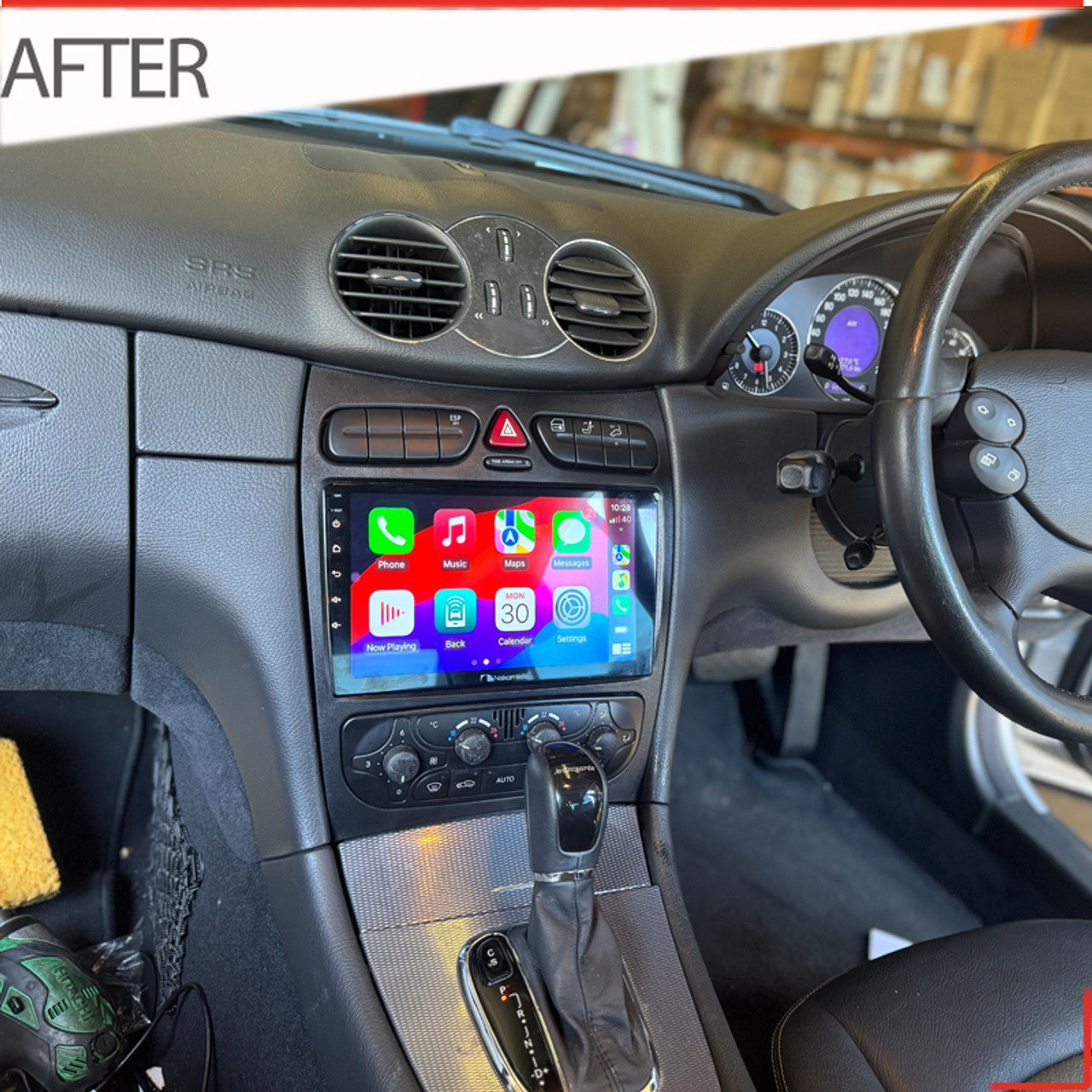

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mercedes CLK 2001-2004

Compatibility:

• For Mercedes CLK 2001-2004.

Important Notes

• Compatible with steering wheel controls.
• If your car has a factory fiber optic system, there will be an additional cost for the AMP module.

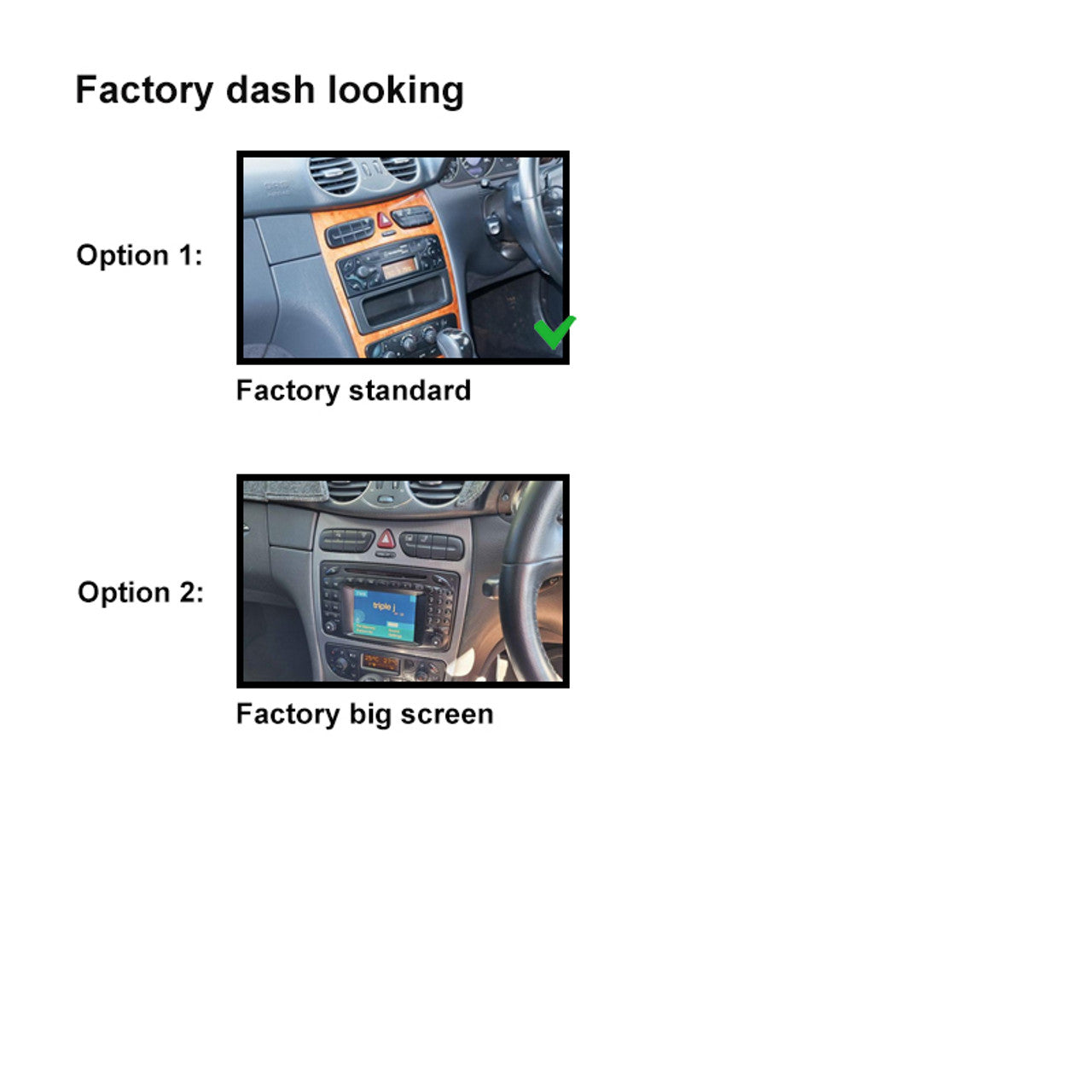

• Please send a photo of your dashboard along with your car's year and model when purchasing, so we can provide you with the correct compatible harness.

Main Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without the need for cables. CarPlay makes it smarter and safer to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music, all displayed on your car's built-in screen. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for Some Specific Phone Brands)
Pair your Android phone wirelessly, and you're ready to hit the road. Your Android apps will appear onscreen for easy access to navigation, texting, and hands-free calling. Android Auto helps you stay focused on the road while making the driving experience more enjoyable.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Inputs: AUX-L (Left), AUX-R (Right)

Video

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1, V-OUT2

USB Interface

• USB Connection for CarPlay / Android Auto (CP/AA)
• USB Connection for Music or Video

Other Inputs

• Radio Antenna Input (ANT)
• Microphone Input (MIC)

RCA Cable Outputs

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes

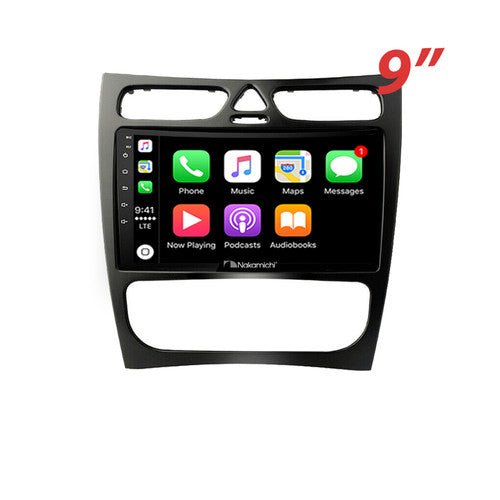

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  Note: For different car models, accessory packages may vary.

General Specifications

• TFT Screen Size: 9"
• Display Resolution: 1240x600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
