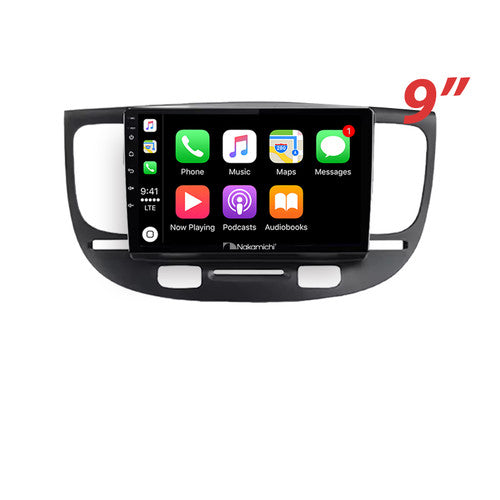

Nakamichi Wireless Apple CarPlay & Android Auto for Kia RIO 2005-2011

Compatibility:

• For Kia RIO 2005-2011

Important Notes:

• Compatible with Steering Wheel Controls

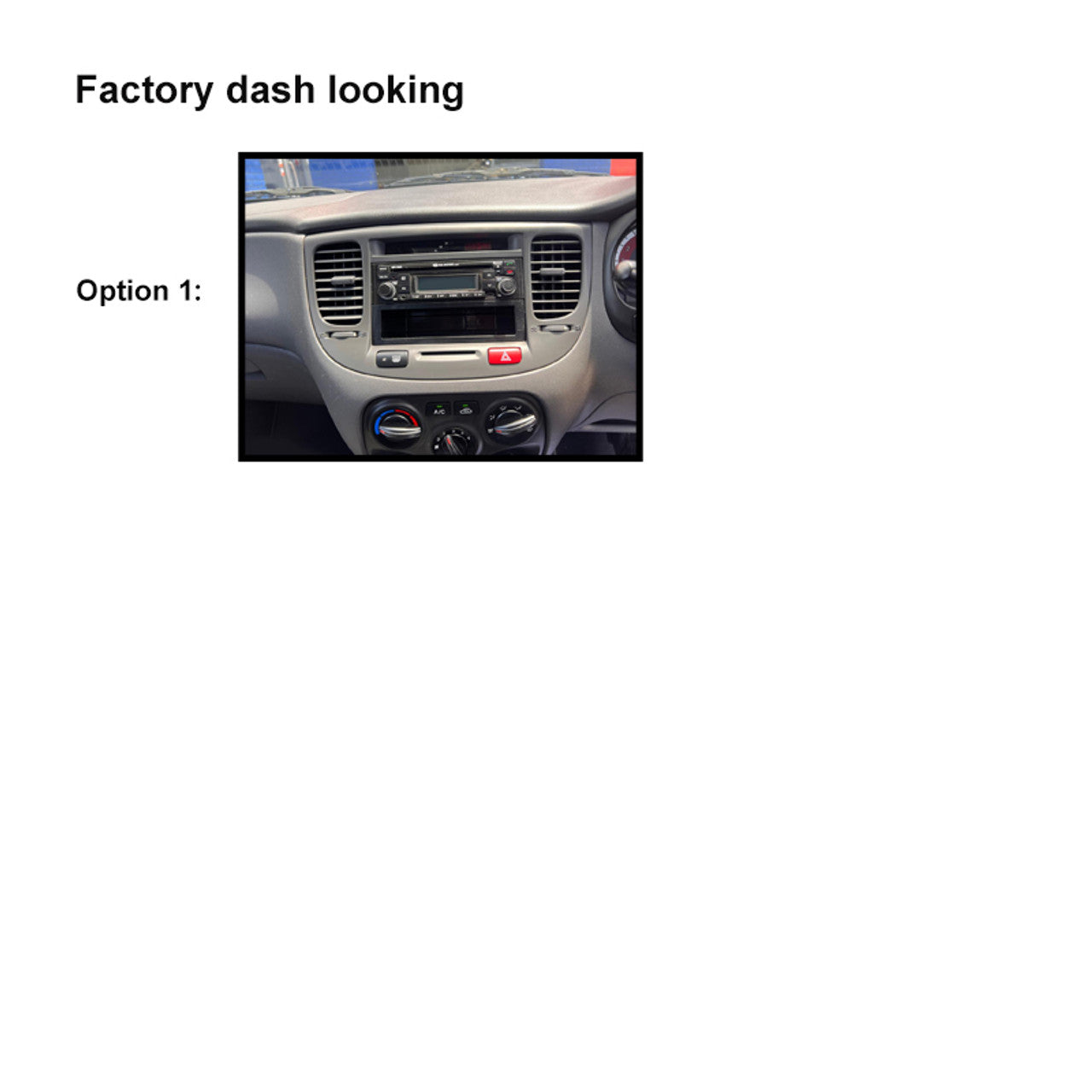

• Please send a photo of your dashboard along with your car’s year and model when purchasing to ensure we send you the correct harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Use CarPlay wirelessly to access maps, make calls, send and receive messages, and enjoy music—all on your car’s display. With iOS, CarPlay offers new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for some phones):

• Connect your Android phone wirelessly to your car’s display. Use apps, get directions, send texts, and make hands-free calls, all while keeping your focus on the road. Simply plug in and go!

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio:

• Max Power: 4x50W
• Pre-output: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs (Rear): Left & Right

Video Inputs & Outputs:

• R-CAM: Reverse Camera Input (Rear)
• V-IN: Extra Video Input (Rear)
• V-OUT1: Video Output 1 (Rear)
• V-OUT2: Video Output 2 (Rear)

USB Interfaces:

• CP/AA: USB for CarPlay/Android Auto (Rear)
• USB: USB for Music or Video (Rear)

Other Inputs (Rear):

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable Outputs:

• Front Left/Right Speaker Output
• Rear Left/Right Speaker Output
• Subwoofer Output
• Canbus Connector
• Parking Brake & Amplifier Control

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  (*Package contents may vary based on car model.)

General Specifications:

• Screen Size: 9” TFT
• Display Resolution: 1240x600
• Contrast Ratio: 500
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
