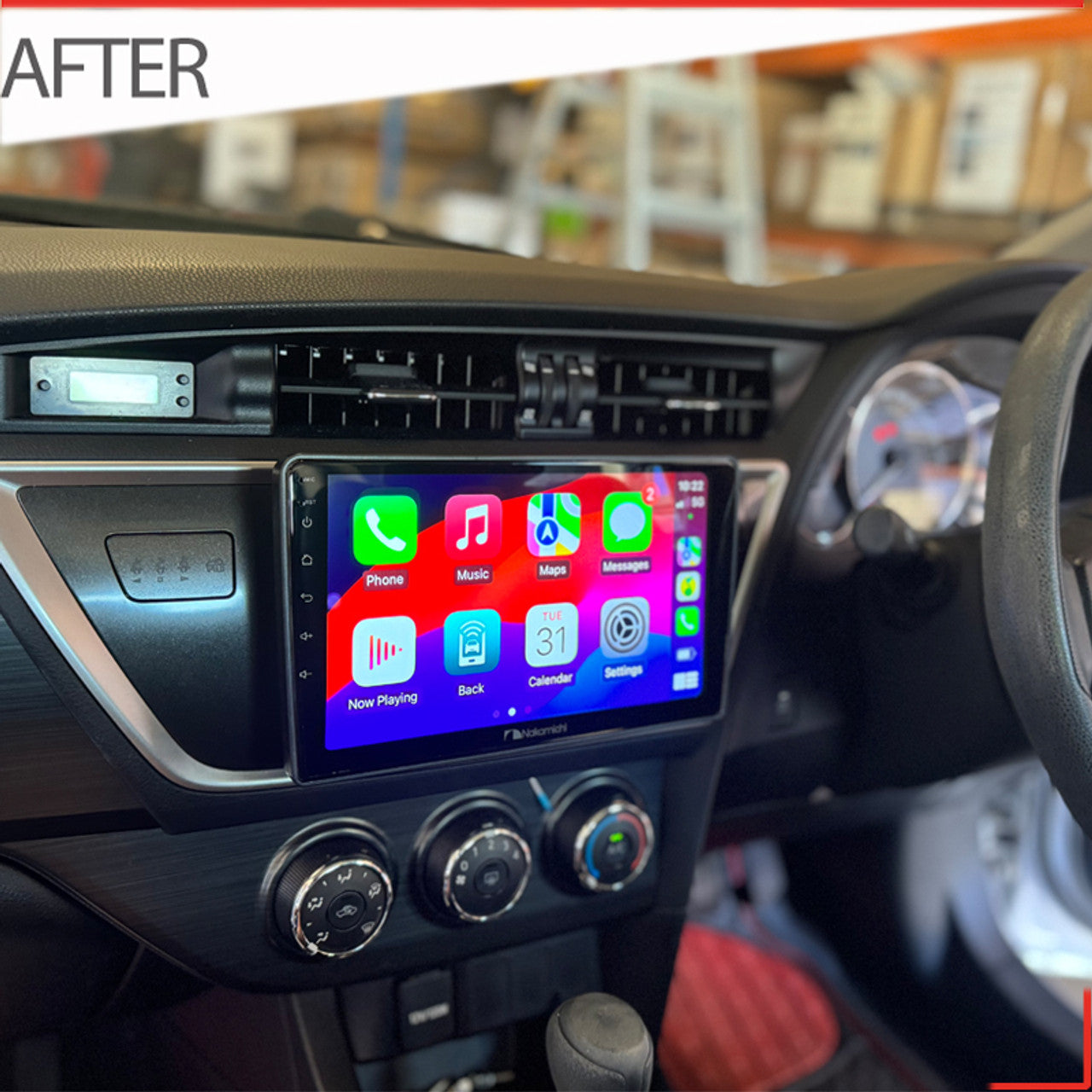

Nakamichi Wireless Apple CarPlay & Android Auto for Toyota Corolla 2012-2015 Hatch

Compatibility:

• For Toyota Corolla 2012-2015 Hatch

Important Notes:

• Compatible with Steering Wheel Controls
• Works with factory reverse camera

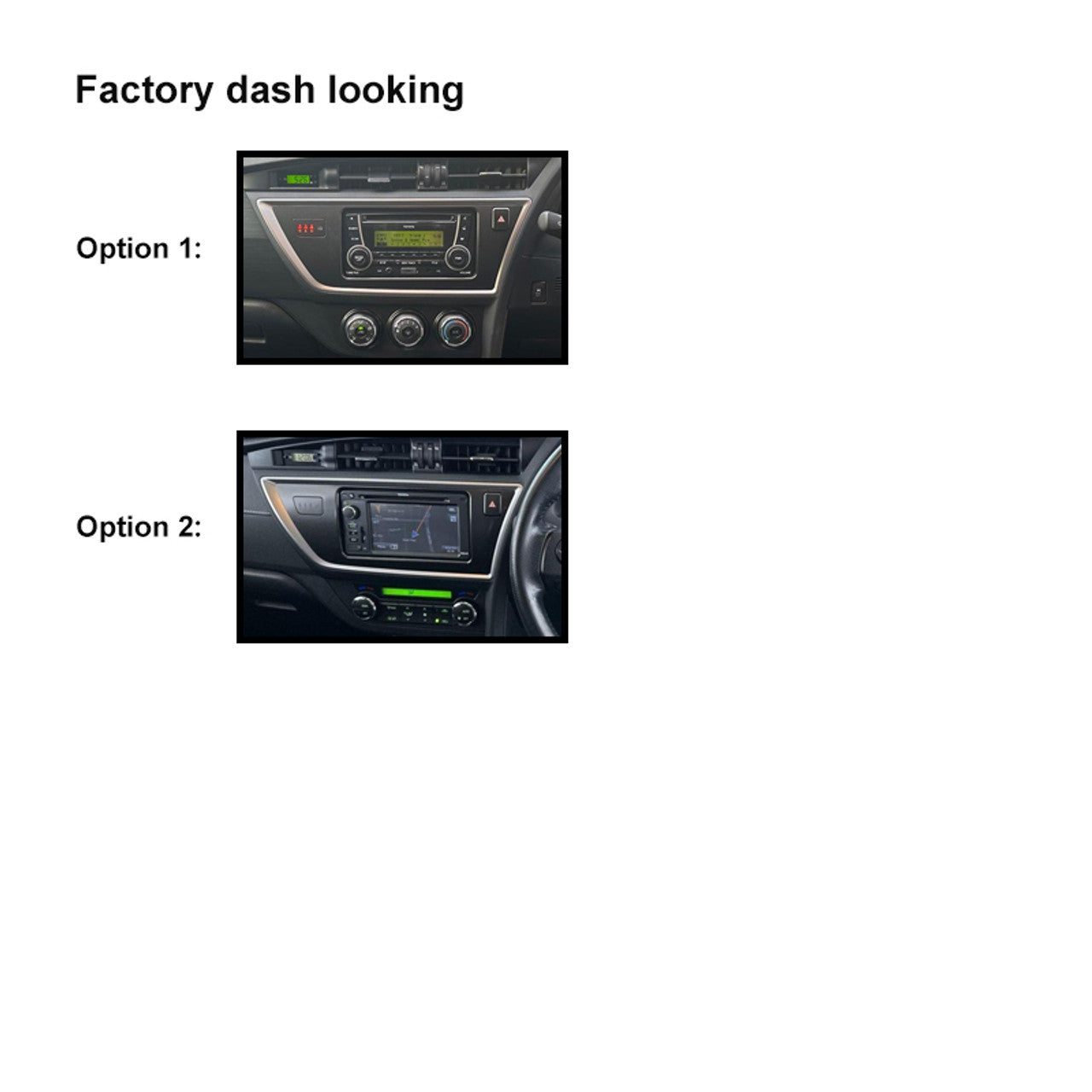

• Please send a photo of your dashboard along with your car’s year and model when purchasing, so we can provide the correct harness.

Main Features:

Wireless Apple CarPlay:

• The Ultimate Co-Pilot. Use CarPlay wirelessly to access maps, make calls, send and receive messages, and listen to music on your car's built-in display. With iOS, enjoy new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some phones):

• Wirelessly connect your Android phone to your car’s display. Access apps, get driving directions, send texts, and make hands-free calls. Just plug in and go—Android Auto helps you stay focused on the road.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio:

• Max Power: 4x50W
• Pre-output: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs (Rear): Left & Right

Video Inputs & Outputs:

• R-CAM: Reverse Camera Input (Rear)
• V-IN: Extra Video Input (Rear)
• V-OUT1: Video Output 1 (Rear)
• V-OUT2: Video Output 2 (Rear)

USB Interfaces:

• CP/AA: USB for CarPlay/Android Auto (Rear)
• USB: USB for Music or Video (Rear)

Other Inputs (Rear):

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable Outputs:

• Front Left/Right Speaker Output
• Rear Left/Right Speaker Output
• Subwoofer Output
• Canbus Connector
• Parking Brake & Amplifier Control

Package Includes:

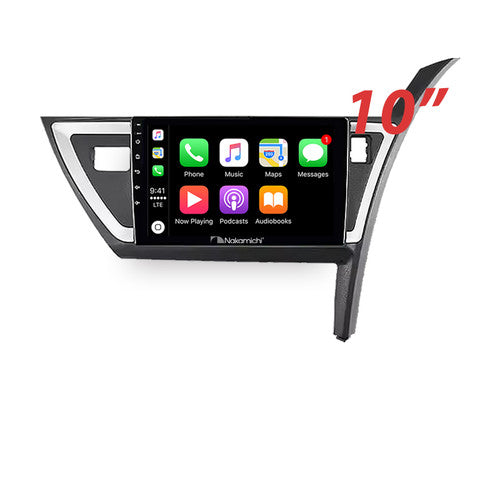

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Microphone
• 2 x USB Cables
• 1 x User Manual
  (*Package contents may vary based on the car model, this is normal.)

General Specifications:

• Screen Size: 10” TFT
• Display Resolution: 1240x600
• Contrast Ratio: 500
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
