Nakamichi Wireless Apple CarPlay & Android Auto Integration for Toyota Hilux 2015+

Compatibility:

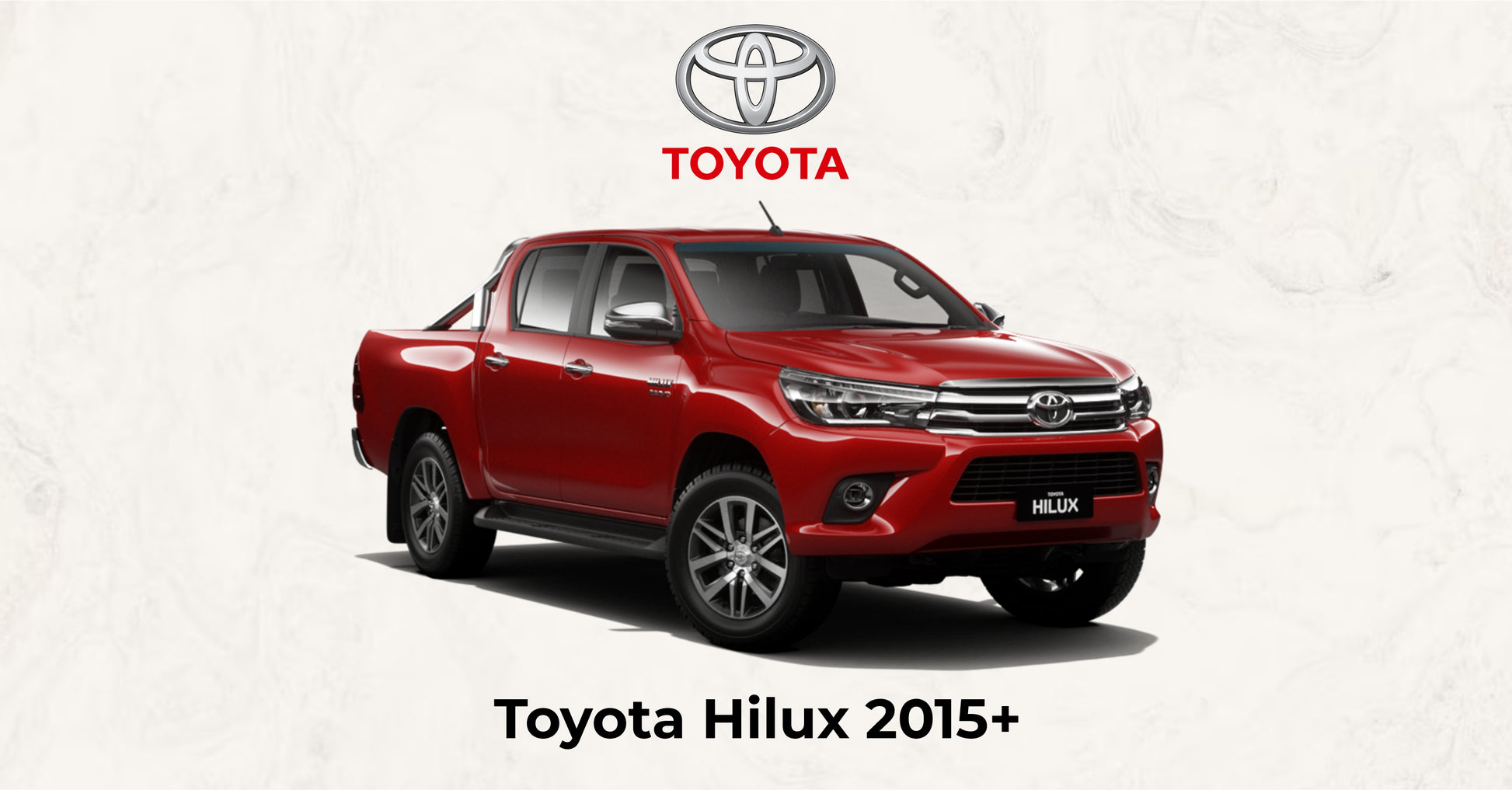

• for Toyota Hilux (2015+)

Important Notes:

• Compatible with Steering Wheel Controls.
• Works with factory reverse camera.

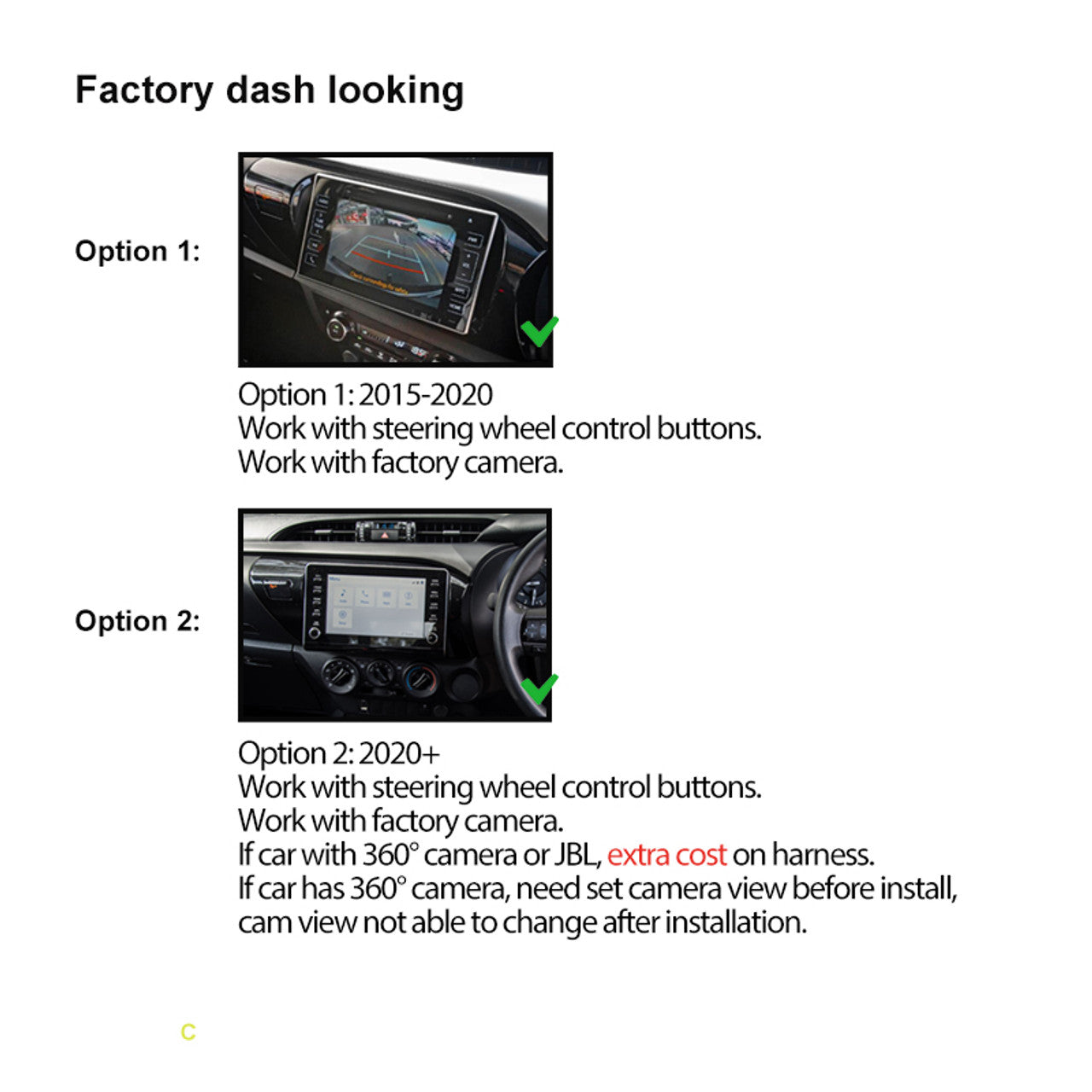

• Option 1: For models 2015–2020.
• Option 2: For 2020+ models. Includes standard basic harness. Additional cost for vehicles with 360° camera or JBL system.
• 360° Camera Info: If your vehicle has a 360° camera, set the camera view prior to installation as it cannot be changed after setup.
• Please send a photo of your vehicle's dashboard, along with the year and model, when purchasing to ensure we send the compatible harness.

Key Features:

WIRELESS APPLE CARPLAY
Enjoy the ultimate co-pilot experience with Wireless Apple CarPlay. Get directions, make calls, send messages, and enjoy your favorite music without cables. CarPlay also offers customizable app categories and wallpapers, all displayed on your car’s built-in screen, making your drive smarter and safer.

WIRELESS ANDROID AUTO (Wired for specific phone models)
Experience Android Auto wirelessly! Connect your Android device to your car display to access apps, get driving directions, send hands-free messages, and make calls—all without distractions. Android Auto helps you stay focused on the road while adding a fun element to your drive.

BLUETOOTH
Bluetooth Version: 5.0 + EDR
Frequency: 2.4GHz
Max Range: 5m

RADIO
FM Frequency Range: 87.5–108.0 MHz
AM Frequency Range: 522–1620 kHz
Preset Stations: 18 FM, 12 AM

AUDIO
Max Output Power: 4×50W
Pre-Output Voltage: 4V/10KΩ
Speaker Impedance: 4–8Ω

VIDEO

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB INTERFACE

• USB for CarPlay/Android Auto
• USB for Music/Video

ADDITIONAL INPUTS

• Radio Antenna Input
• Microphone Input

RCA CABLES

• Front/Rear Speaker Outputs
• Subwoofer Output
• Parking Brake Control
• Amplifier Control

Package Contents:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (*Different vehicle models may require different accessory packages, so some items may vary from the listing.)

General Specifications:

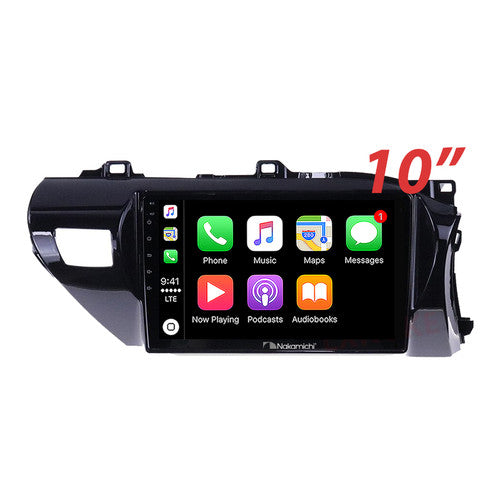

• TFT Screen Size: 10"
• Resolution: 1240×600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Charging/Reading: 5V/1A
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
