Nakamichi Wireless Apple CarPlay & Android Auto Integration for Toyota Kluger 2007-2013

Compatibility:

• for Toyota Kluger (2007-2013)

Important Notes:

• Compatible with Steering Wheel Controls.
• Hazard Switch included.

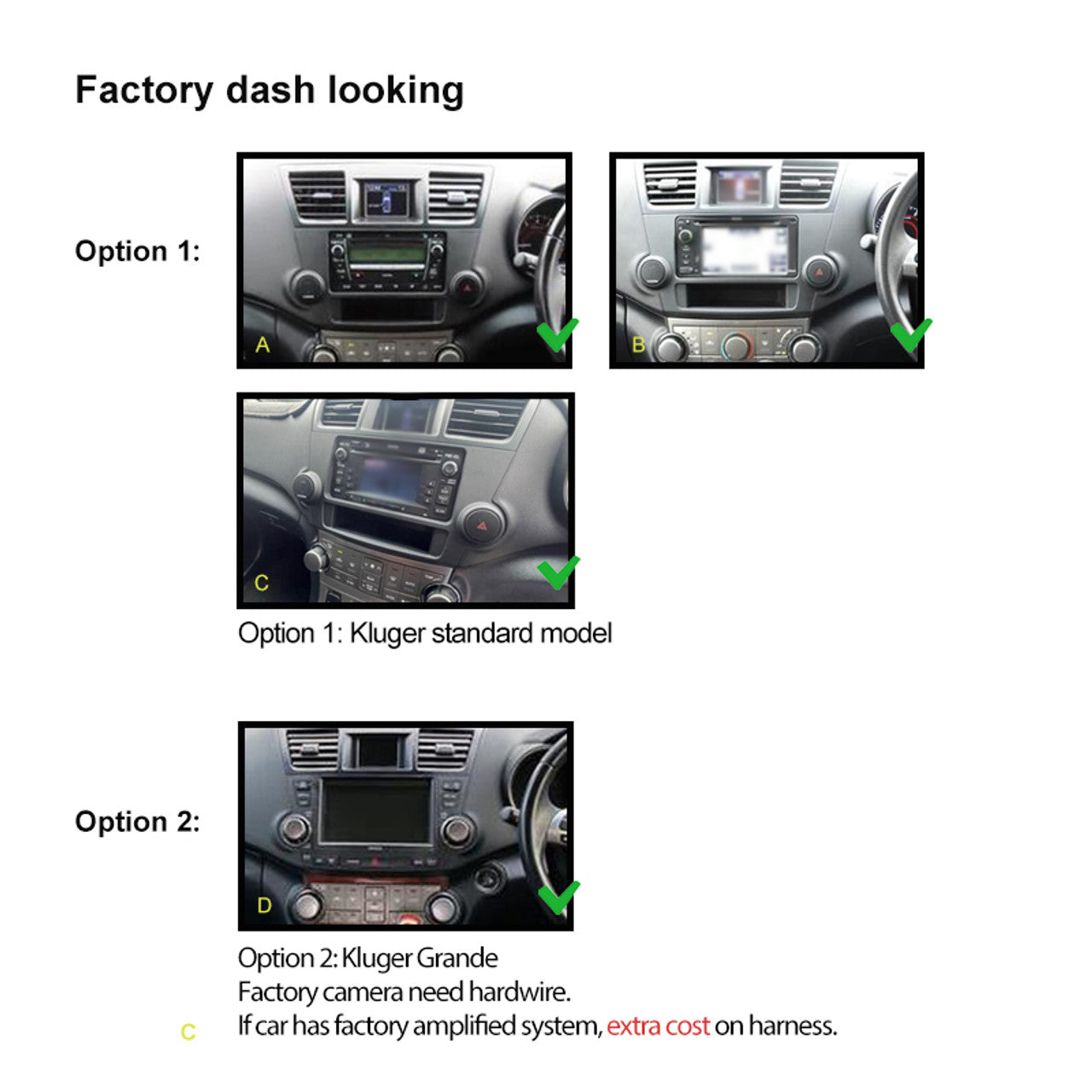

• Option 1: Standard Kluger model.
• Option 2: Kluger Grande (requires hardwiring for factory reverse camera). Extra harness cost for vehicles with a factory amplified system.
• Please send a photo of your vehicle's dashboard, along with the year and model, when purchasing to ensure we send the correct harness.

Key Features:

WIRELESS APPLE CARPLAY
Get the ultimate co-pilot with Wireless Apple CarPlay. This smart, safe system allows you to access navigation, calls, messages, and music without the need for a cable. Customize your CarPlay dashboard with new app categories and personalized wallpapers, all displayed on your car’s built-in screen.

WIRELESS ANDROID AUTO (Wired for certain phone models)
Connect your Android phone wirelessly and enjoy seamless access to apps, maps, hands-free calling, and messaging—all on your car’s display. Android Auto is designed to help you stay focused on the road and enhance your driving experience.

BLUETOOTH
Bluetooth Version: 5.0 + EDR
Frequency: 2.4GHz
Max Range: 5m

RADIO
FM Frequency Range: 87.5–108.0 MHz
AM Frequency Range: 522–1620 kHz
Preset Stations: 18 FM, 12 AM

AUDIO
Max Output Power: 4×50W
Pre-Output Voltage: 4V/10KΩ
Speaker Impedance: 4–8Ω

VIDEO

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB INTERFACE

• USB for CarPlay/Android Auto
• USB for Music/Video

ADDITIONAL INPUTS

• Radio Antenna Input
• Microphone Input

RCA CABLES

• Front/Rear Speaker Outputs
• Subwoofer Output
• Parking Brake Control
• Amplifier Control

Package Contents:

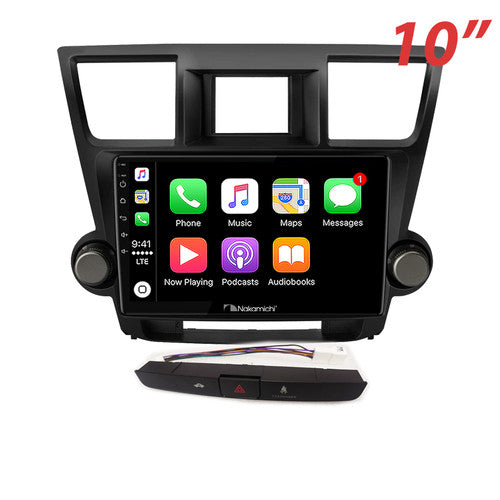

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (*Accessory packages may vary for different vehicle models, and some items may not match the listing exactly.)

General Specifications:

• TFT Screen Size: 10"
• Resolution: 1240×600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Charging/Reading: 5V/1A
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
