Nakamichi Wireless Apple CarPlay & Android Auto Integration for Toyota Kluger 2014-2019

Compatibility:

• for Toyota Kluger (2014-2019)

Important Notes:

• Works with Steering Wheel Controls.
• Fully compatible with the factory reverse camera.
• Not compatible with vehicles featuring a 360° camera without JBL sound system.
• Additional harness required for vehicles with JBL sound system and 360° camera.

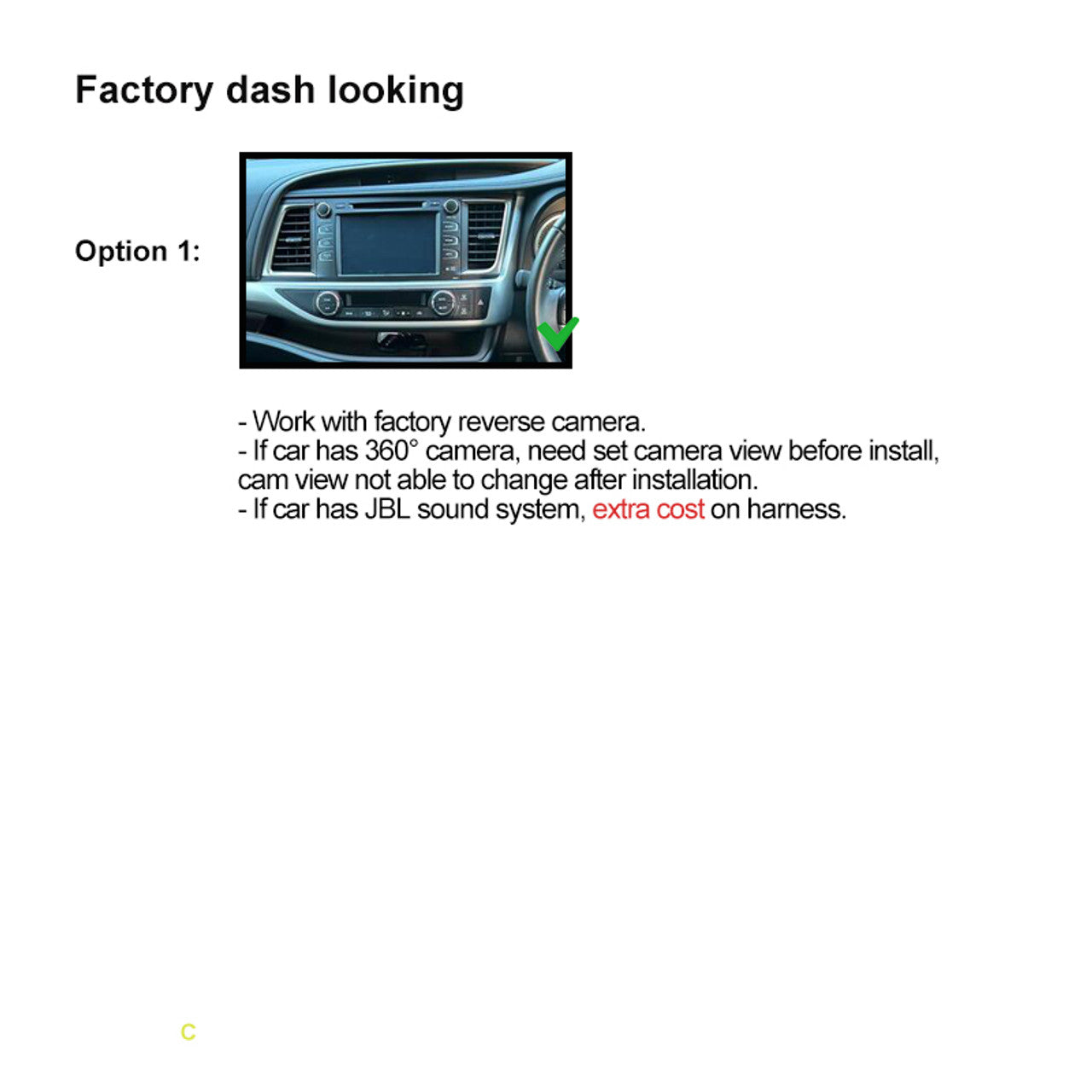

• Please send a photo of your vehicle’s dashboard, along with the year and model, at the time of purchase to ensure compatibility with the correct harness.

Key Features:

WIRELESS APPLE CARPLAY
Experience the ultimate driving companion with Wireless Apple CarPlay. It lets you seamlessly access maps, calls, messages, music, and more—all through your vehicle's built-in display. CarPlay also introduces new app categories and customizable wallpapers for a personalized driving experience.

WIRELESS ANDROID AUTO (Wired for certain phone brands)
Enjoy Android Auto without the need for cables, allowing you to effortlessly connect your phone to your car’s display. Access apps, get directions, send hands-free messages, and make calls with ease. Android Auto is designed to enhance your focus on the road while offering fun and convenience on your journey.

BLUETOOTH
Bluetooth Version: 5.0 + EDR
Frequency: 2.4GHz
Max Range: 5m

RADIO
FM Frequency Range: 87.5–108.0 MHz
AM Frequency Range: 522–1620 kHz
Preset Stations: 18 FM, 12 AM

AUDIO
Max Output Power: 4×50W
Pre-Output Voltage: 4V/10KΩ
Speaker Impedance: 4–8Ω

VIDEO

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs

USB INTERFACE

• USB for CarPlay/Android Auto
• USB for Music/Video

ADDITIONAL INPUTS

• Radio Antenna Input
• Microphone Input

RCA CABLES

• Front/Rear Speaker Outputs
• Subwoofer Output
• Parking Brake Control
• Amplifier Control

Package Contents:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (*Different vehicle models may require different accessory packages, so it's normal for some items to vary.)

General Specifications:

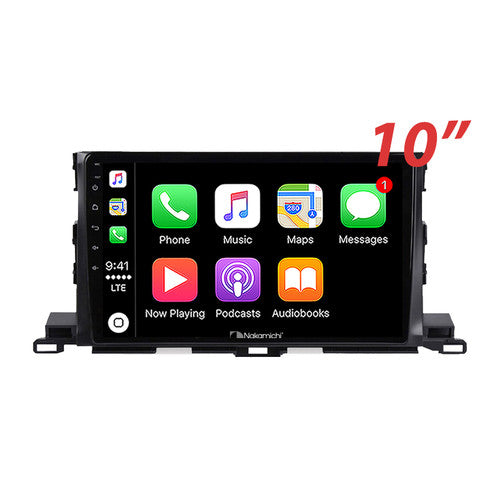

• TFT Screen Size: 10"
• Resolution: 1240×600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Charging/Reading: 5V/1A
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
