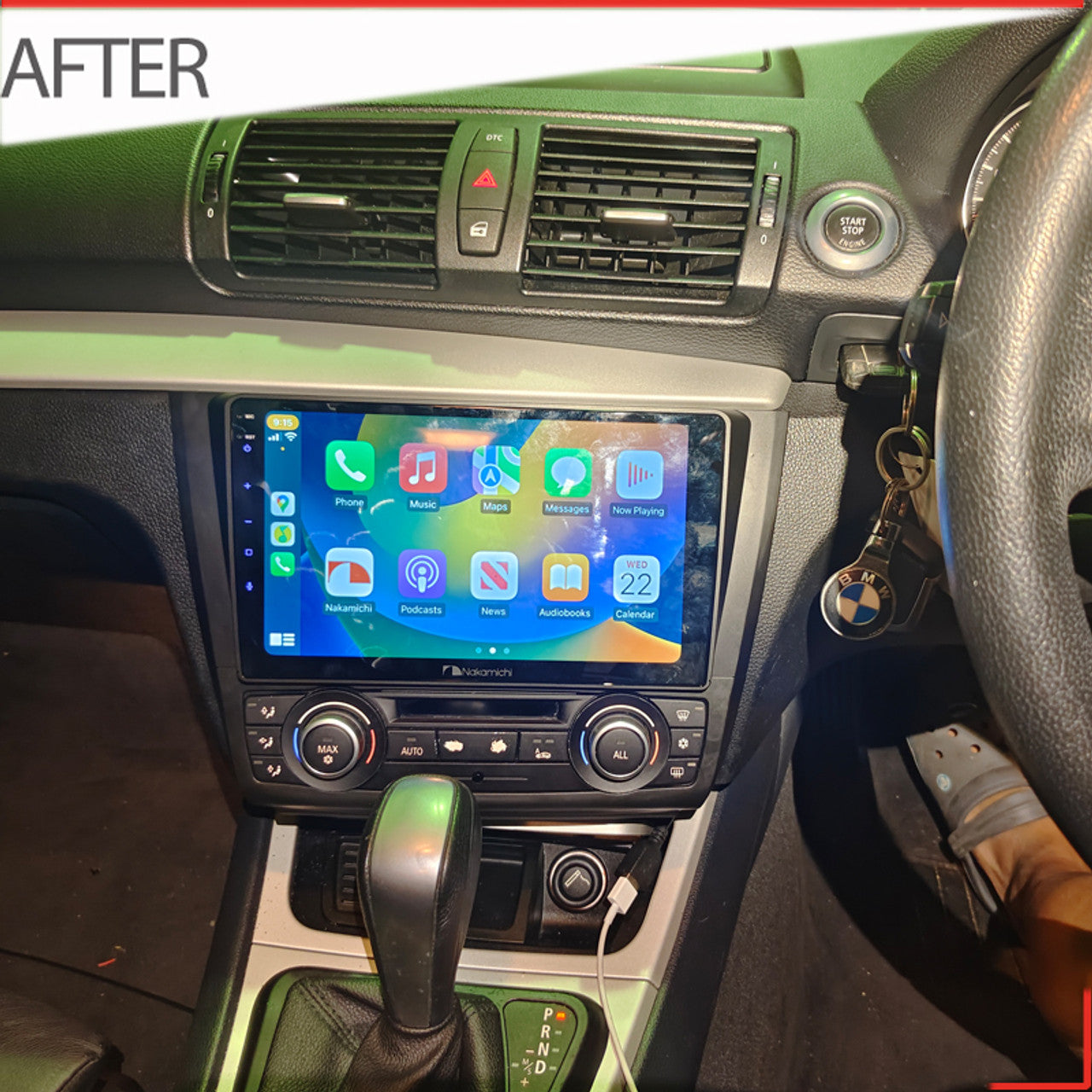

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with BMW 1 Series 2004-2011 Auto A/C

Compatibility:

• For BMW 1 Series 2004-2011 with auto A/C

Notice

• Compatible with steering wheel controls

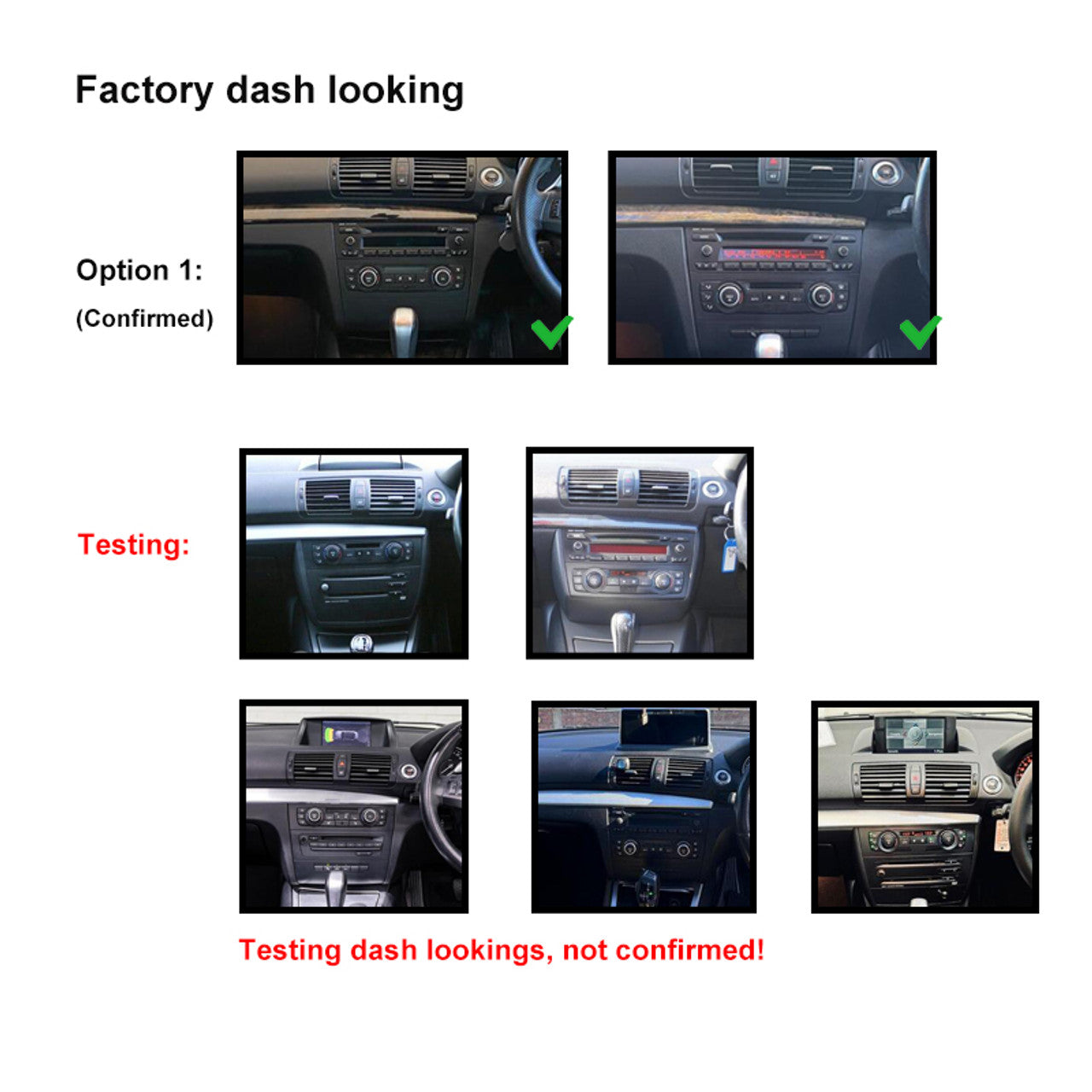

• Only compatible with confirmed dash configurations
• If your car has the "P" button, fascia modification may be required to accommodate the button. The mount bracket will also need adjustments for proper harness space.
• Please send a photo of your dashboard along with the vehicle year and model when purchasing, so we can provide the correct harness.

Main features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customized wallpapers for your CarPlay dashboard.

Wireless Android Auto (wired for some specific phone brands)
Pair your phone wirelessly with the car display. Your Android apps will appear onscreen instantly. Tap to get directions, send hands-free texts, or make calls—all while keeping your focus on the road. Android Auto helps you stay safe and entertained.

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5m

Radio

• FM frequency range: 87.5–108.0 MHz
• AM frequency range: 522–1620 KHz
• Preset stations: 18 FM, 12 AM

Audio

• Max power: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4–8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video

• R-CAM: Reverse camera video input (at back of the unit)
• V-IN: Extra video input (at back of the unit)
• V-OUT1: Video output 1 (at back of the unit)
• V-OUT2: Video output 2 (at back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other inputs at back of the unit

• ANT: Radio antenna input (at back of the unit)
• MIC: Microphone input (at back of the unit)

RCA Cable

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package included

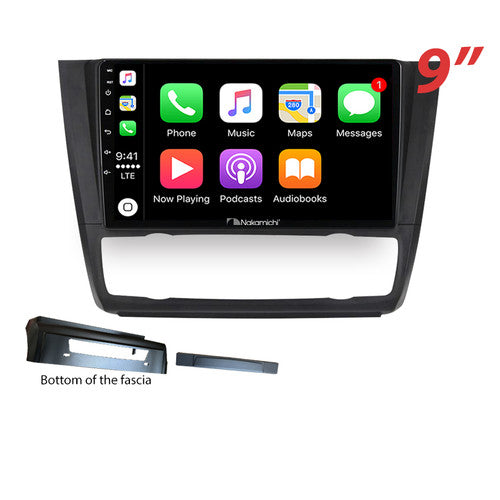

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  (For different car models, the accessory package may vary slightly. This is normal if it doesn't match the one listed.)

General specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5V–16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
