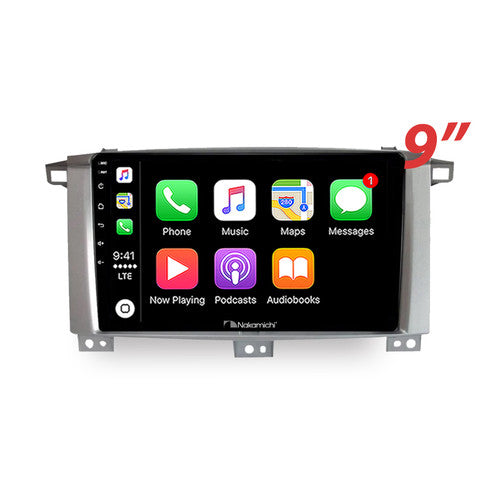

Nakamichi Wireless Apple CarPlay & Android Auto Solution Compatible with Toyota Landcruiser 2002-2006

Compatibility:

• For Toyota Landcruiser 2002-2006

Notice

• Compatible with steering wheel controls

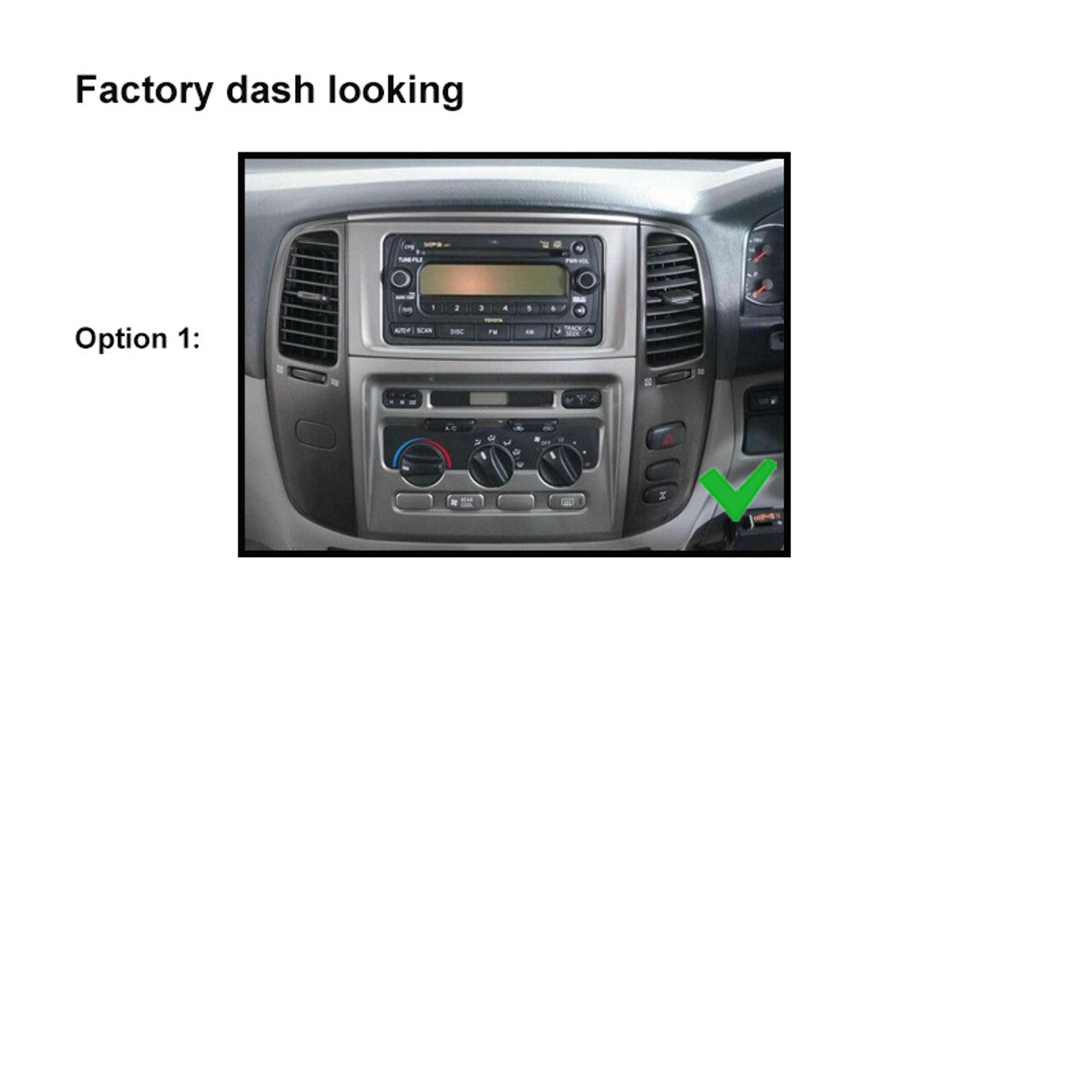

• Please send us a photo of your dashboard along with the vehicle year and model when purchasing so we can provide the compatible harness

Main features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces all-new app categories and customized wallpapers for your CarPlay dashboard.

Wireless Android Auto (wired for some specific phone brands)
Pair your phone wirelessly with the car display. Your Android apps will appear onscreen instantly. Tap to get driving directions, talk to send a text, or even make hands-free calls. Android Auto helps you stay focused on the road while enjoying the journey. Just plug in and go!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4 GHz
• Max range: 5 meters

Radio

• FM frequency range: 87.5–108.0 MHz
• AM frequency range: 522–1620 KHz
• Preset stations: 18 FM, 12 AM

Audio

• Max output power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4–8Ω
• AUX-L (at back of the unit)
• AUX-R (at back of the unit)

Video Inputs

• R-CAM: Reverse camera video input (at back of the unit)
• V-IN: Extra video input (at back of the unit)
• V-OUT1: Video output 1 (at back of the unit)
• V-OUT2: Video output 2 (at back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at back of the unit)
• USB: USB connection for music or video (at back of the unit)

Other inputs at back of the unit

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Outputs

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package included

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x Microphone
• 2 x USB cables
• 1 x User manual
  (For different car models, the accessory package may vary slightly from the listing.)

General specifications

• TFT screen size: 9"
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5V–16V)
• USB readable/chargeable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
