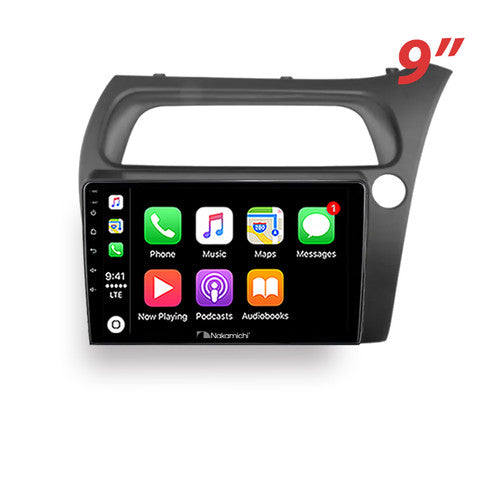

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Civic 2006-2011 Hatch

Compatibility:

• For Honda Civic 2006-2011 Hatch.

Notice:

• Compatible with steering wheel controls.
• Not compatible with factory amplified systems.

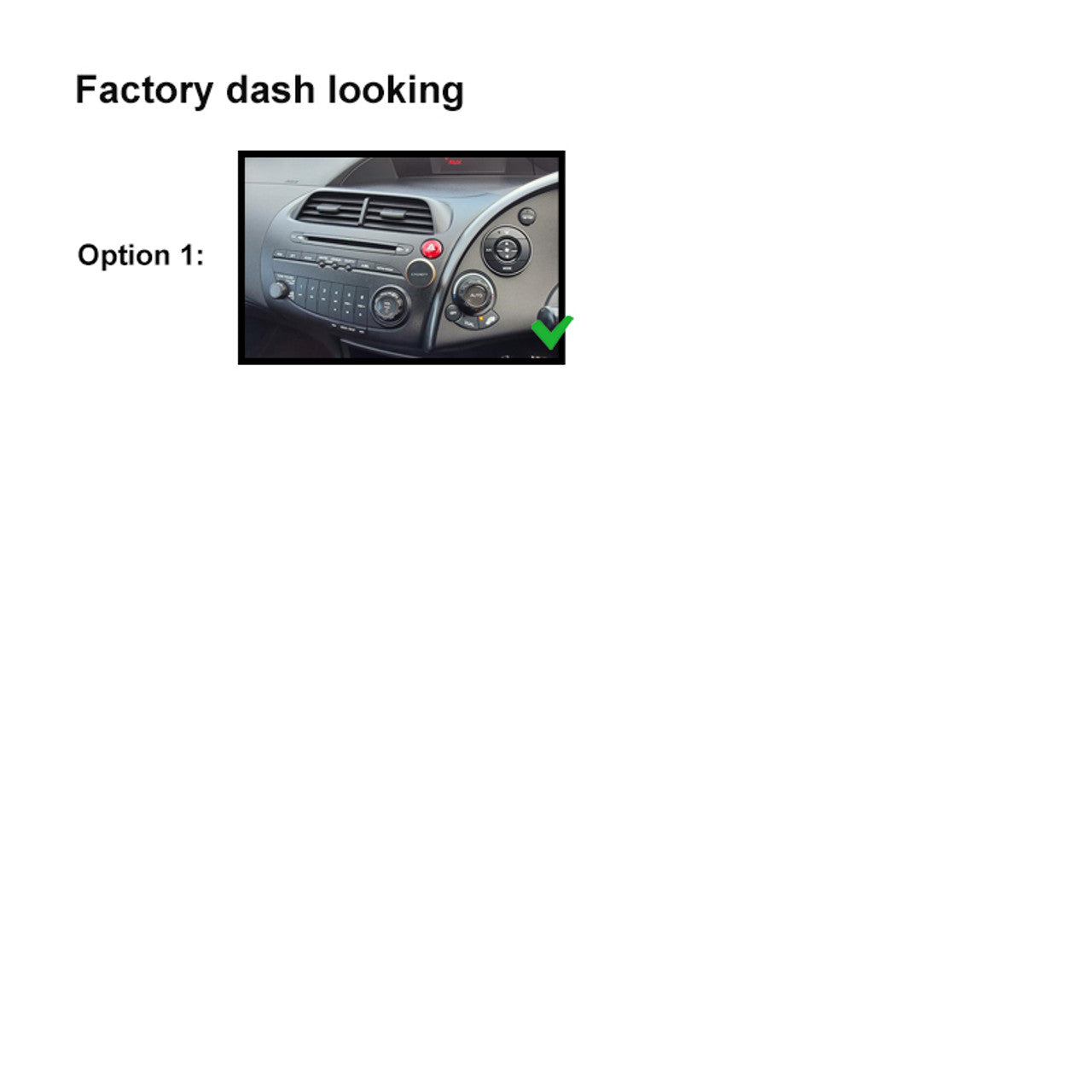

• Please send us a photo of your dashboard, along with the car’s year and model, when purchasing, so we can send you the correct harness.

Main Features:

Wireless Apple CarPlay:
The ultimate co-pilot. Enjoy CarPlay without cables! CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. Plus, with iOS updates, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (wired for some specific phone brands):
Pair your Android phone wirelessly, and hit the road! Your Android apps show up onscreen just like that. Tap to get driving directions, talk to send texts, and call hands-free. Android Auto is designed to keep you focused on the road and enjoying your drive. Just plug in and go!

Bluetooth:

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Rear Left and Right

Video Inputs & Outputs:

• Reverse Camera Input
• Extra Video Input
• Dual Video Outputs for enhanced media options

USB Interface:

• CarPlay / Android Auto USB Connection (located at the back)
• Additional USB Port for Music or Video

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• RCA Outputs for Front Left, Front Right, Rear Left, Rear Right, and Subwoofer
• Canbus Connector
• Parking Brake Control
• Amplifier Control Output

Package Included:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Wiring Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: The accessory package may vary based on car model. It is normal if the contents differ from the listing.)

General Specifications:

• TFT Screen Size: 9"
• Display Resolution: 1240x600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (with range of 10.5-16V)
• USB Output: 5V/1A
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
