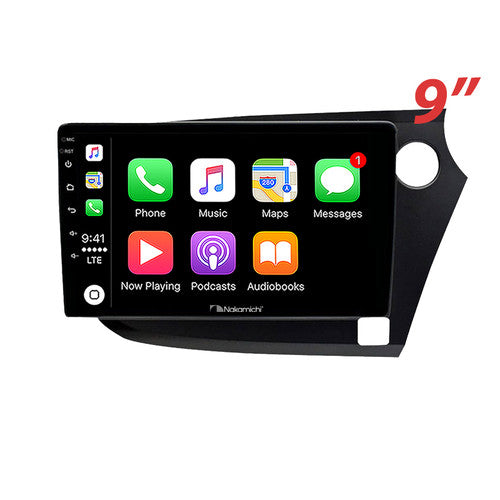

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Honda Insight 2010-2013

Compatibility:

• for Honda Insight 2010-2013

Important Notice:

• Compatible with Steering Wheel Controls (except BT button, which requires touch screen control for phone functions).

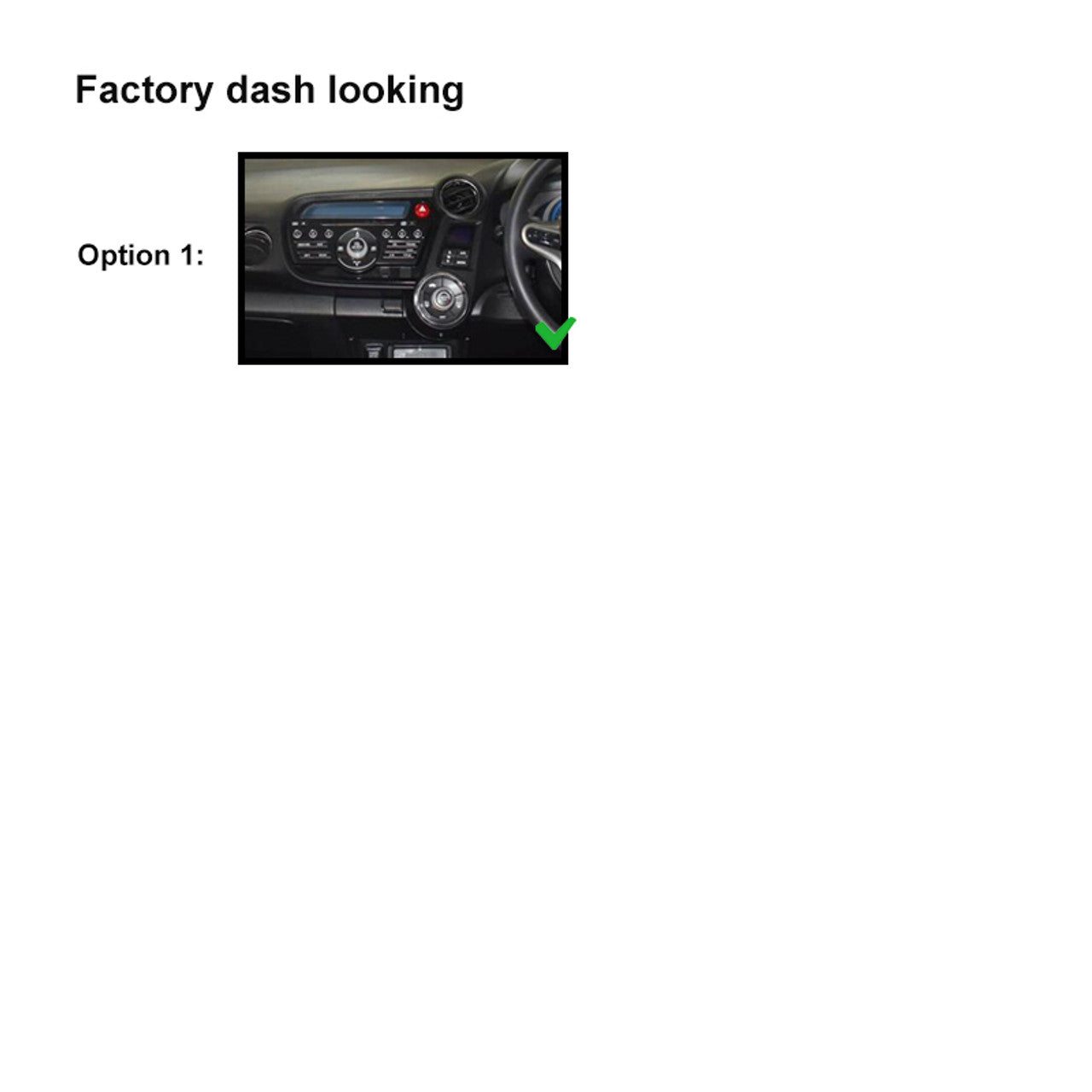

• Please send a photo of your dashboard along with the car’s year and model when purchasing, so we can provide the correct harness.

Key Features:

Wireless Apple CarPlay:
Enjoy CarPlay without the hassle of cables! CarPlay is a smarter and safer way to use your iPhone while driving, letting you access directions, make calls, send messages, and enjoy music—all on your car's display. With iOS updates, CarPlay also offers new app categories and customized wallpapers for a more personal experience.

Wireless Android Auto (Wired for some phone brands):
Connect your Android phone wirelessly to the display, allowing you to access apps, get driving directions, send hands-free texts, and make calls, all without distracting from the road.

Bluetooth:

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 KHz
• Presets: 18 FM stations, 12 AM stations

Audio Features:

• Max Output Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4–8Ω
• AUX Inputs: Left (L) and Right (R) audio inputs

Video Inputs/Outputs:

• Reverse Camera Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output Options: V-OUT1, V-OUT2

USB Interface:

• 4-pin USB for CarPlay / Android Auto
• 6-pin USB for music and video playback

Other Inputs/Outputs:

• Radio Antenna Input
• Microphone Input
• Canbus Box Interface for vehicle integration
• Parking Brake Input
• Amplifier Control (AMP)

Package Includes:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessories may vary depending on vehicle model.)

General Specifications:

• 9” TFT Display with 1240×600 resolution
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (10.5V–16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Supported Video Formats: H264, MP4, AVI, MKV, FLV
• Supported Audio Formats: MP3, APE, AAC, FLAC
