Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai Getz 2005-2011

Compatibility:

• For Hyundai Getz 2005-2011

Important:

• Compatible with Steering Wheel Controls
• Works with the factory reverse camera

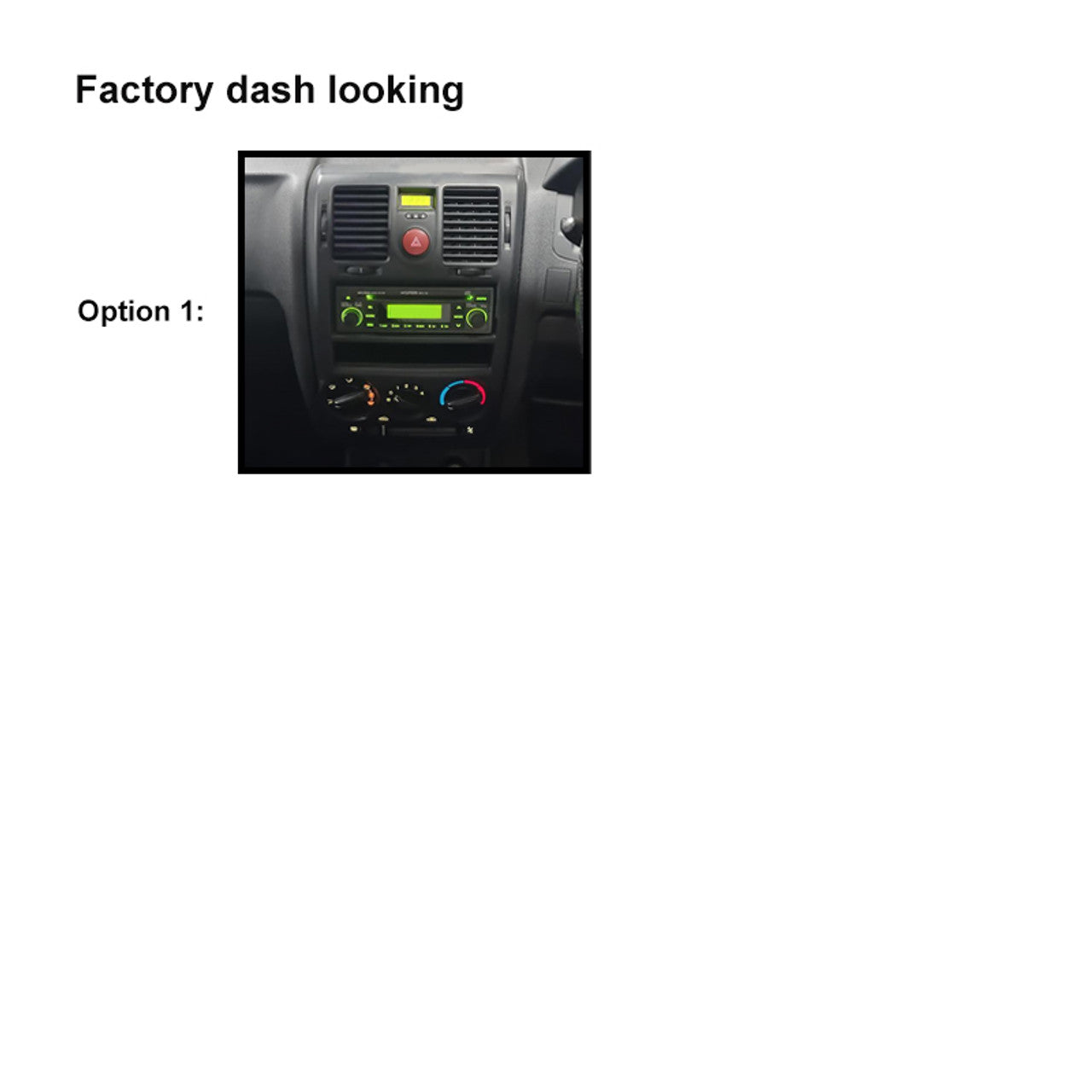

• Please send us a photo of your dashboard along with your car's year and model when purchasing, so we can provide the correct harness

Key Features:

Wireless Apple CarPlay
The ultimate co-pilot experience. Enjoy CarPlay without any cables. It’s a smarter and safer way to use your iPhone while driving. Access maps, make calls, send and receive messages, and enjoy your favorite music, all on your car's built-in display. With iOS, CarPlay also introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto
Easily pair your Android phone with your car’s display. Get directions, send texts hands-free, or make calls—all while keeping your attention on the road. Android Auto is designed to help you stay focused and entertained.

Bluetooth 5.0

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5 meters

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• FM Presets: 18, AM Presets: 12

Audio Specifications:

• Max power: 4 x 50W
• Pre-output (V): 4V/10KΩ
• Speaker impedance: 4-8Ω
• AUX Left/Right inputs
• Front/Rear speaker outputs
• Subwoofer output
• Amplifier control (AMP)

Video Inputs:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output 1 (V-OUT1)
• Video Output 2 (V-OUT2)

USB Interface:

• USB connection for CarPlay/Android Auto (CP/AA)
• USB connection for music or video (USB)

Additional Inputs:

• Radio antenna input (ANT)
• Microphone input (MIC)

RCA Cables:

• Front Left/Right Speaker Output (FL_OUT/FR_OUT)
• Rear Left/Right Speaker Output (RL_OUT/RR_OUT)
• Subwoofer Output (SUB_OUT)
• Canbus Connector (UART_RX/UART_TX)
• Parking Brake (PARK)
• Amplifier Control (AMP)

Package Includes:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  Please note: For different car models, accessory packages may vary. It’s normal for them to differ slightly from the listing.

General Specifications:

• Screen size: 9" TFT
• Display resolution: 1240 x 600
• Contrast ratio: 500
• Brightness: 500 nits
• Operating voltage: 14.4V (range: 10.5-16V)
• USB charging/reading: (5±0.25V/1A)
• Video formats supported: H264/MP4/AVI/MKV/FLV
• Audio formats supported: MP3/APE/AAC/FLAC
