Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai Tucson 2015-2018
Nakamichi Wireless Apple CarPlay & Android Auto Solution for Hyundai Tucson 2015-2018
Couldn't load pickup availability
Compatibility:
- for Hyundai Tucson 2015-2018
Important Notice:
- Compatible with Steering Wheel Controls; however, the BT button is not supported and will not work.

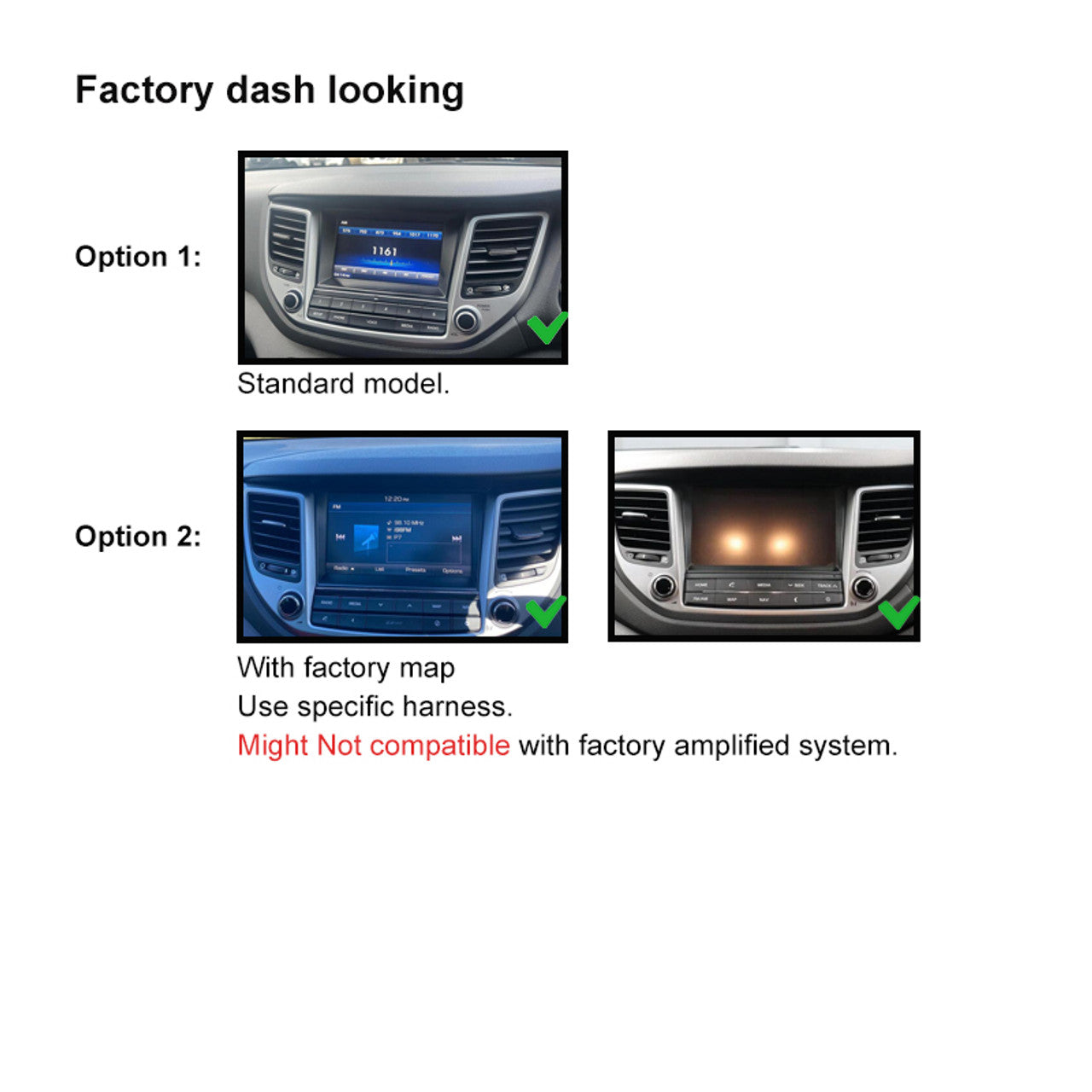

- Option 1: Standard harness.
- Option 2: Specific harness (extra cost).
- Not compatible with vehicles that have a factory amplified system.
- Please send a photo of your dashboard along with the car's year and model when purchasing, so we can provide the correct harness.
Key Features:
Wireless Apple CarPlay:
CarPlay is your ultimate co-pilot. It allows you to connect your iPhone wirelessly, enabling you to get directions, make calls, send and receive messages, and enjoy music—all from your car’s display. With iOS updates, CarPlay also introduces new app categories and customizable wallpapers for a personalized experience.
Wireless Android Auto (Wired for some phone brands):
Wirelessly pair your Android phone to the car’s display. Android Auto lets you access driving directions, send texts hands-free, make calls, and use your favorite apps—all without removing your focus from the road.
Bluetooth:
- Bluetooth Version: 5.0 + EDR
- Frequency Band: 2.4 GHz
- Max Range: 5 meters
Radio Features:
- FM Frequency: 87.5-108.0 MHz
- AM Frequency: 522-1620 KHz
- Presets: 18 FM stations, 12 AM stations
Audio Features:
- Max Output Power: 4×50W
- Pre-output Voltage: 4V/10KΩ
- Pre-output Impedance: ≤600Ω
- Speaker Impedance: 4–8Ω
- AUX Inputs: Left (L) and Right (R) audio inputs
Video Inputs/Outputs:
- Reverse Camera Input (R-CAM)
- Extra Video Input (V-IN)
- Video Output Options: V-OUT1, V-OUT2
USB Interface:
- 4-pin USB for CarPlay / Android Auto
- 6-pin USB for music and video playback
Other Inputs/Outputs:
- Radio Antenna Input
- Microphone Input
- Canbus Box Interface for vehicle integration
- Parking Brake Input
- Amplifier Control (AMP)
Package Includes:
- 1 x Nakamichi Head Unit with Fascia
- 1 x Main Harness
- 1 x RCA Cable
- 1 x User Manual
- 1 x Microphone
- 2 x USB Cables
(Note: Accessories may vary depending on vehicle model.)
General Specifications:

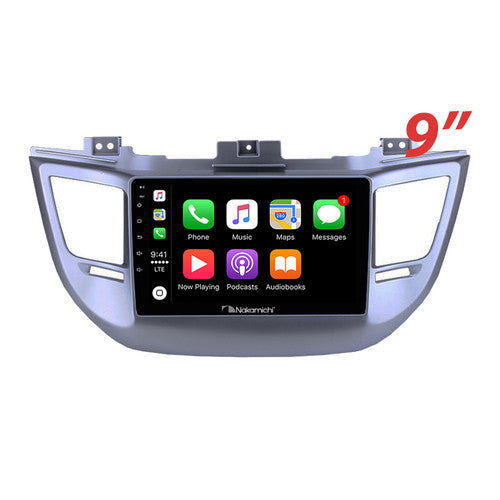

- 9” TFT Display with 1240×600 resolution
- Contrast Ratio: 500
- Brightness: 500 nits
- Operating Voltage: 14.4V (10.5V–16V)
- USB Readable/Chargeable: (5±0.25V/1A)
- Supported Video Formats: H264, MP4, AVI, MKV, FLV
- Supported Audio Formats: MP3, APE, AAC, FLAC
