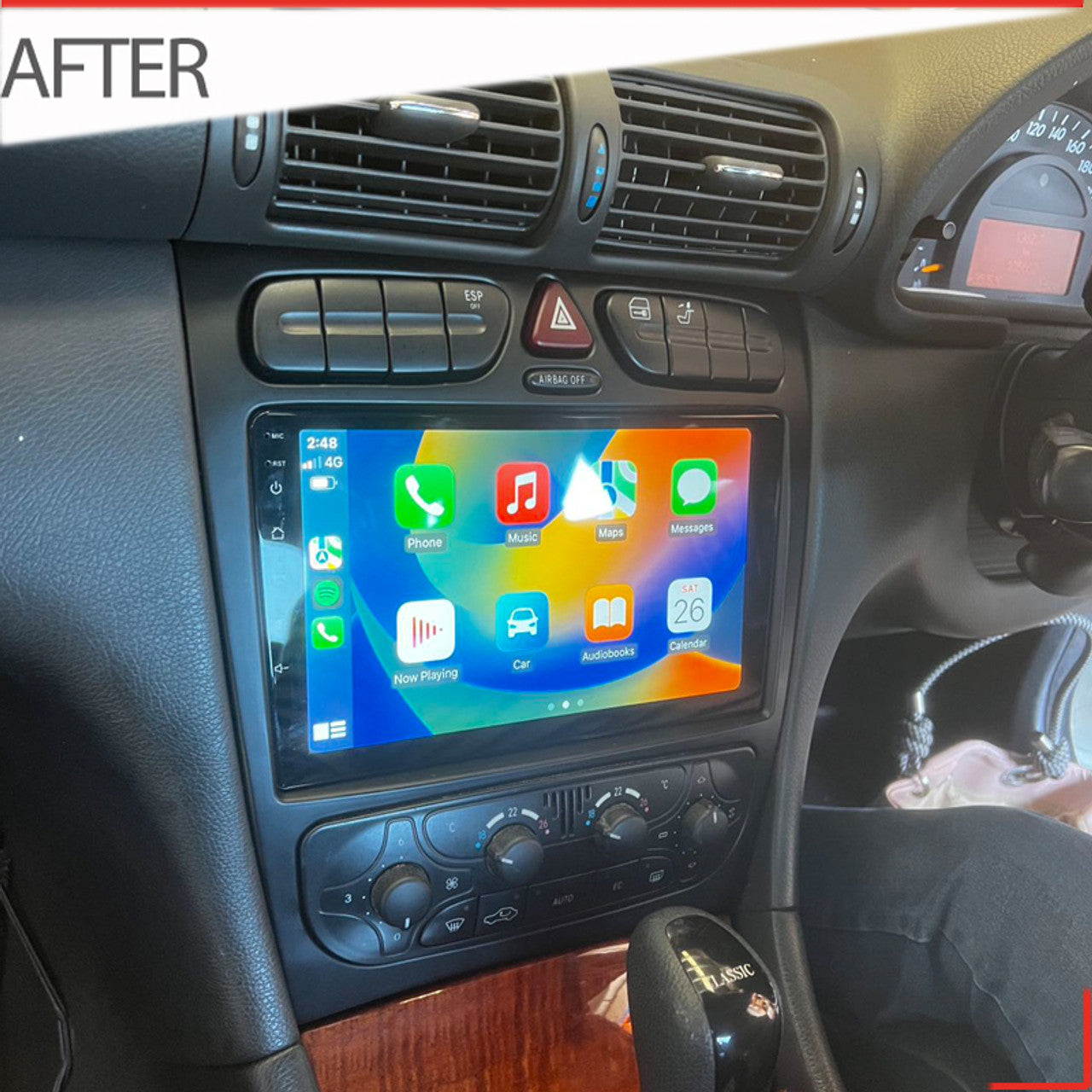

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mercedes C-Class 2001-2004 W203

Compatibility:

• For Mercedes C-Class 2001-2004 W203.

Important Notes

• Compatible with steering wheel controls.
• If your car has a factory fibre optic system, an additional cost for the AMP module will apply.

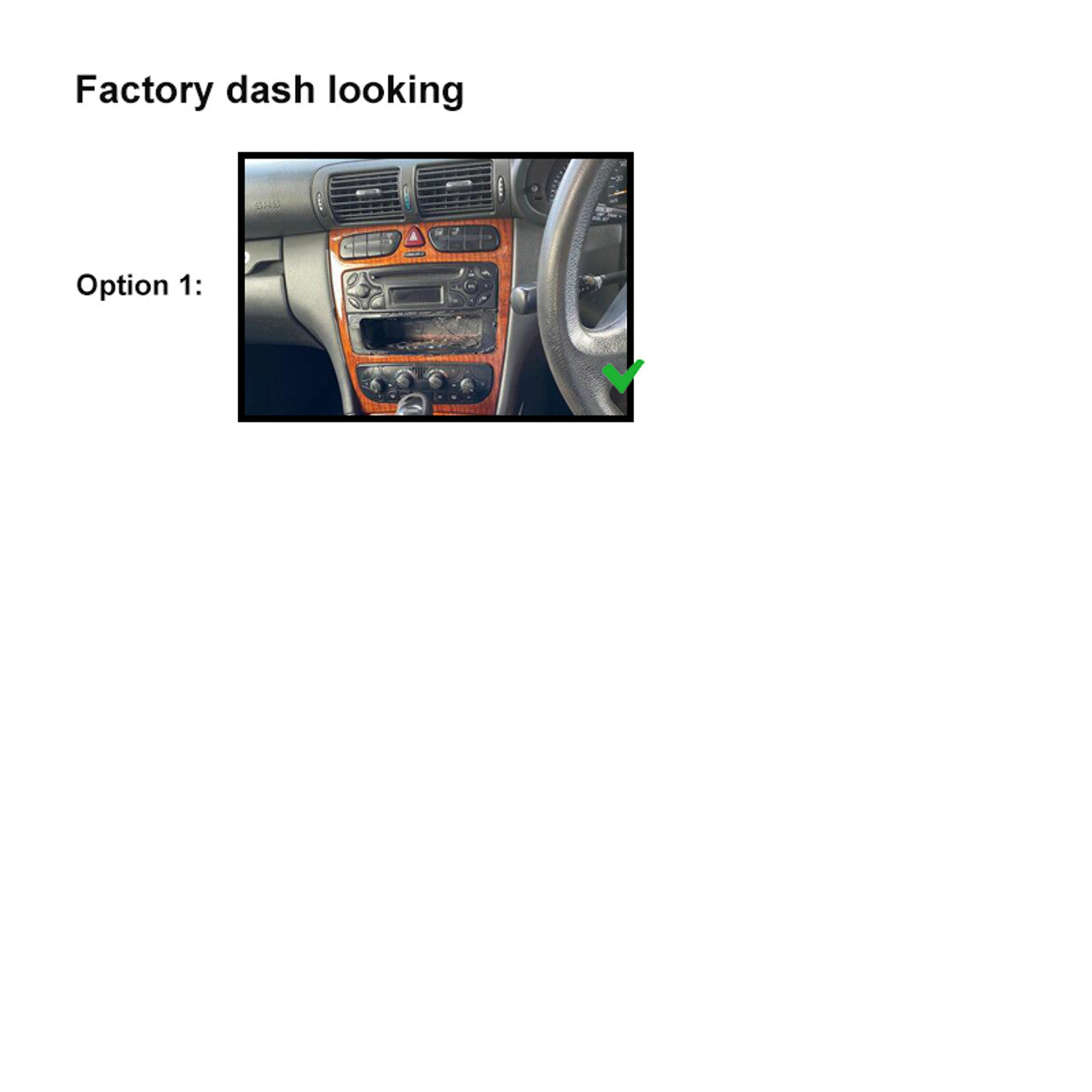

• Please send a photo of your dashboard, along with your car's year and model, when purchasing, so we can provide you with the compatible harness.

Main Features

Wireless Apple CarPlay
The Ultimate Co-Pilot. Enjoy CarPlay without the need for cables. CarPlay is a smarter, safer way to use your iPhone while driving. You can get directions, make calls, send and receive messages, and enjoy your favorite music, all on your car's built-in display. With iOS, CarPlay introduces all-new app categories and customized wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Pair your phone without cables and hit the road. Your Android apps will display on the car screen—just like that. Get driving directions, talk to send texts, or even make hands-free calls. Android Auto is designed to help you focus on the road and have fun along the way. Just plug in and go!

Bluetooth

• Bluetooth Version: 5.0 + EDR
• Frequency Band: 2.4 GHz
• Max Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Input: Audio Left (AUX-L), Audio Right (AUX-R)
• Outputs: Front Left (FL_OUT), Front Right (FR_OUT), Rear Left (RL_OUT), Rear Right (RR_OUT), Subwoofer (SUB_OUT)
• Amplifier Control: AMP

Video

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Output 1 (V-OUT1)
• Video Output 2 (V-OUT2)

USB Interface

• 4PIN USB: USB connection for CarPlay / Android Auto
• 6PIN USB: USB connection for music or video

Other Inputs

• Radio Antenna Input (ANT)
• Microphone Input (MIC)
• Parking Brake Detection (PARK)
• Canbus Connector (UART_RX/UART_TX)

Package Includes

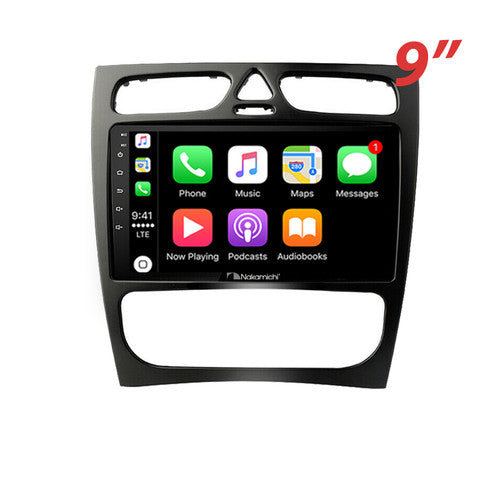

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  Note: Accessory packages may vary depending on the car model.

General Specifications

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500nits
• Operating Voltage: 14.4V (Range: 10.5-16V)
• USB Readable/Chargeable: (5±0.25V/1A)
• Video Formats Supported: H264/MP4/AVI/MKV/FLV
• Audio Formats Supported: MP3/APE/AAC/FLAC
