Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mercedes SL-Class 2002-2011 R230

Compatibility:

• for Mercedes SL-Class 2002-2011 R230

Important Notes

• Steering wheel control compatibility.
• If your car has a factory Fibre Optic system, an additional cost for the AMP module applies.
• Option 1: Wait for testing!
• Please send a photo of your dashboard, along with your car’s year and model, when purchasing to receive the compatible harness.

Key Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay without cables. CarPlay is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for a more personalized experience.

Wireless Android Auto (Wired for some devices)
Connect your phone wirelessly and hit the road. Android Auto displays your apps on the car screen, making it easy to access navigation, send texts, or make hands-free calls. It’s designed to help you stay focused on the road and enjoy the ride.

Bluetooth

• Bluetooth Version: 5.0 + EDR
• Frequency: 2.4GHz
• Maximum Range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications

• Max Power Output: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Input (Rear): Left & Right

Video Inputs and Outputs

• Reverse Camera Input
• Extra Video Input (V-IN)
• Video Output 1 & 2 (V-OUT)

USB Connections

• USB for CarPlay/Android Auto
• USB for music or video playback

Additional Inputs

• Antenna (Radio Input)
• Microphone Input

RCA Cables

• Front Left/Right Speaker Outputs
• Rear Left/Right Speaker Outputs
• Subwoofer Output
• Canbus Connector
• Parking Brake & Amplifier Control

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessories may vary depending on the car model.)

General Specifications

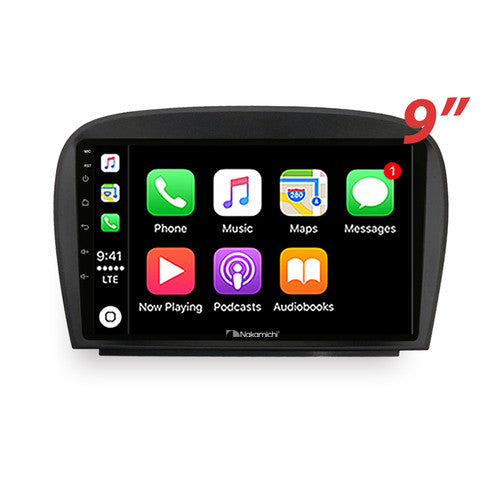

• Screen Size: 9" TFT
• Resolution: 1240x600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Output: 5V/1A
• Supported Video Formats: H264/MP4/AVI/MKV/FLV
• Supported Audio Formats: MP3/APE/AAC/FLAC
