Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mitsubishi ASX 2018+

Compatibility:

• For Mitsubishi ASX 2018+

Important Notes

• Fully compatible with steering wheel controls.

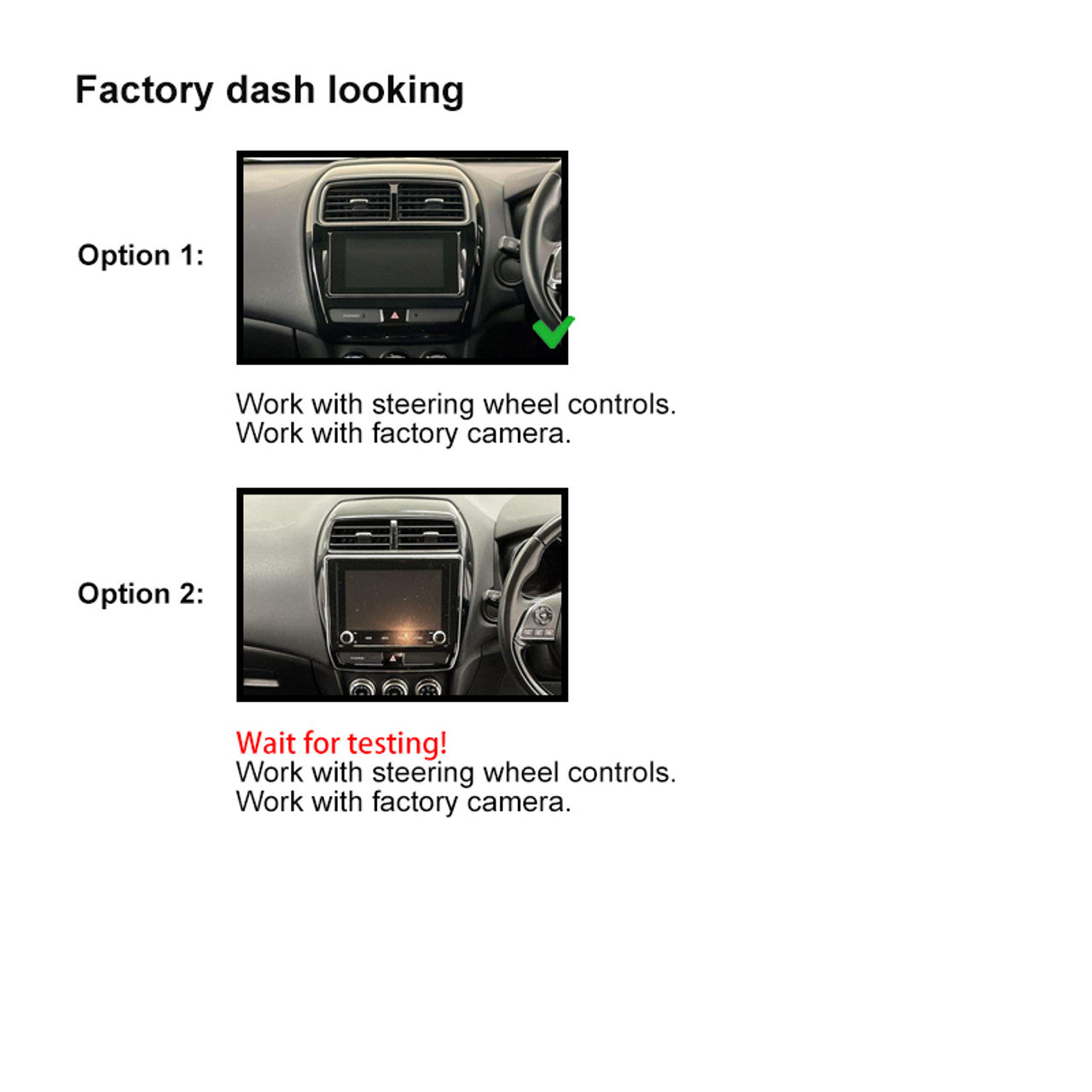

• Option 1: For cars with the factory small screen, works with the factory reverse camera.
• Option 2: For cars with the factory big screen (testing in progress).
• If your vehicle is equipped with a Rockford Fosgate sound system, an additional harness may be required at an extra cost.
• Please send us a photo of your dashboard with your car's year and model when purchasing, so we can provide the compatible harness.

Key Features

Wireless Apple CarPlay
CarPlay allows you to wirelessly use your iPhone in a smarter, safer way while driving. Access directions, make calls, send messages, and enjoy your favorite music—all on your car’s built-in display. iOS CarPlay introduces new app categories and customizable wallpapers for your CarPlay dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Android Auto connects wirelessly to your Android phone. Access navigation, make hands-free calls, send text messages, and use your favorite apps—all displayed on your car’s screen. Focus on the road and enjoy the drive!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Left/Right (at the back of the unit)

Video

• Reverse Camera Video Input (R-CAM at the back of the unit)
• Extra Video Input (V-IN at the back of the unit)
• Video Output 1 and 2 (V-OUT1/V-OUT2 at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for Music or Video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessory packages may vary by car model.)

General Specifications

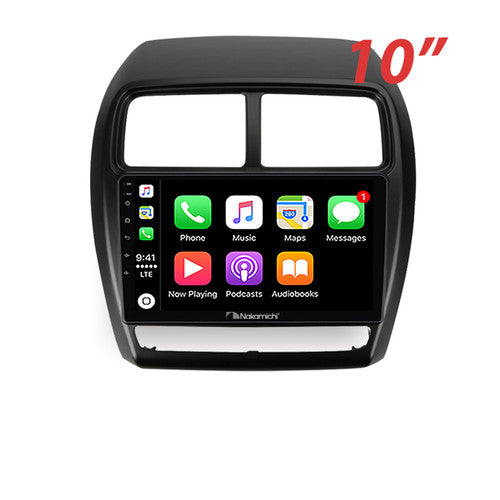

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
