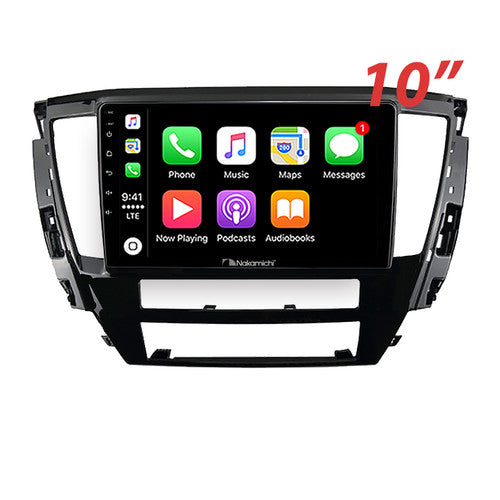

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mitsubishi Pajero Sport 2020+

Compatibility:

• For Mitsubishi Pajero Sport 2020+

Important Notes

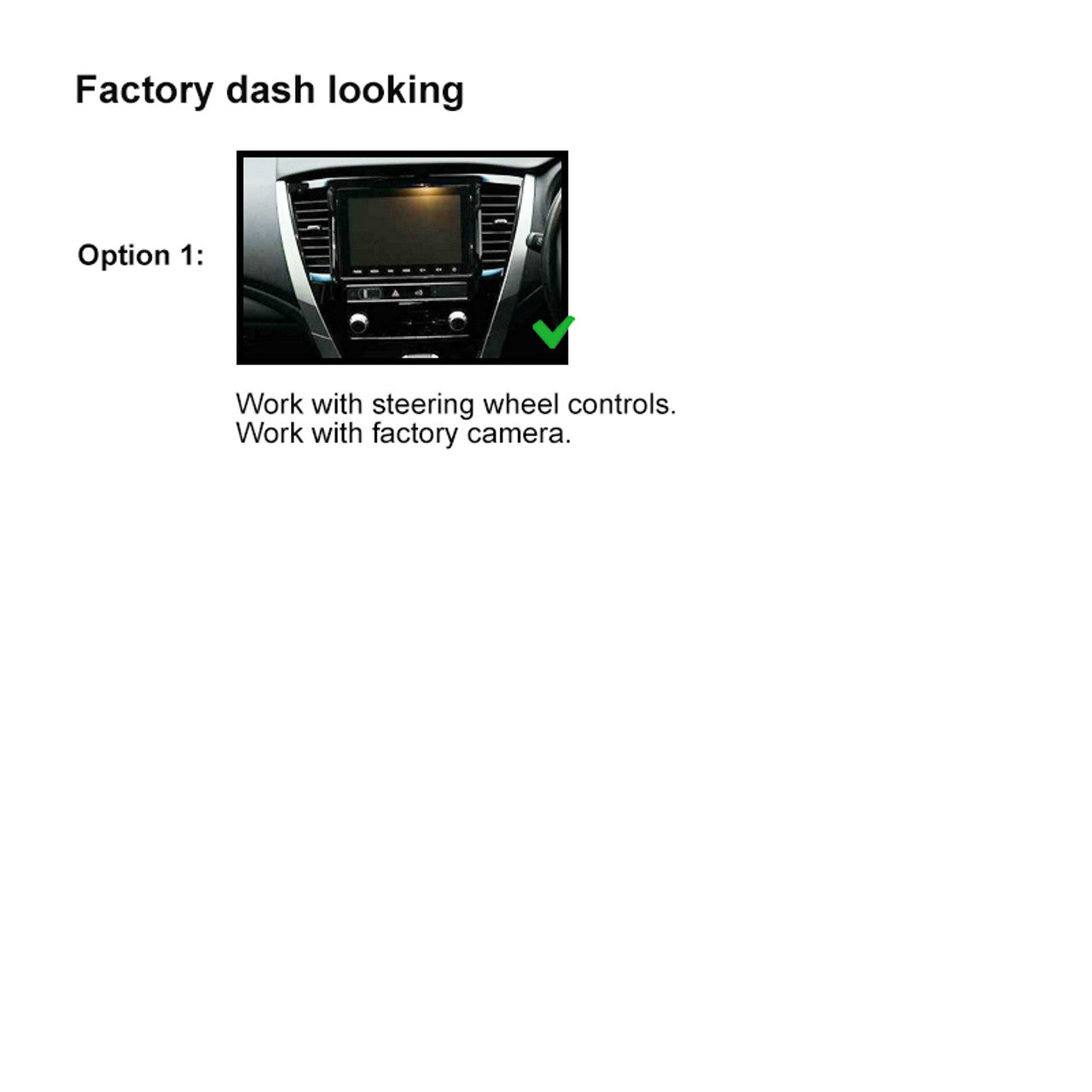

• Fully compatible with steering wheel controls.
• Works with the factory reverse camera.
• If your vehicle is equipped with a factory Rockford Fosgate sound system, an additional harness may be required at an extra cost.
• Please send us a photo of your dashboard with your car's year and model when purchasing, so we can provide the compatible harness.

Key Features

Wireless Apple CarPlay
CarPlay provides a smarter, safer way to use your iPhone while driving. You can wirelessly access directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Android Auto connects your Android phone wirelessly, allowing you to access your phone apps, get navigation, send messages, and make hands-free calls. It’s designed to help you stay focused on the road and enjoy the drive. Just pair your phone, and you’re ready to go!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Left/Right (at the back of the unit)

Video

• Reverse Camera Video Input (R-CAM at the back of the unit)
• Extra Video Input (V-IN at the back of the unit)
• Video Output 1 and 2 (V-OUT1/V-OUT2 at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for Music or Video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessory packages may vary by car model.)

General Specifications

• TFT Screen Size: 10"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
