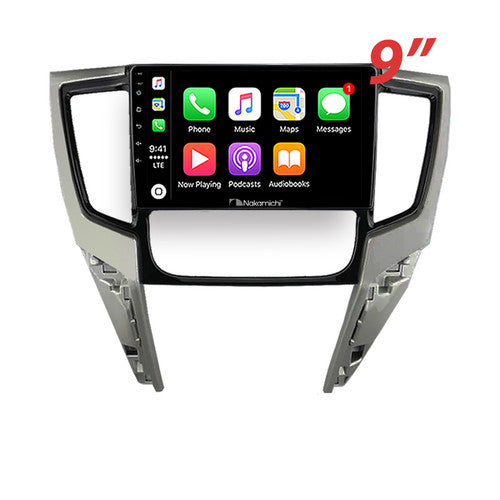

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Mitsubishi Triton Auto A/C 2019-2023 (Large Fascia)

Compatibility:

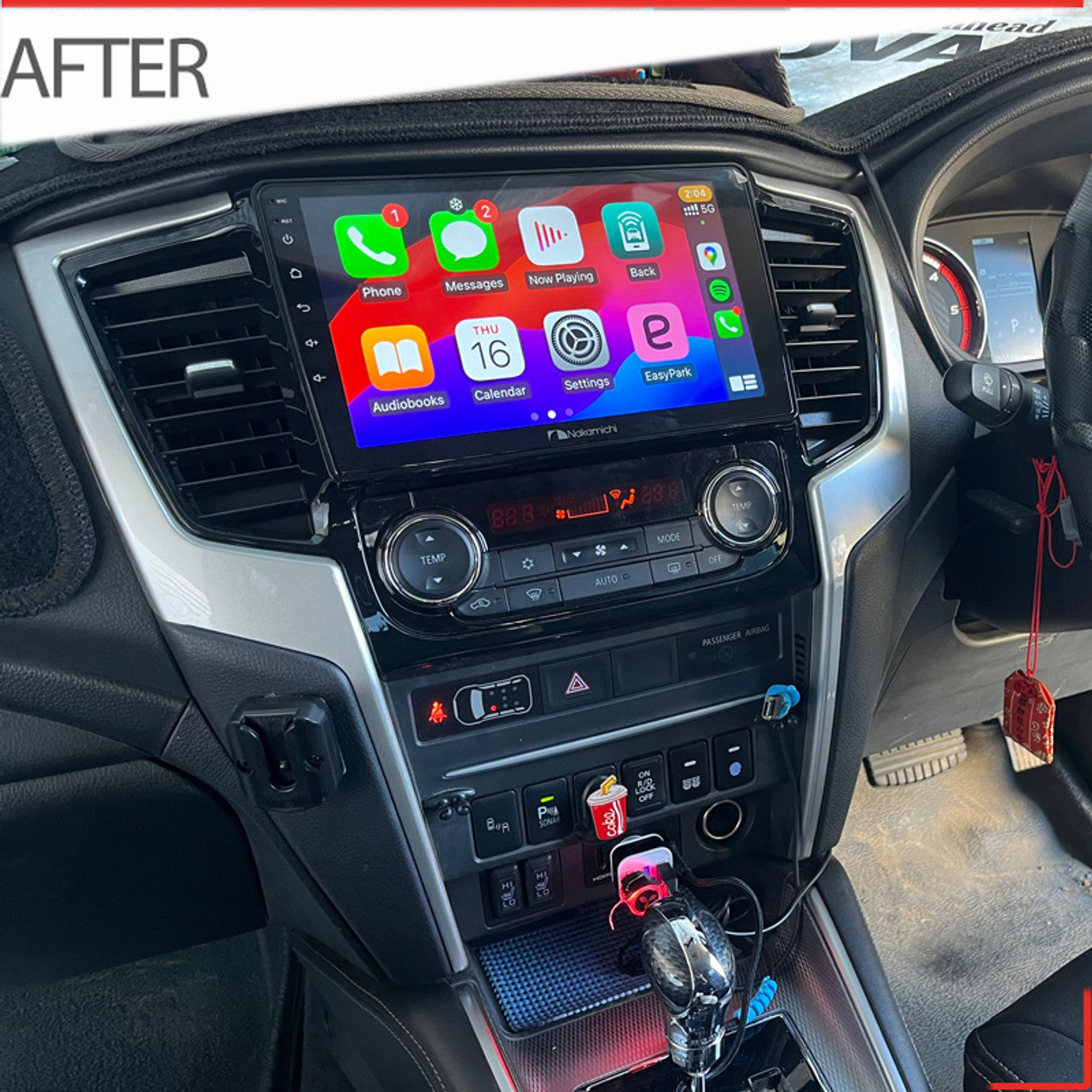

• For Mitsubishi Triton Auto A/C 2019-2023 with Large Fascia

Important Notes

• Fully compatible with steering wheel controls.
• Works with factory reverse camera.
• If the car is equipped with a 360° camera, it will show the standard view only. To adjust the view, an additional module can be purchased at extra cost.

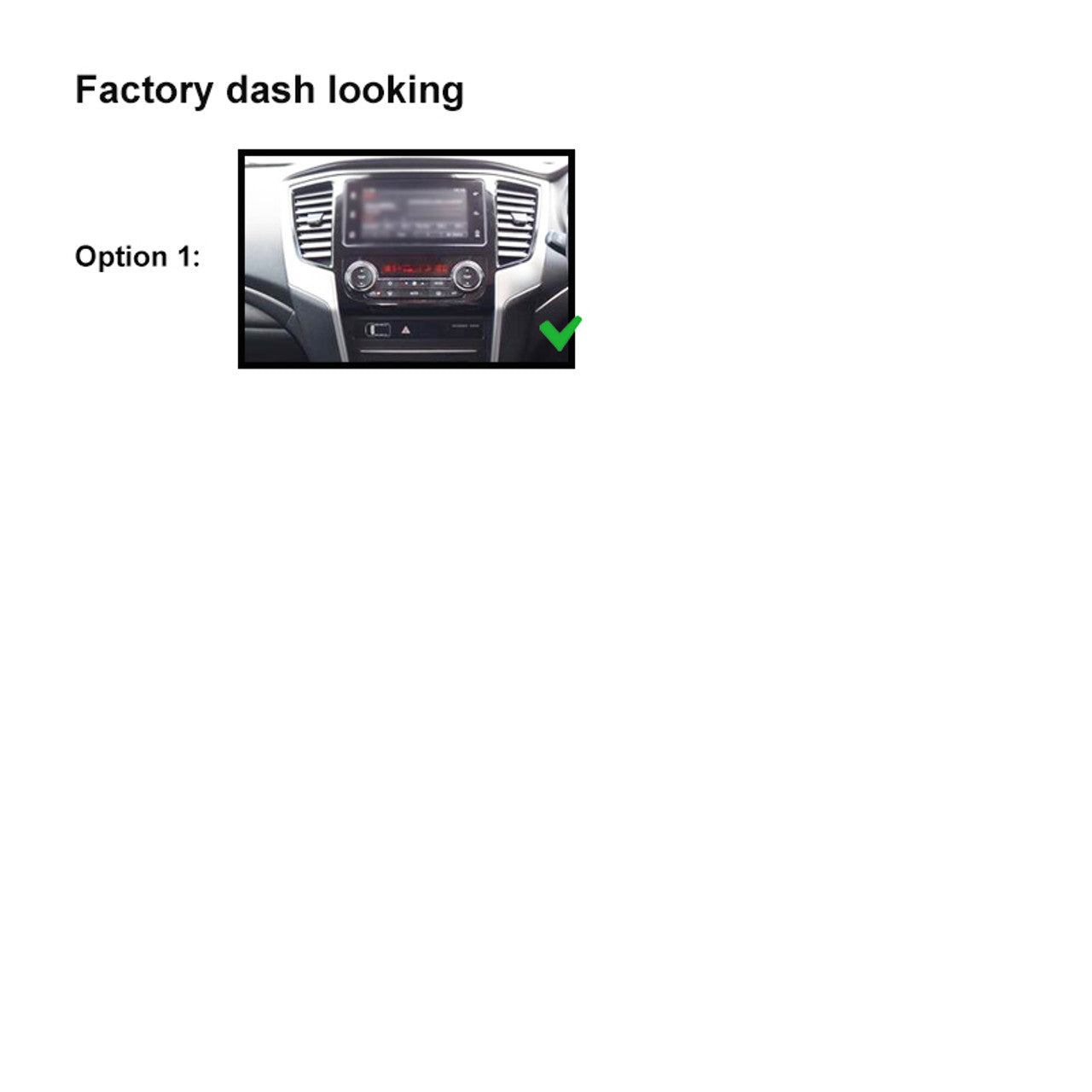

• Please send us a photo of your dashboard with the car year and model when you purchase, so we can send the compatible harness.

Key Features

Wireless Apple CarPlay
CarPlay allows you to connect your iPhone wirelessly, giving you a smarter, safer driving experience. With CarPlay, you can get directions, make calls, send and receive messages, and enjoy your favorite music, all through your car's built-in display. The system also introduces new app categories and customizable wallpapers for the CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands)
With Wireless Android Auto, you can easily pair your Android phone with the car’s display to show your apps, including navigation and communication apps. You can get directions, send messages, and even make hands-free calls. Android Auto makes driving safer and more enjoyable, allowing you to focus on the road.

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Left/Right (at the back of the unit)

Video

• Reverse Camera Video Input (R-CAM at the back of the unit)
• Extra Video Input (V-IN at the back of the unit)
• Video Output 1 and 2 (V-OUT1/V-OUT2 at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for Music or Video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessory packages may vary by car model.)

General Specifications

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
