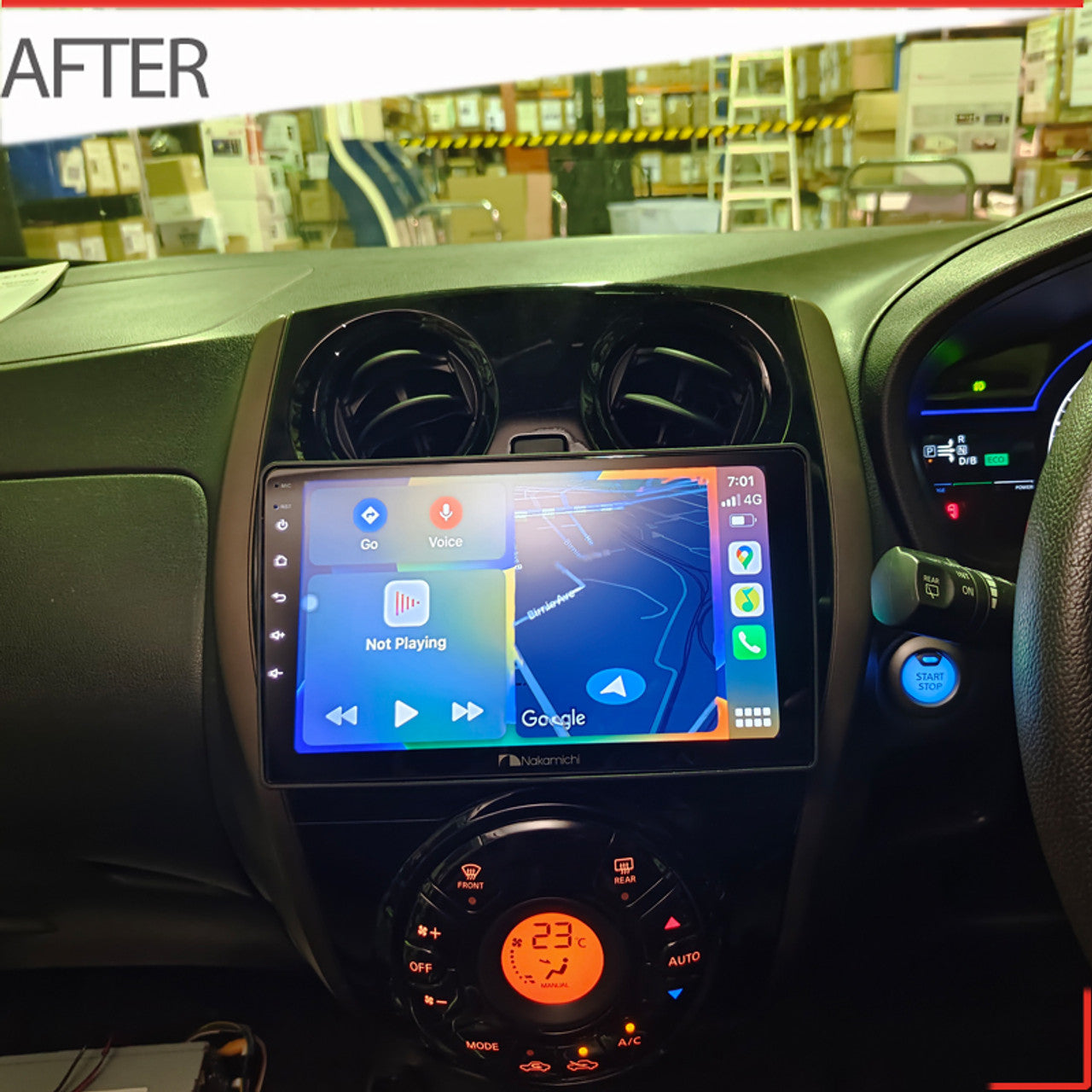

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Note 2018+

Compatibility:

• For Nissan Note 2018+

Important Notes

• Fully compatible with steering wheel controls.
• Factory reverse camera may require modification.
• Please send us a photo of your dashboard, including the car year and model, upon purchase, so we can send the compatible harness.

Key Features

Wireless Apple CarPlay
Experience the ultimate co-pilot with Wireless CarPlay! CarPlay allows you to use your iPhone without a cable while driving. You can access maps, make calls, send and receive messages, and enjoy your favorite music — all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Wirelessly connect your phone and hit the road. Android Auto lets you display your phone’s apps on the car’s screen. Get driving directions, send texts, make hands-free calls, and more. It’s designed to keep you focused on the road while having fun. Simply plug in and go!

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Maximum range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio

• Max power: 4x50W
• Pre-output voltage: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX Left/Right (at the back of the unit)

Video

• Reverse Camera Video Input (R-CAM at the back of the unit)
• Extra Video Input (V-IN at the back of the unit)
• Video Output 1 and 2 (V-OUT1/V-OUT2 at the back of the unit)

USB Interface

• CP/AA: USB connection for CarPlay / Android Auto (at the back of the unit)
• USB: USB connection for Music or Video (at the back of the unit)

Other Inputs at the Back of the Unit

• ANT: Radio Antenna Input
• MIC: Microphone Input

RCA Cable

• FL_OUT: Front Left Speaker Output
• FR_OUT: Front Right Speaker Output
• RL_OUT: Rear Left Speaker Output
• RR_OUT: Rear Right Speaker Output
• SUB_OUT: Subwoofer Output
• UART_RX/UART_TX: Canbus Connector
• PARK: Parking Brake
• AMP: Amplifier Control

Package Includes

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x User Manual
• 1 x Microphone
• 2 x USB Cables
  (Note: Accessory packages may vary by car model.)

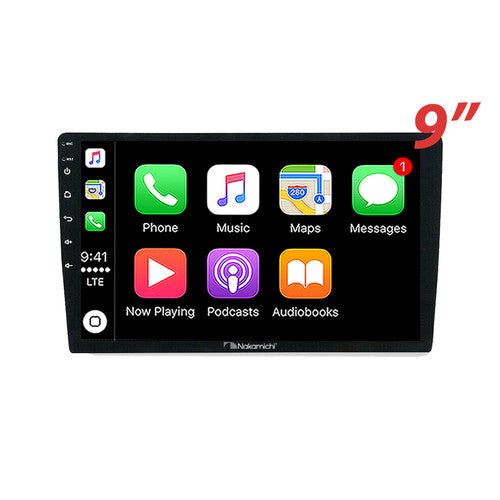

General Specifications

• TFT Screen Size: 9"
• Display Resolution: 1240×600
• Contrast Ratio: 500
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Readable/chargeable: (5±0.25V/1A)
• Video Format Support: H264/MP4/AVI/MKV/FLV
• Audio Format Support: MP3/APE/AAC/FLAC
