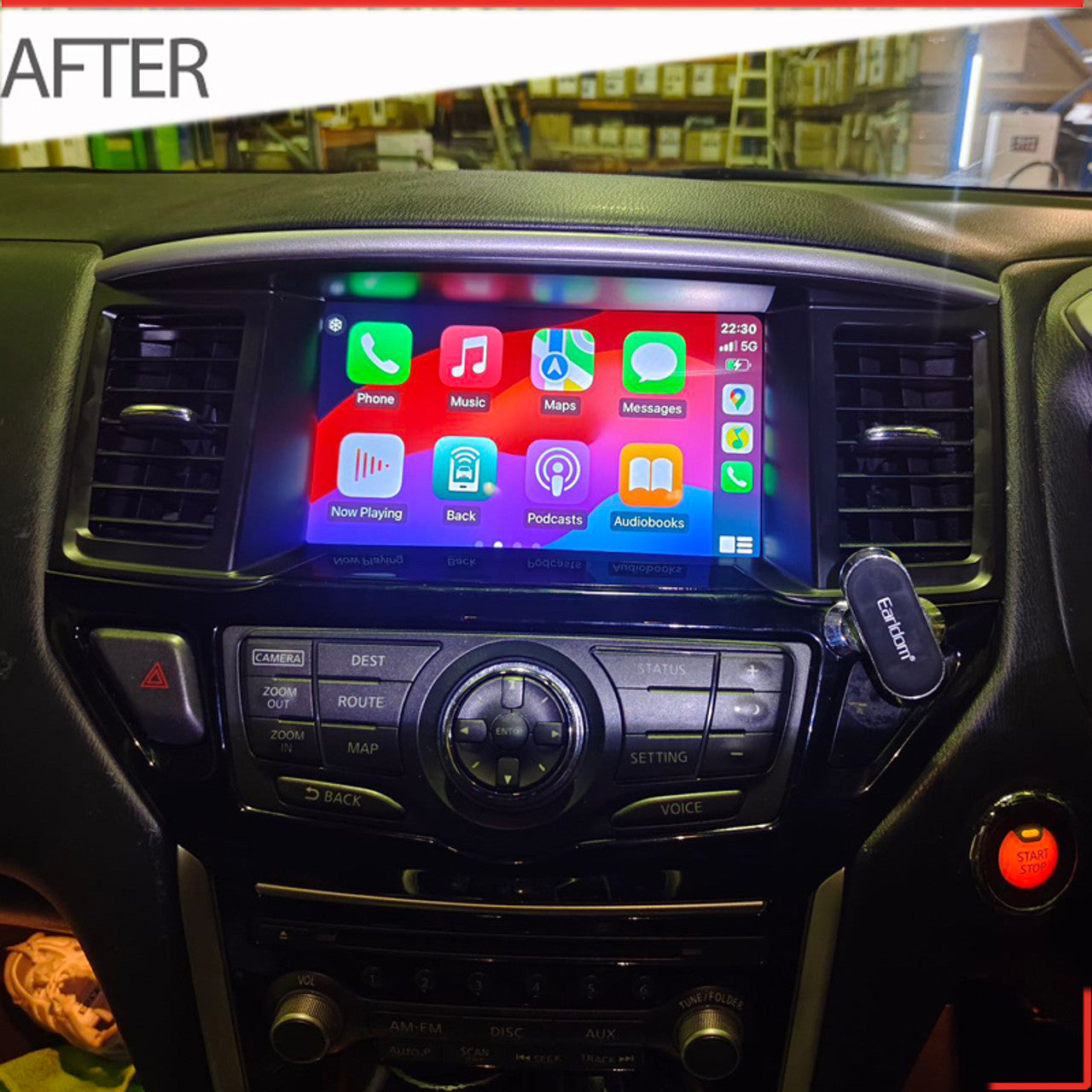

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Nissan Pathfinder (2013-2016)

Compatibility:

• For Nissan Pathfinder (2013-2016)

Important Notes:

• System: Nakamichi Android
• Steering Wheel Control: Compatible

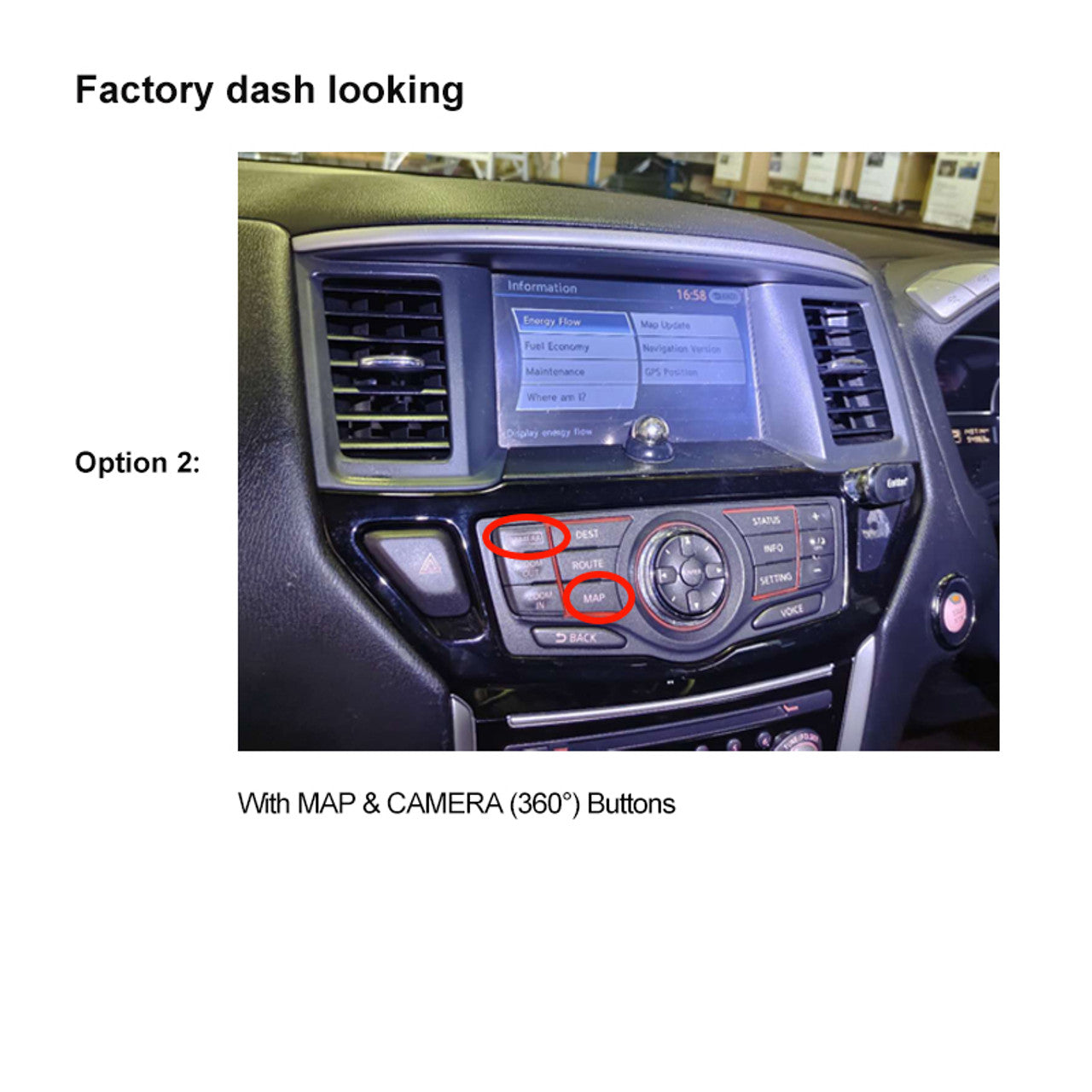

• Factory Camera & Buttons:
  Option 1: Compatible with factory "MAP" & "CAMERA" 360° buttons and factory camera.
  Option 2: For other dash models, compatibility is being tested. Confirmation pending.
• Dash Photo: Please send a photo of your dashboard with car year and model at the time of purchase to ensure the correct harness is sent.

Main Features:

PhoneLink Operation:

• iPhone Connection (Wireless CarPlay):
  Wirelessly connect your iPhone for easy access to apps such as maps, calls, messages, and music. All without the need for cables, making your drive smarter and safer.

• Android Phone Connection (Wired for Some Brands):
  Pair your Android phone without a cable or via USB to bring your apps onto the car’s display. Get directions, send messages, and make hands-free calls, all with ease.

Built-in GPS:

• Preloaded GPS data with the option to update or purchase additional maps via the Google Play Store.

Built-in Wi-Fi & 4G Support:

• Connect to a Wi-Fi network or insert a SIM card to use 4G connectivity.

Bluetooth 5.0 + EDR:

• Frequency: 2.4GHz
• Max Range: 5m

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4x50W
• Pre-output Voltage: 4V/10KΩ (Impedance ≤600Ω)
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left & Right
• Outputs: Front/Rear Speakers, Subwoofer, Amplifier Control

Video Inputs:

• Reverse Camera Input (B.CAMERA)
• Front Camera Input (F.CAMERA)
• Extra Video Input (CVBS)

USB Interface:

• 4Pin USB: Connection for CarPlay / Android Auto
• 6Pin USB: Connection for Music or Video

Other Inputs (Rear):

• Radio Antenna Input
• GPS Antenna Input
• 5G Wi-Fi
• 4G-/+
• External Microphone Port
• Brake Detection
• Canbus Box Interface

Package Includes:

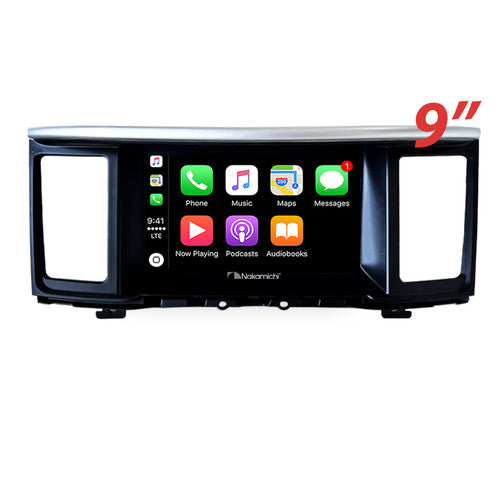

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x Wi-Fi/BT/Camera Cable
• 1 x Rear Left/Right Speaker Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (*Accessories may vary depending on the car model.)

General Specifications:

• Screen Size: 9” TFT
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB | ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500nit
• Operating Voltage: 14.4V (10.5-16V)
• USB Output: 5±0.25V/1A
• Video Format: H264/MP4/AVI/MKV/FLV
• Audio Format: MP3/APE/AAC/FLAC
