Nakamichi Wireless Apple CarPlay & Android Auto Solution for Peugeot 508 2011-2018

Compatibility:

• for Peugeot 508 2011-2018

Important Notes:

• Nakamichi Android System
• Compatible with Steering Wheel Controls.
• Not compatible with car seat heaters.

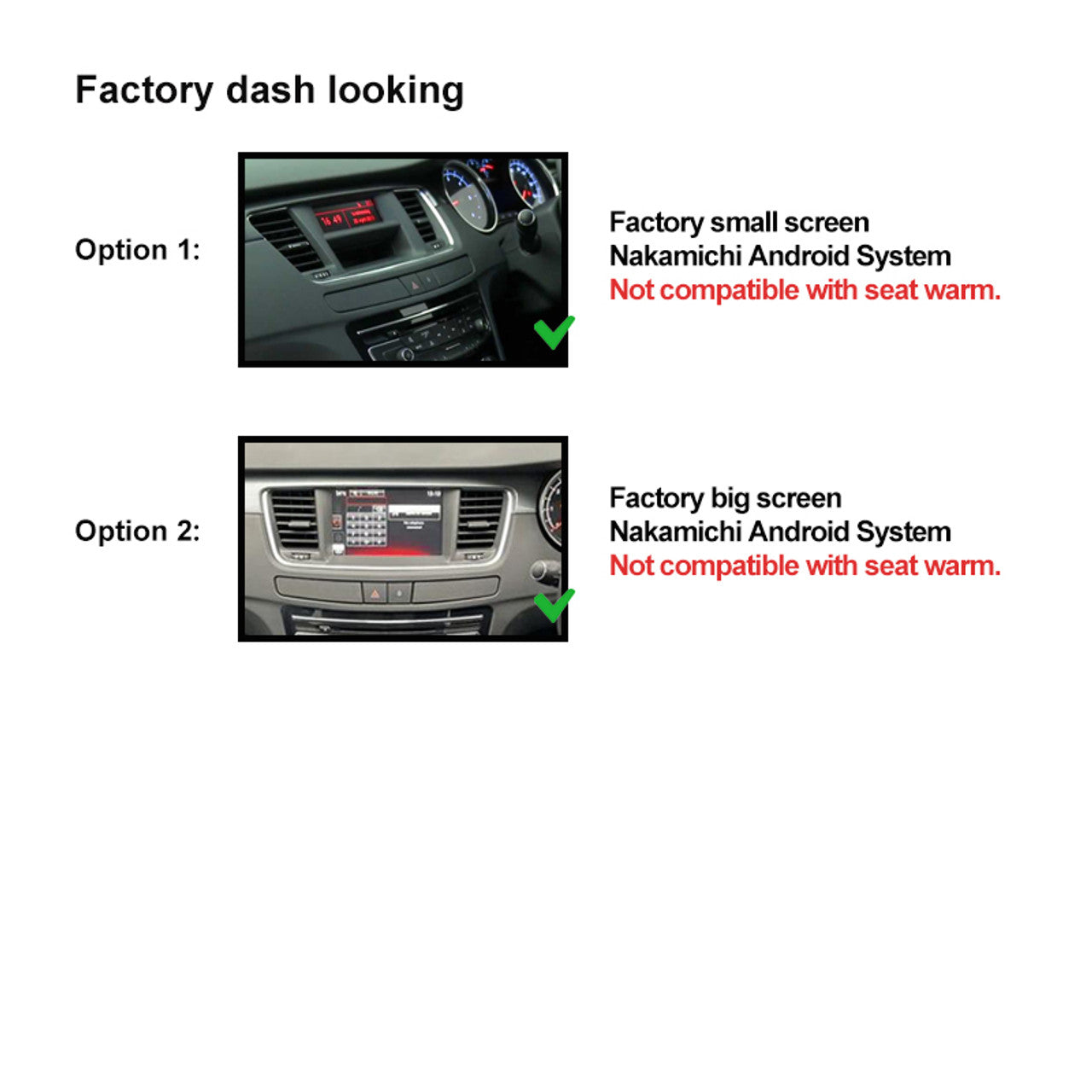

• Please send a photo of your dashboard with the car year and model when purchasing, to ensure we send you the correct harness.

Main Features:

PhoneLink Operation

iPhone Connection:
The Ultimate Co-Pilot. Enjoy iPhone apps wirelessly! PhoneLink allows you to use your iPhone safely and smarter while driving. You can get directions, make calls, send and receive messages, and listen to your favorite music, all on your car's display.

Android Phone Connection (Wired for some specific phone brands):
Pair your phone without a cable. Once connected, your Android apps appear on the screen—just like that. Tap to get directions, make hands-free calls, or send a text. Android Auto helps you stay focused on the road and enjoy your drive.

Built-in GPS:
Preload GPS data, update, or purchase preferred data from Google Playstore.

Built-in WiFi & 4G Support:
Connect your stereo to a Wi-Fi network, or insert a SIM card to use the 4G connection for internet access.

Bluetooth:

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX IN_L: Audio left input
• AUX IN_R: Audio right input
• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• SUB_OUT: Subwoofer output
• AMP_POW: Amplifier control
• RL-OUT: Rear left speaker output
• RR-OUT: Rear right speaker output

Video Features:

• Reverse Camera Video Input (B.CAMERA)
• Front Camera Input (F_CAMERA)
• Extra Video Input (CVBS)

USB Interface:

• 4PIN USB: USB connection for PhoneLink (iPhone or Android)
• 6PIN USB: USB connection for music or video

Other Inputs:

• Radio: Radio antenna input
• GPS: GPS antenna input
• 5G WiFi
• 4G-/+
• MIC: External microphone port
• BRAKE: Brake detection
• Can RX/TX: Canbus box interface

Package Contents:

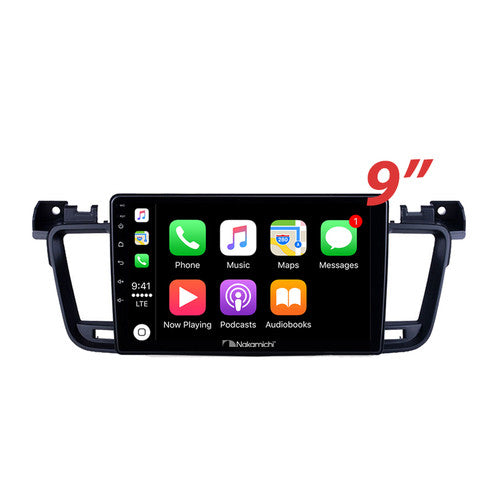

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables

Note: The accessory package may vary for different car models. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display resolution: 1280x720 IPS
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
