Nakamichi Wireless Apple CarPlay & Android Auto Solution for Skoda Octavia 2007-2013

Compatibility:

• For Skoda Octavia 2007-2013

Important Notes

• Fully compatible with steering wheel controls.
• Not compatible with factory amplified systems.

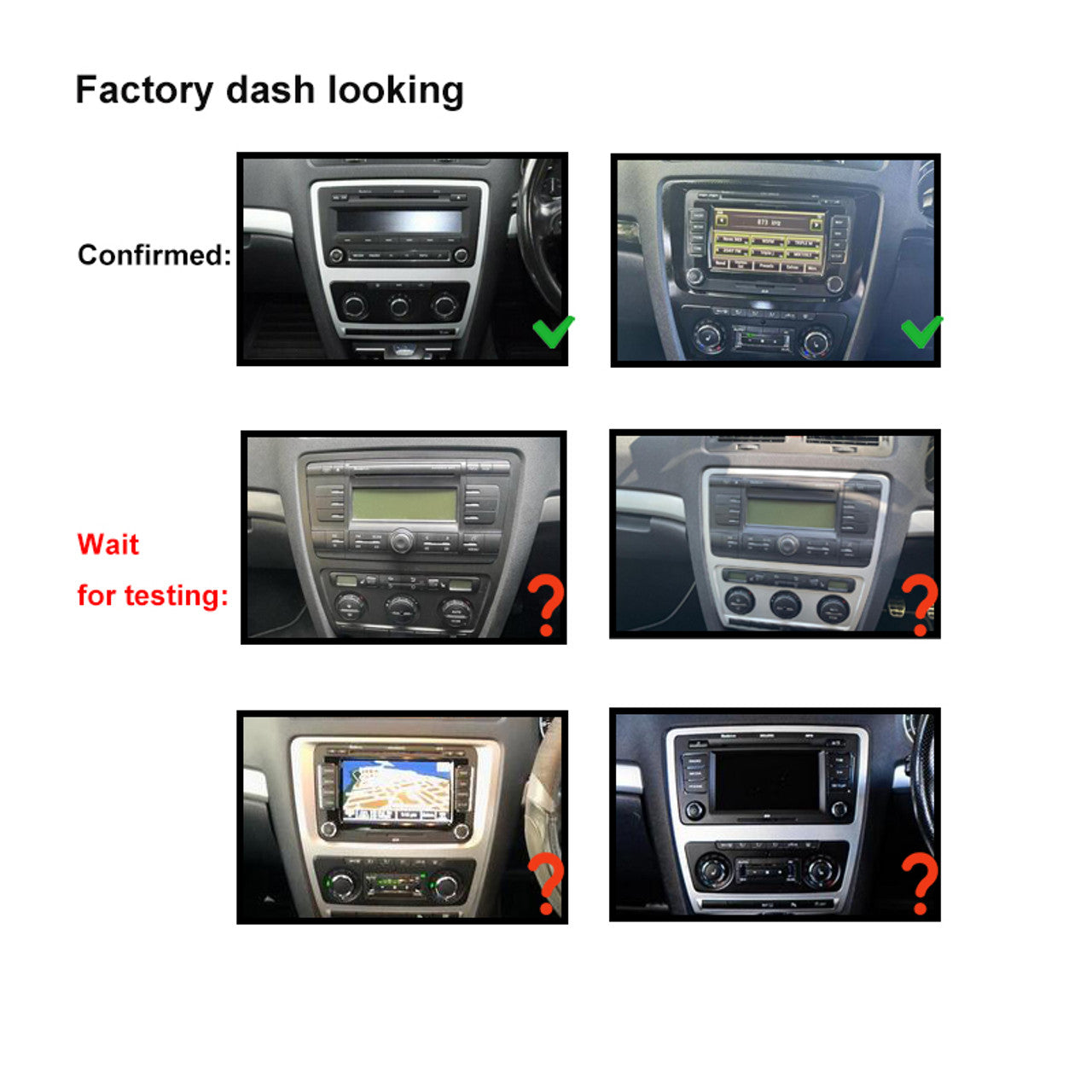

• Please send a photo of your dashboard with the car's year and model upon purchase so we can send the compatible harness.

Key Features

Wireless Apple CarPlay
The ultimate co-pilot. Enjoy CarPlay wirelessly to get directions, make calls, send messages, and play your favorite music—all on your car’s display. With iOS, CarPlay introduces new app categories and customizable wallpaper for a personalized experience.

Wireless Android Auto (Wired for some phone brands)
Pair your Android phone wirelessly with your car’s display. Your Android apps appear on-screen, so you can get driving directions, send texts, or make hands-free calls. Android Auto helps you stay focused on the road while having fun on the go!

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications

• Max power: 4x50W
• Pre-output (V): 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω
• AUX inputs (Rear): Left & Right

Video Inputs & Outputs

• Reverse camera video input
• Extra video input (V-IN)
• Video output 1 & 2 (V-OUT)

USB Connections

• USB for CarPlay/Android Auto
• USB for music or video playback

Other Inputs

• Radio antenna input
• Microphone input

Package Includes

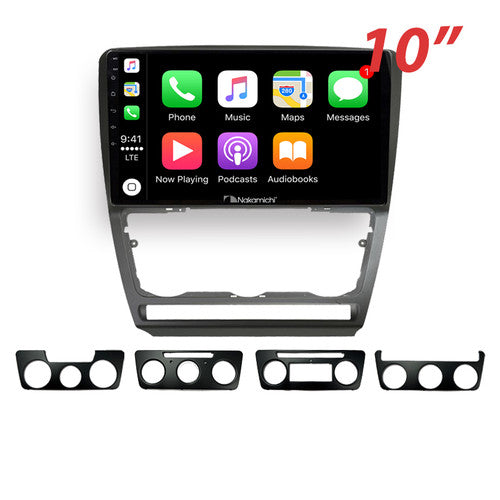

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables
  (Note: Accessories may vary depending on car model.)

General Specifications

• Screen Size: 10" TFT
• Resolution: 1240x600
• Brightness: 500 nits
• Operating Voltage: 14.4V (range: 10.5-16V)
• USB Output: 5V/1A
• Supported Video Formats: H264/MP4/AVI/MKV/FLV
• Supported Audio Formats: MP3/APE/AAC/FLAC
