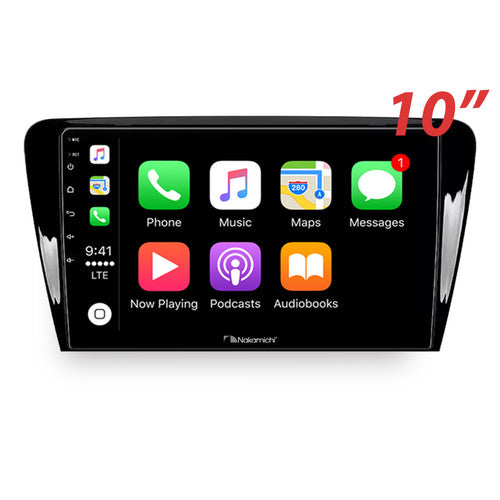

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Skoda Octavia 2014-2017

Compatibility:

• For Skoda Octavia 2014-2017.

Notice:

• Nakamichi Android System.
• Compatible with steering wheel controls.

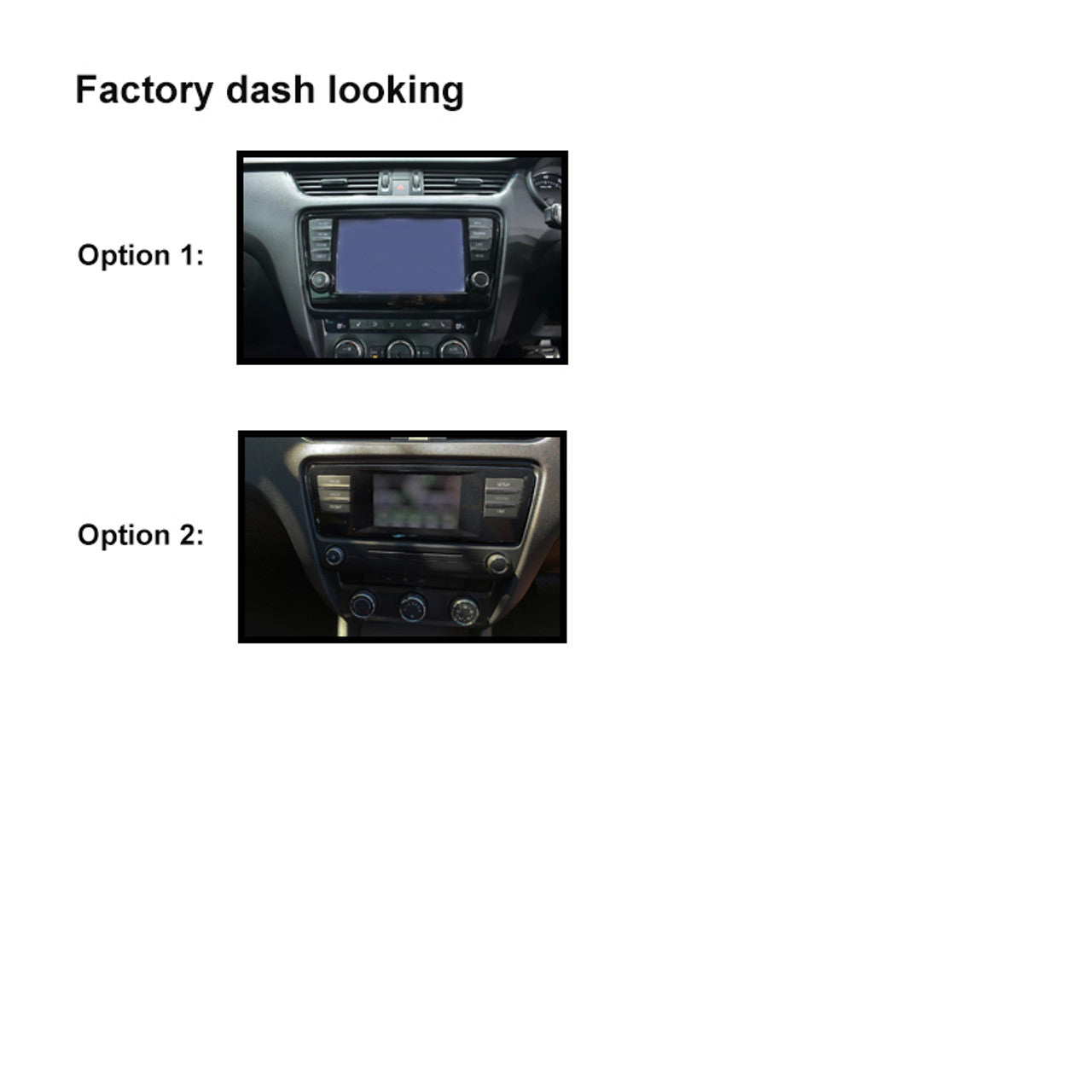

• Please send us a photo of your dashboard along with the car's year and model when purchasing, so we can send you the correct harness.

Main Features:

PhoneLink Operation

iPhone Connection:
The ultimate co-pilot. Enjoy iPhone apps without a cable. PhoneLink is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display.

Android Phone Connection (wired for some specific phone brands):
Pair your phone wirelessly, then hit the road. Connect your phone to the car display, and your phone’s apps show up onscreen instantly. Tap to get directions, make hands-free calls, and stay connected. Just plug in and go!

Built-in GPS:
Preload GPS data, or update/purchase additional maps through the Google Play Store.

Built-in WiFi & 4G Support:
Connect your stereo to a WiFi network, or insert a SIM card for 4G connectivity.

Bluetooth:
Communication system BT 5.0 + EDR

• Frequency band: 2.4GHz
• Max range: 5 meters

Radio:

• FM Frequency: 87.5-108.0MHz
• AM Frequency: 522-1620kHz
• Presets: 18 FM, 12 AM

Audio Input/Output:

• Max Power: 4×50W
• Pre-output Voltage: 4V/10KΩ
• Pre-output Impedance: ≤600Ω
• Speaker Impedance: 4-8Ω
• AUX Inputs: Left and Right
• RCA Outputs for Front Left, Front Right, Rear Left, Rear Right, and Subwoofer
• Amplifier Control Output

Video:

• Reverse Camera Input
• Front Camera Input
• Extra Video Input

USB Interface:

• 4PIN USB: Connection for PhoneLink (iPhone or Android)
• 6PIN USB: Connection for Music or Video

Other Inputs:

• Radio Antenna Input
• GPS Antenna Input
• 5G WiFi
• 4G/+-
• External Microphone Port
• Brake Detection Input
• Canbus Box Interface

Package Included:

• 1 x Nakamichi Head Unit with Fascia
• 1 x Main Harness
• 1 x RCA Cable
• 1 x WiFi/BT/Camera Cable
• 1 x RL/RR Cable
• 1 x Microphone
• 1 x 4G Antenna
• 1 x GPS Antenna
• 1 x User Manual
• 2 x USB Cables
  (Note: The accessory package may vary based on the car model. It is normal if some parts are different from the listing.)

General Specifications:

• TFT Screen Size: 10"
• System: NK 12.0
• CPU: 8-Core Cortex-A55
• RAM: 4GB
• ROM: 32GB
• Display Resolution: 1280x720 IPS
• Brightness: 500 nits
• Operating Voltage: 14.4V (with a range of 10.5-16V)
• USB Output: 5V/1A
• Video Formats Supported: H264, MP4, AVI, MKV, FLV
• Audio Formats Supported: MP3, APE, AAC, FLAC
