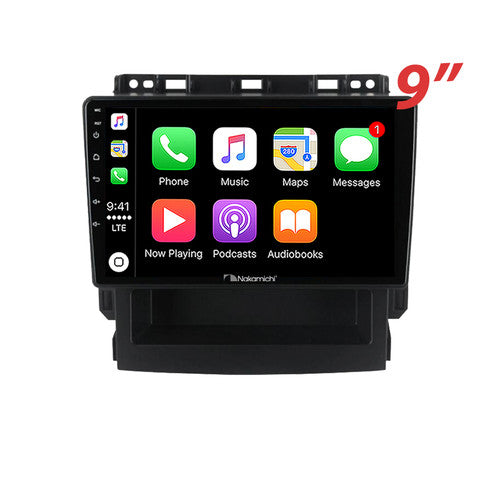

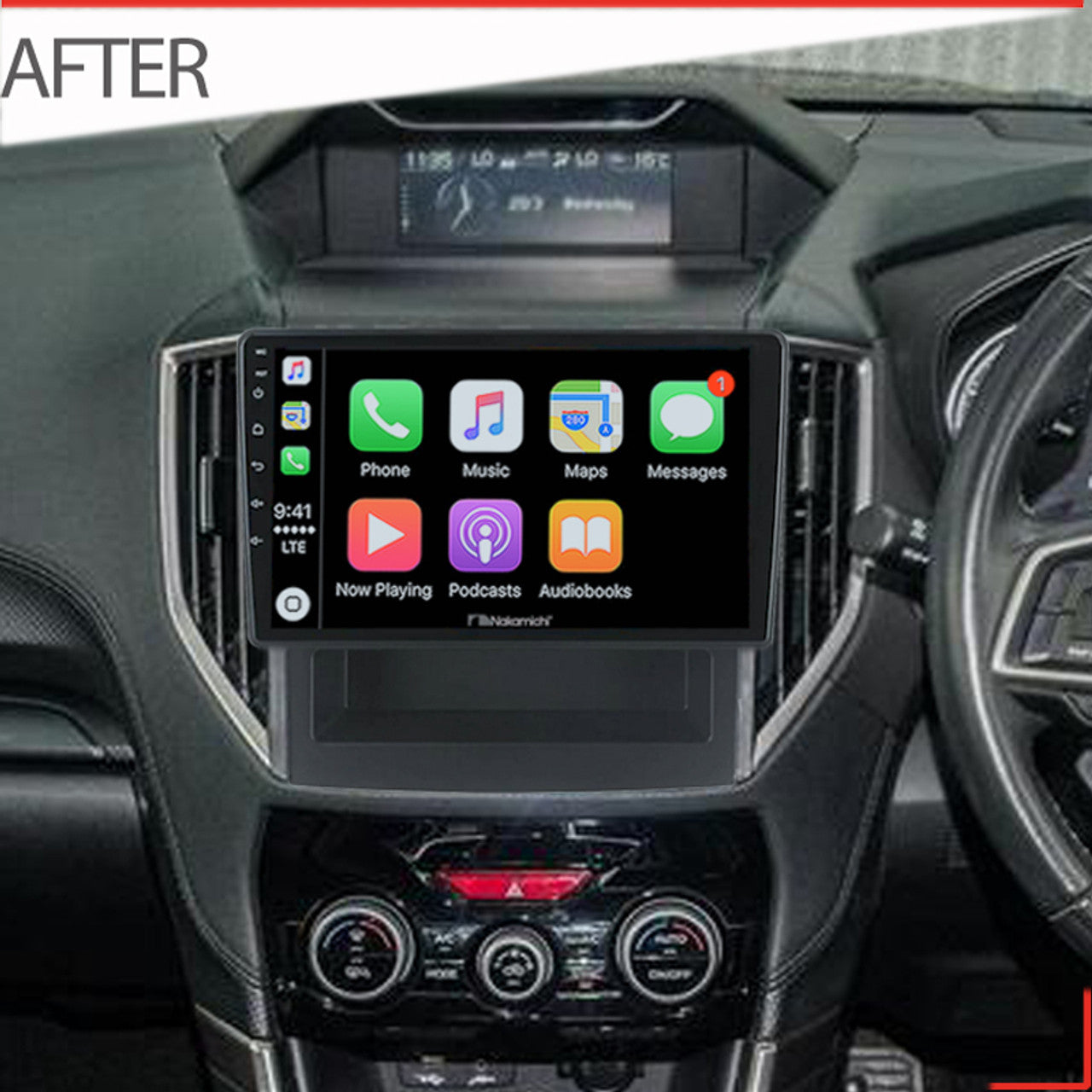

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Subaru Forester 2018+, Impreza 2017+, XV 2017+

Compatible Models:

• Compatible with Subaru Forester 2018+
• Compatible with Subaru Impreza 2017+
• Compatible with Subaru XV 2017+

Important Notes:

• Compatible with Steering Wheel Controls.

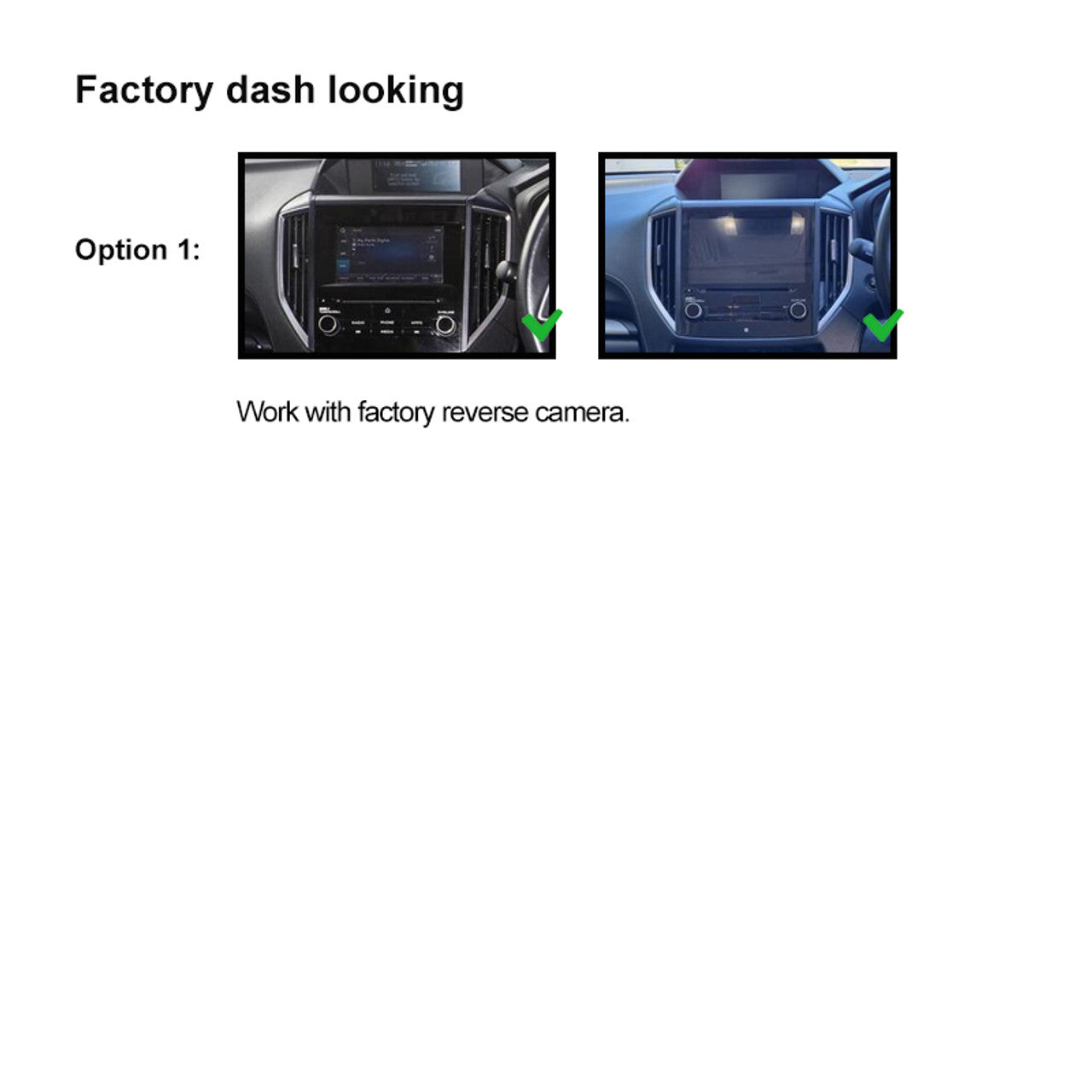

• Works with factory reverse camera.
• If your car has a factory amplified system such as Harman Kardon, an extra cost will be added for the specific harness.
• Please send a photo of your dashboard, along with the car year and model, when purchasing to ensure we send you the compatible harness.

Key Features:

Wireless Apple CarPlay
Enjoy CarPlay without cables! CarPlay is a smarter, safer way to use your iPhone while driving. Get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car's built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Wirelessly pair your phone with the car display. Your Android apps will appear onscreen, making it easy to get driving directions, send messages, make hands-free calls, and more—all while keeping your focus on the road.

Bluetooth

• Communication system: BT 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music or video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Accessory packages may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
