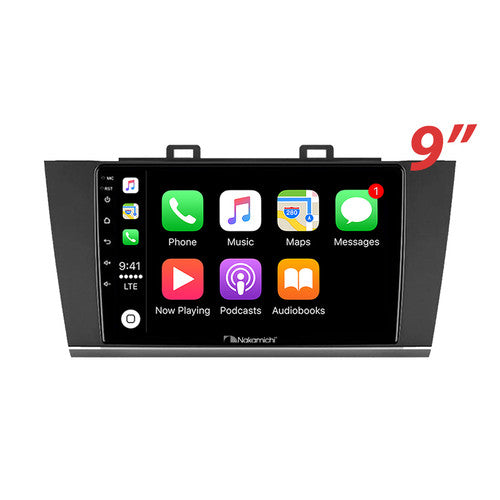

Nakamichi Wireless Apple CarPlay & Android Auto Solution for Subaru Liberty Outback 2015+

Compatibility:

• for Subaru Liberty Outback 2015+ models.

Important Notes:

• Supports steering wheel controls.

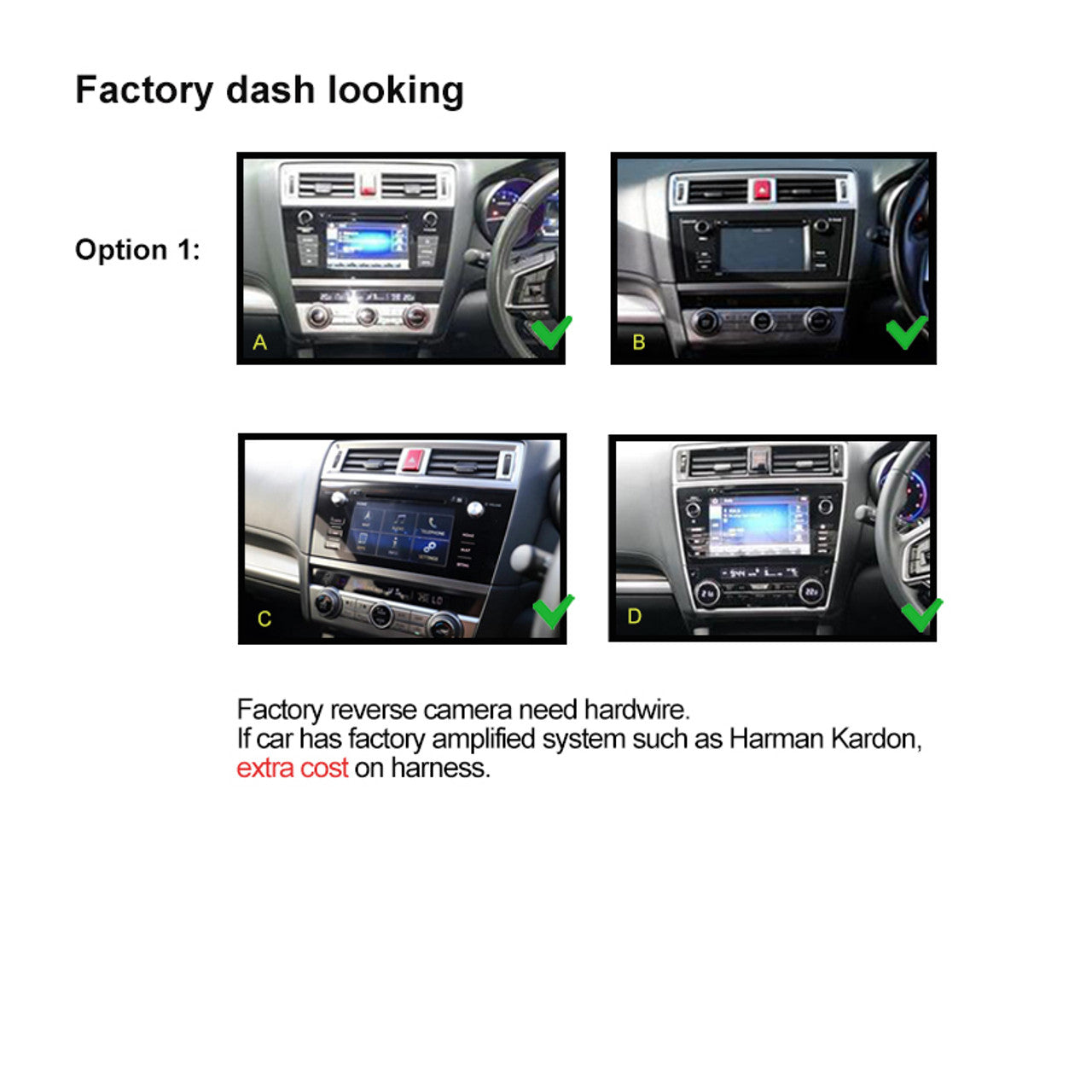

• Factory reverse camera requires hardwiring.
• If your car has a factory amplified system such as Harman Kardon, an additional cost for the harness applies.
• Please send a photo of your car’s dashboard along with the year and model when purchasing to ensure we send you the correct harness.

Key Features:

Wireless Apple CarPlay
CarPlay without the hassle of cables! Experience a smarter and safer way to use your iPhone while driving. CarPlay allows you to get directions, make calls, send and receive messages, and enjoy your favorite music—all on your car’s built-in display. With iOS, CarPlay introduces new app categories and customizable wallpapers for your CarPlay Dashboard.

Wireless Android Auto (Wired for some specific phone brands)
Connect your Android device wirelessly to your car display. Your Android apps will appear onscreen instantly. You can easily get driving directions, send hands-free texts, and control your music—all while focusing on the road.

Bluetooth

• Bluetooth version: 5.0 + EDR
• Frequency band: 2.4GHz
• Max range: 5m

Radio Features:

• FM Frequency: 87.5-108.0 MHz
• AM Frequency: 522-1620 kHz
• Presets: 18 FM, 12 AM

Audio Specifications:

• Max Power: 4 x 50W
• Pre-output: 4V/10KΩ
• Pre-output impedance: ≤600Ω
• Speaker impedance: 4-8Ω

Video Capabilities:

• Reverse Camera Video Input (R-CAM)
• Extra Video Input (V-IN)
• Video Outputs: V-OUT1 & V-OUT2

USB Interface:

• CP/AA: USB connection for CarPlay / Android Auto
• USB: For music and video

Back Unit Inputs:

• ANT: Radio antenna input
• MIC: Microphone input

RCA Cable Connections:

• FL_OUT: Front left speaker output
• FR_OUT: Front right speaker output
• RL_OUT: Rear left speaker output
• RR_OUT: Rear right speaker output
• SUB_OUT: Subwoofer output
• UART_RX/UART_TX: Canbus connector
• PARK: Parking brake
• AMP: Amplifier control

Package Contents:

• 1 x Nakamichi head unit with fascia
• 1 x Main harness
• 1 x RCA cable
• 1 x User manual
• 1 x Microphone
• 2 x USB cables

Note: Accessory packages may vary depending on the car model. Variations are normal and do not affect compatibility.

General Specifications:

• TFT screen size: 9”
• Display resolution: 1240×600
• Contrast ratio: 500
• Brightness: 500nit
• Operating voltage: 14.4V (Range: 10.5-16V)
• USB charging/readable: (5±0.25V/1A)
• Supported video formats: H264, MP4, AVI, MKV, FLV
• Supported audio formats: MP3, APE, AAC, FLAC
